Quad 2 Input AND Gate, 74AHC08XTS14G Replace 74AHC08PW
74AHC08XTS14G
74AHC08XTS14G.pdf
74AHC08XTS14G.pdfFEATURES
• Supply Voltage Range: 2.0V to 5.5V
• Over-Voltage Tolerant Inputs up to 5.5V
• CMOS Low Power Dissipation
• Balanced Propagation Delays
• All Inputs with Schmitt-Trigger Action
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-14 Package

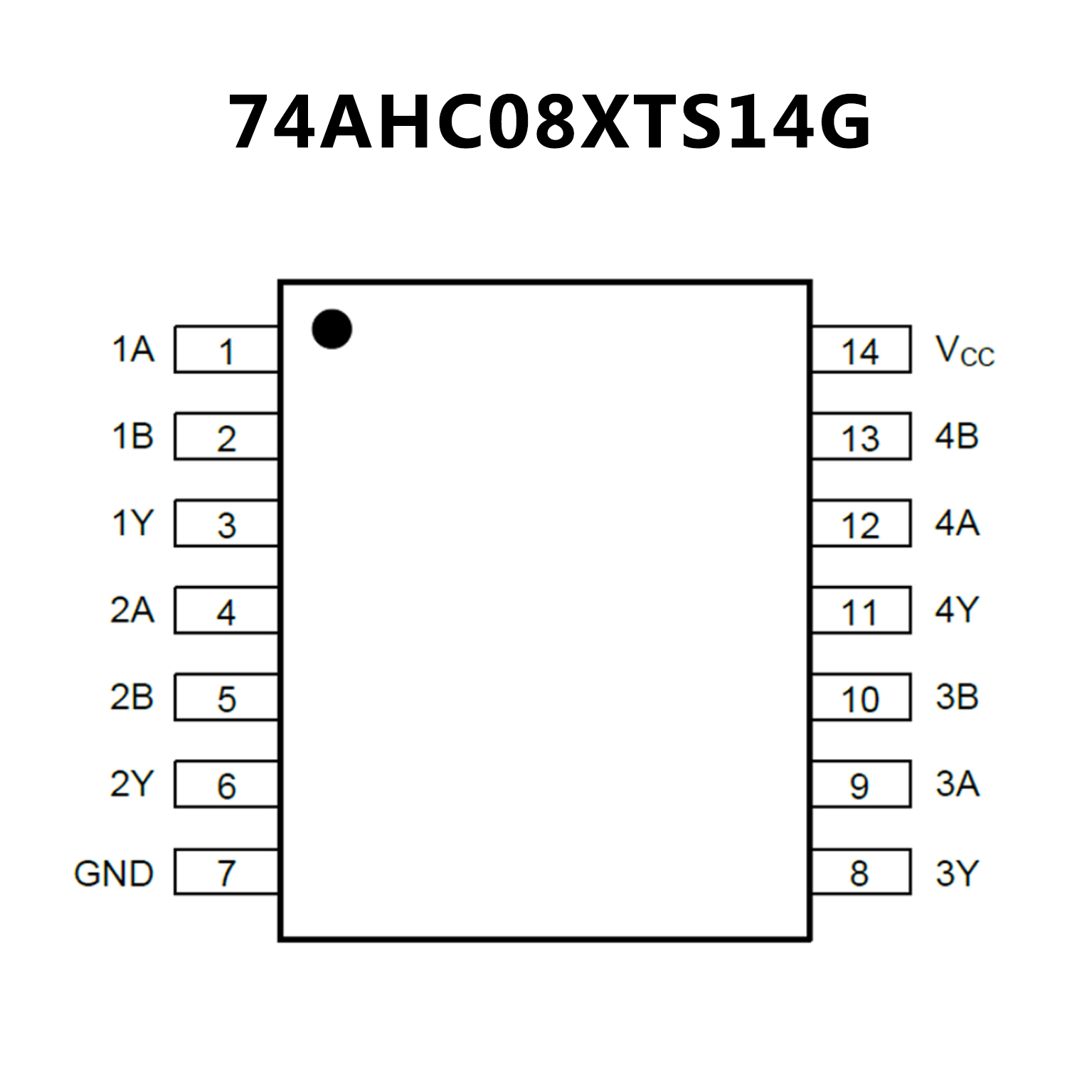

PIN CONFIGUTION
优势替代
FEATURES
• Wide supply voltage range from 2.0 V to 5.5 V
• Input levels:
• For 74AHC08: CMOS level
• For 74AHCT08: TTL level
• Balanced propagation delays
• All inputs have a Schmitt-trigger action
• Overvoltage tolerant inputs to 5.5 V
• High noise immunity
• CMOS low power dissipation
• ESD protection:
• HBM EIA/JESD22-A114E exceeds 2000 V
• MM EIA/JESD22-A115-A exceeds 200 V
• CDM EIA/JESD22-C101C exceeds 1000 V
• Latch-up performance exceeds 100 mA
per JESD 78 Class II Level A
• Multiple package options

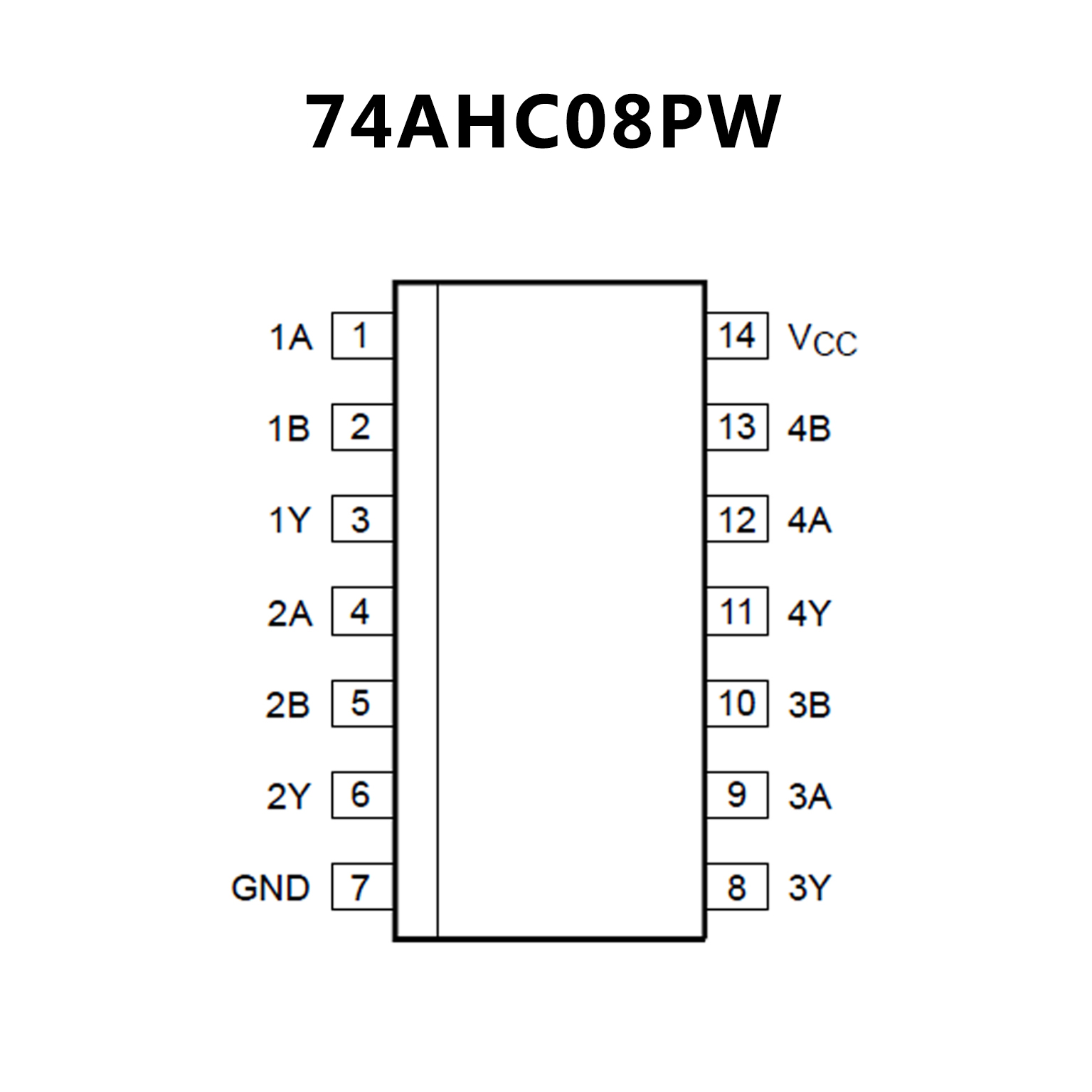

PIN CONFIGUTION
