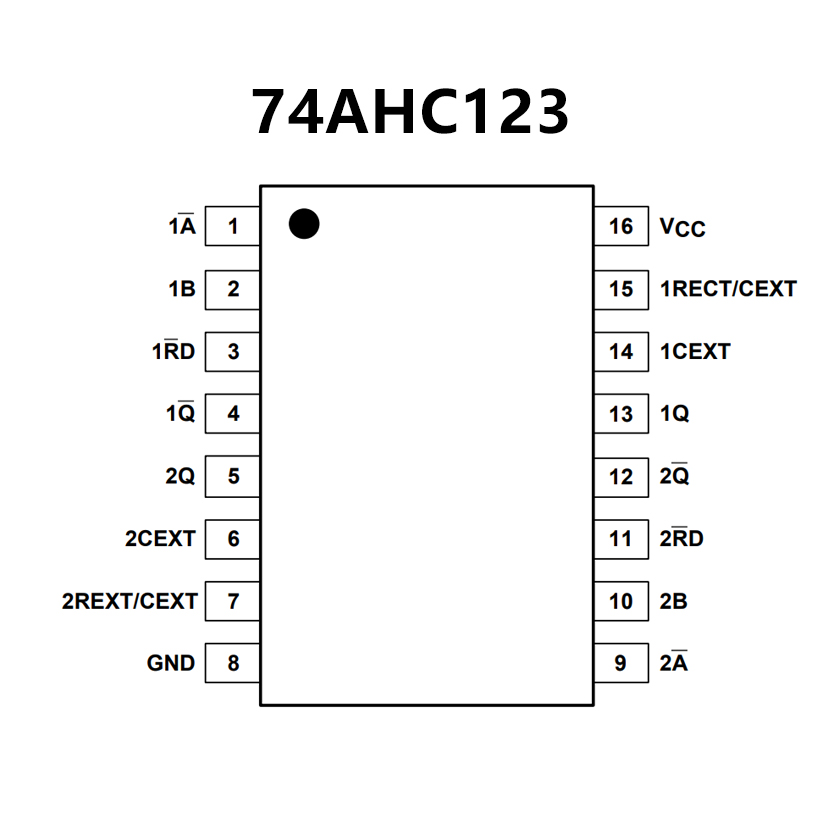

74AHC123XS16G.pdf• All Inputs Have a Schmitt-Trigger Action
• Inputs Accept Voltages Higher than VCC
• Edge-Triggered from Active High or Active Low
Gated Logic Inputs
• Retriggerable for Very Long Pulses up to 100%
Duty Factor
• Direct Reset Terminates Output Pulse
• Operates with CMOS Input Levels
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-16 Package
• High speed: tpd = 25 ns (typ.) at VCC = 5 V
• Low power dissipation
Standby state: ICC = 4 μA (max) at Ta = 25°C
Active state: ICC = 700 μA (max) at Ta = 25°C
• High noise immunity: VNIH = VNIL = 28% VCC (min)
• Output drive capability: 10 LSTTL loads
• Symmetrical output impedance: |IOH| = IOL = 4 mA (min)
• Balanced propagation delays: tpLH −∼ tpHL
• Wide operating voltage range: VCC (opr) = 2 to 6 V

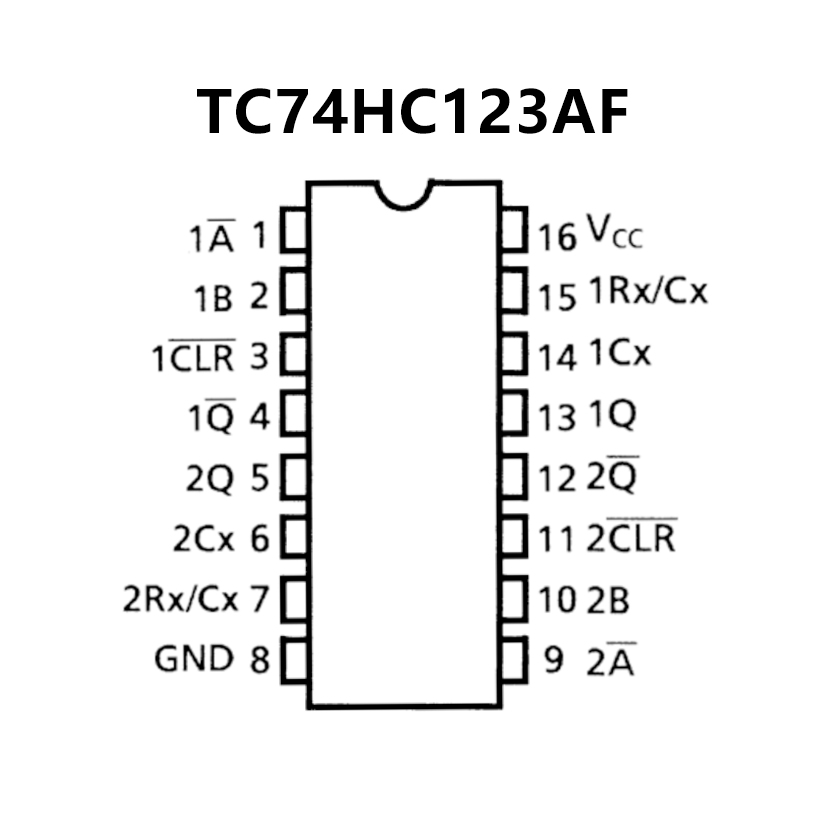

• Pin and function compatible with 74LS123
