74AHC123XS16GTR.pdf• All Inputs Have a Schmitt-Trigger Action
• Inputs Accept Voltages Higher than VCC
• Edge-Triggered from Active High or Active Low
Gated Logic Inputs
• Retriggerable for Very Long Pulses up to 100%
Duty Factor
• Direct Reset Terminates Output Pulse
• Operates with CMOS Input Levels
• -40℃ to +125℃ Operating Temperature Range

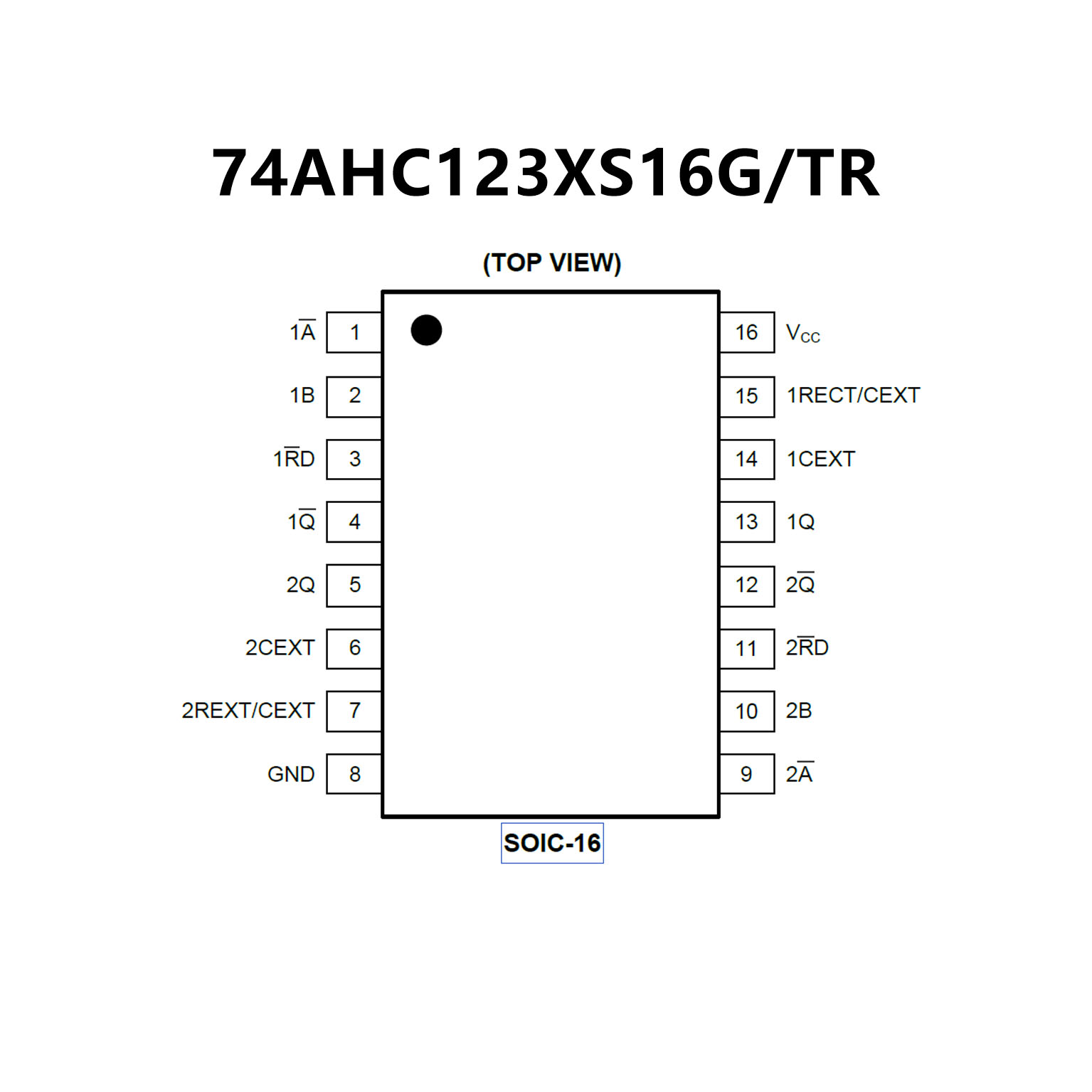

• Available in a Green SOIC-16 Package
•All inputs have a Schmitt-trigger action
• Inputs accept voltages higher than VCC
• DC triggered from active HIGH or active LOW inputs
• Retriggerable for very long pulses up to 100 % duty factor
• Direct reset terminates output pulse
• For 74AHC123A only: operates with CMOS input levels
• For 74AHCT123A only: operates with TTL input levels
• ESD protection:
HBM JESD22-A114E exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101C exceeds 1000 V
• Multiple package options
• Specified from-40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
