Hex Inverter with Schmitt Trigger Inputs,74AHC14XS14G Replace TC74HC14AF.
74AHC14XS14G
74AHC14XS14G.pdf
74AHC14XS14G.pdfFEATURES
• Wide Operating Voltage Range: 2.0V to 5.5V
• Inputs Accept Voltages Higher than the Supply
Voltage
• +8mA/-8mA Output Current
• All Inputs with Schmitt Trigger Actions
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

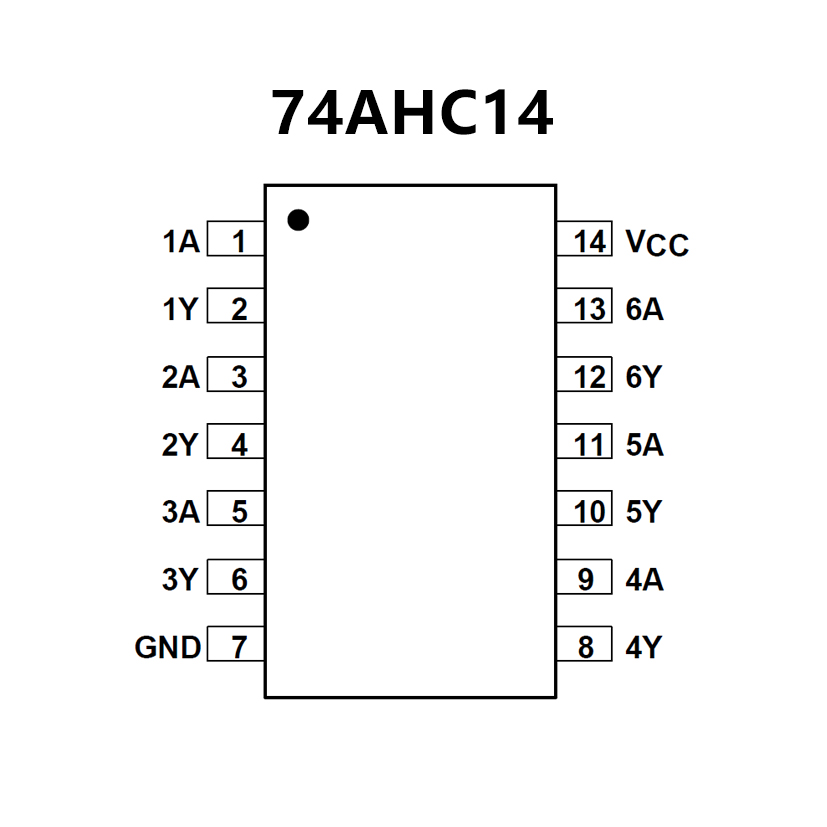

PIN CONFIGUTION
优势替代
FEATURES
• High speed: tpd = 11 ns (typ.)
at VCC = 5 V
• Low power dissipation:
ICC = 1.0 μA (max) at Ta = 25°C
• High noise immunity:
VH = 1.1 V at VCC = 4.5 V
• Output drive capability: 10 LSTTL loads
• Symmetrical output impedance:
|IOH| = IOL = 4 mA (min)
• Balanced propagation delays: tpLH −∼ tpHL
• Wide operating voltage range:
VCC (opr) = 2.0 to 6.0 V
• Pin and function compatible with 74LS14

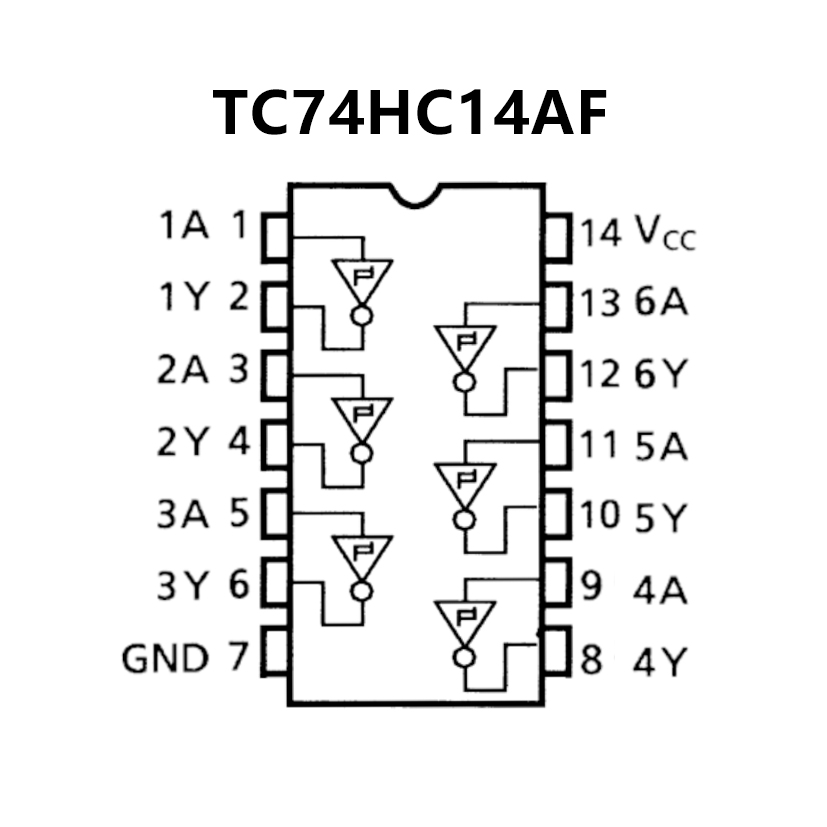

PIN CONFIGUTION
