Hex Inverter with Schmitt Trigger Inputs,74AHC14XS14G Replace TC74VHC14F.
74AHC14XS14G
74AHC14XS14G.pdf
74AHC14XS14G.pdfFEATURES
• Wide Operating Voltage Range: 2.0V to 5.5V
• Inputs Accept Voltages Higher than the SupplyVoltage
• +8mA/-8mA Output Current
• All Inputs with Schmitt Trigger Actions
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

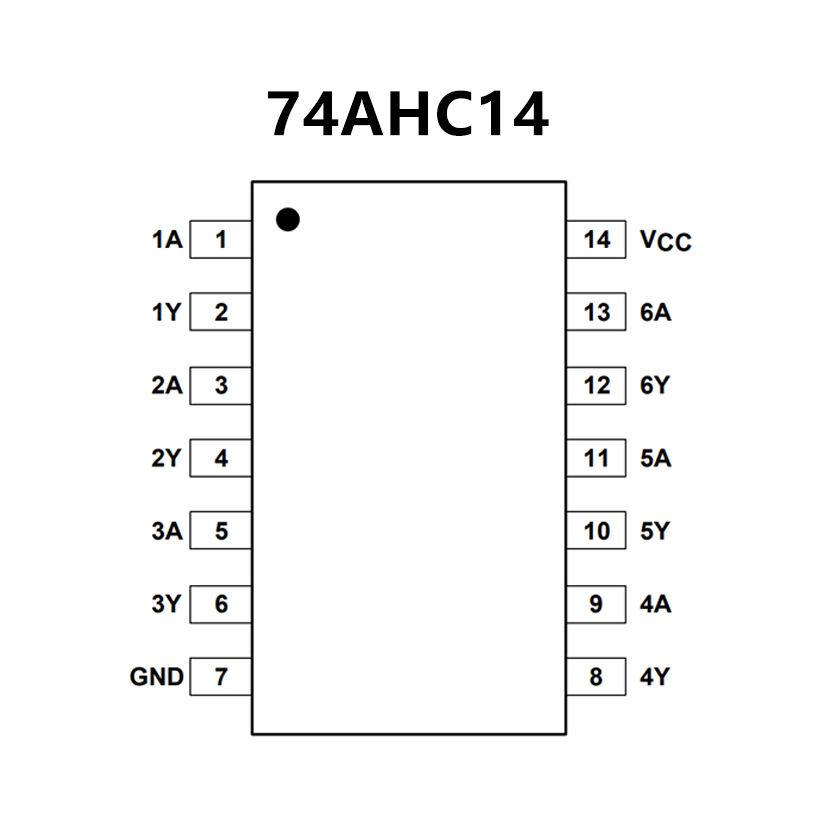

PIN CONFIGUTION
优势替代
FEATURES
• High speed: tpd = 5.5 ns (typ.) at VCC = 5 V
• Low power dissipation: ICC = 2 μA (max) at Ta = 25°C
• Power down protection is provided on all inputs.
• Balanced propagation delays: tpLH −∼ tpHL
• Wide operating voltage range: VCC (opr) = 2 V to 5.5 V
• Low noise: VOLP = 0.8 V (max)
• Pin and function compatible with 74ALS14

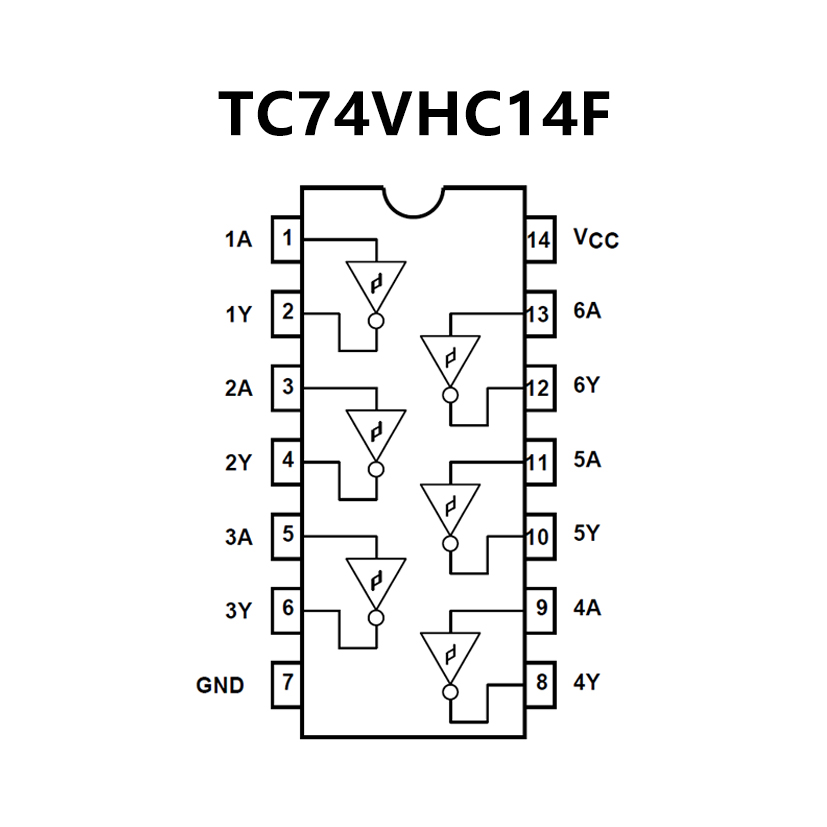

PIN CONFIGUTION
