Hex Inverter with Schmitt Trigger Inputs,74AHC14XS14G Replace U74HC14.
74AHC14XS14G
74AHC14XS14G.pdf
74AHC14XS14G.pdfFEATURES
• Wide Operating Voltage Range: 2.0V to 5.5V
• Inputs Accept Voltages Higher than the Supply Voltage
• +8mA/-8mA Output Current
• All Inputs with Schmitt Trigger Actions
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

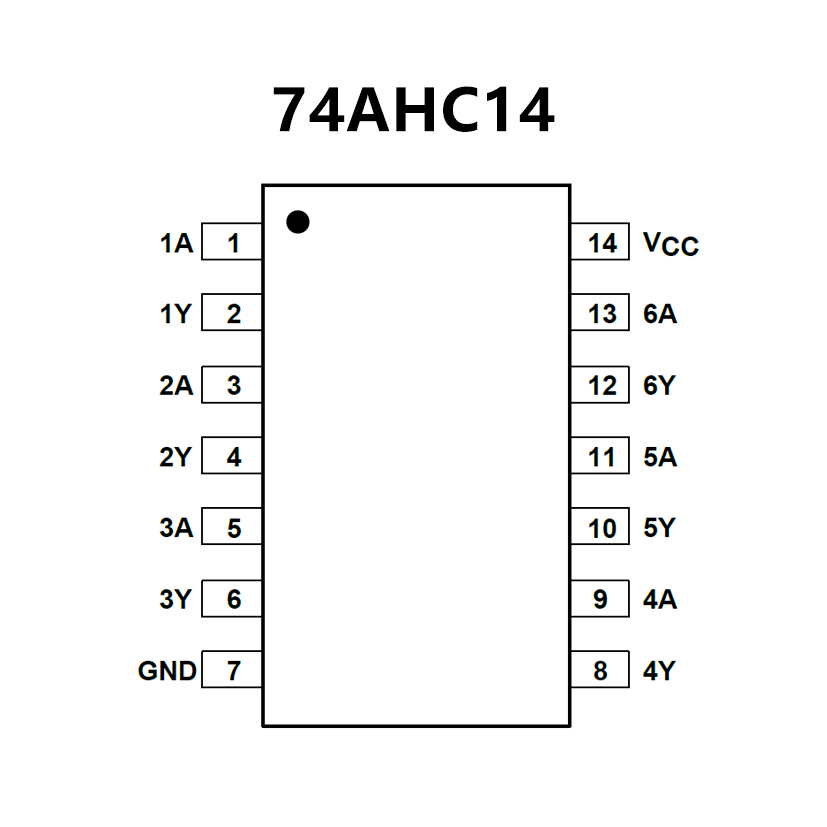

PIN CONFIGUTION
优势替代
FEATURES
• Widely range of input rise and fall time
• high noise immunity
• Fan-out parameters(over temperature range)
up to 10 LSTTL Loads
• Low power consumption
• Wide range operation 2V ~ 6V
PIN CONFIGUTION
