Hex Inverting with Schmitt Trigger Inputs, 74AHC14XS14G/TR Replace 74ACT14MTC.
74AHC14XS14G/TR
74AHC14XS14G/TR.pdf
74AHC14XS14G/TR.pdfFEATURES
• Wide Operating Voltage Range: 2.0V to 5.5V
• Inputs Accept Voltages Higher than the Supply Voltage
• +8mA/-8mA Output Current
• All Inputs with Schmitt Trigger Actions
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

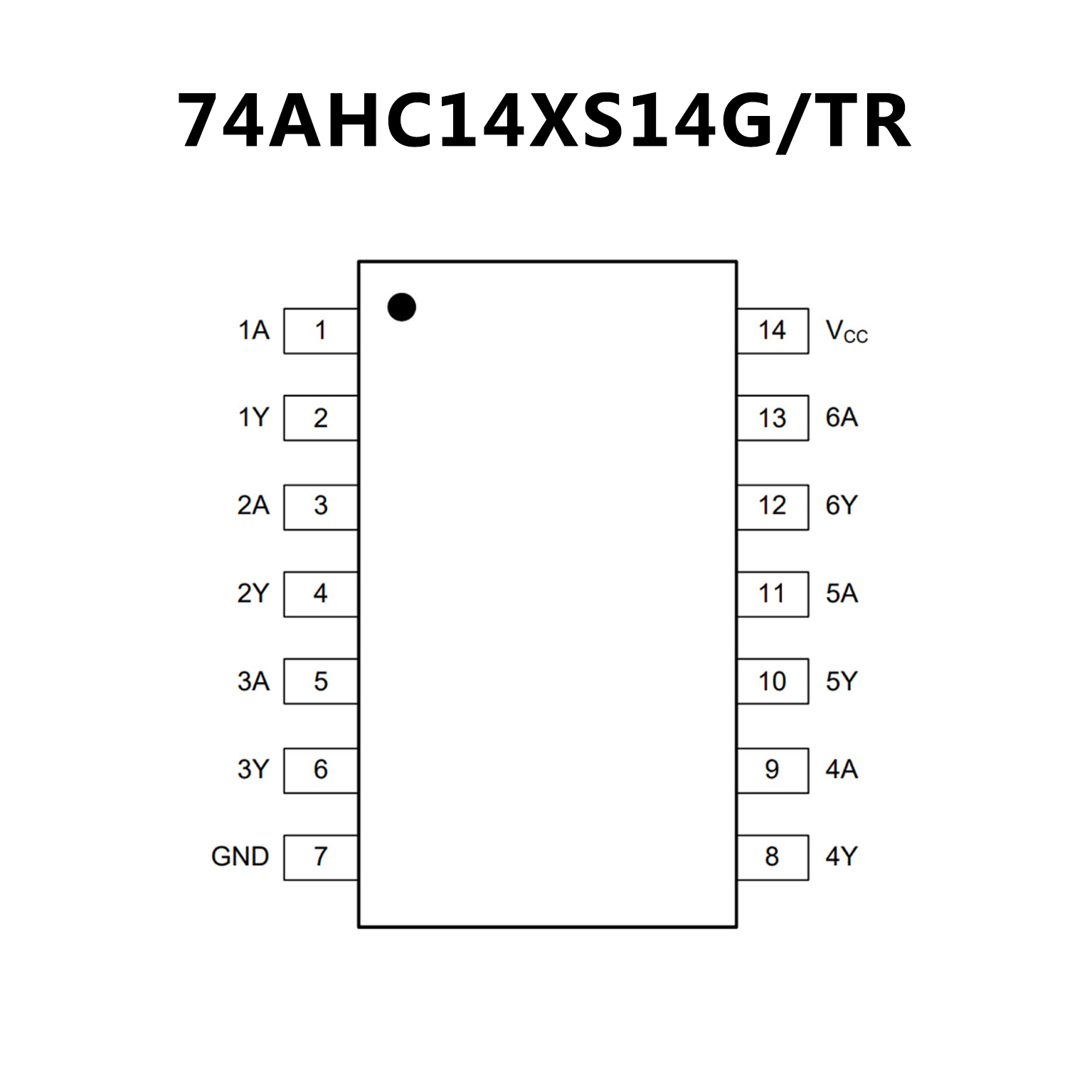

PIN CONFIGUTION
优势替代
FEATURES
• ICC reduced by 50%
• Outputs source/sink 24mA
• 74ACT14 has TTL-compatible inputs

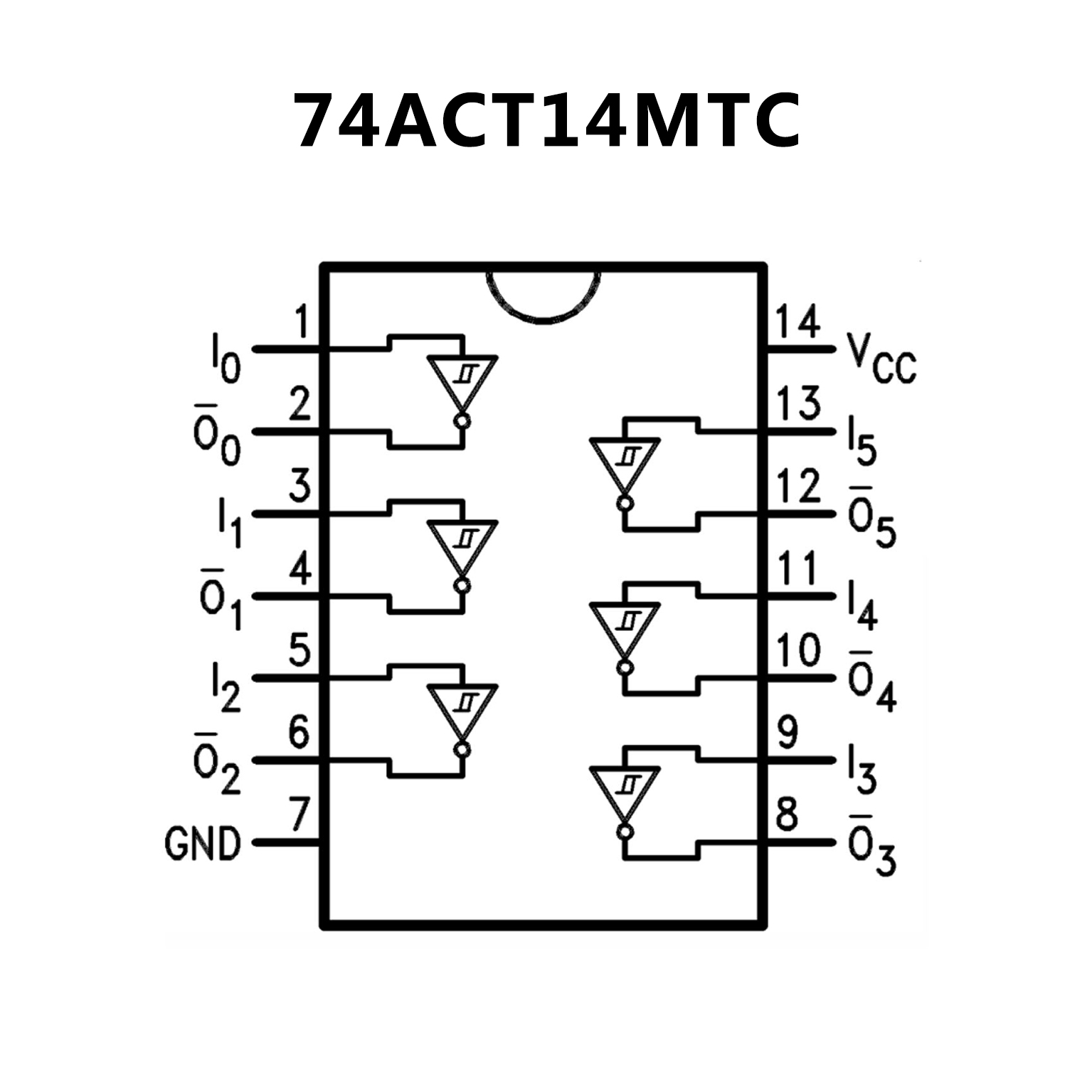

PIN CONFIGUTION
