Hex Inverter with Schmitt Trigger Inputs,74AHC14-Replace-74AHC14D
74AHC14XS14GTR
74AHC14XS14GTR.pdf
74AHC14XS14GTR.pdfFEATURES
• Wide Operating Voltage Range: 2.0V to 5.5V
• Inputs Accept Voltages Higher than the Supply
Voltage
• +8mA/-8mA Output Current
• All Inputs with Schmitt Trigger Actions
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

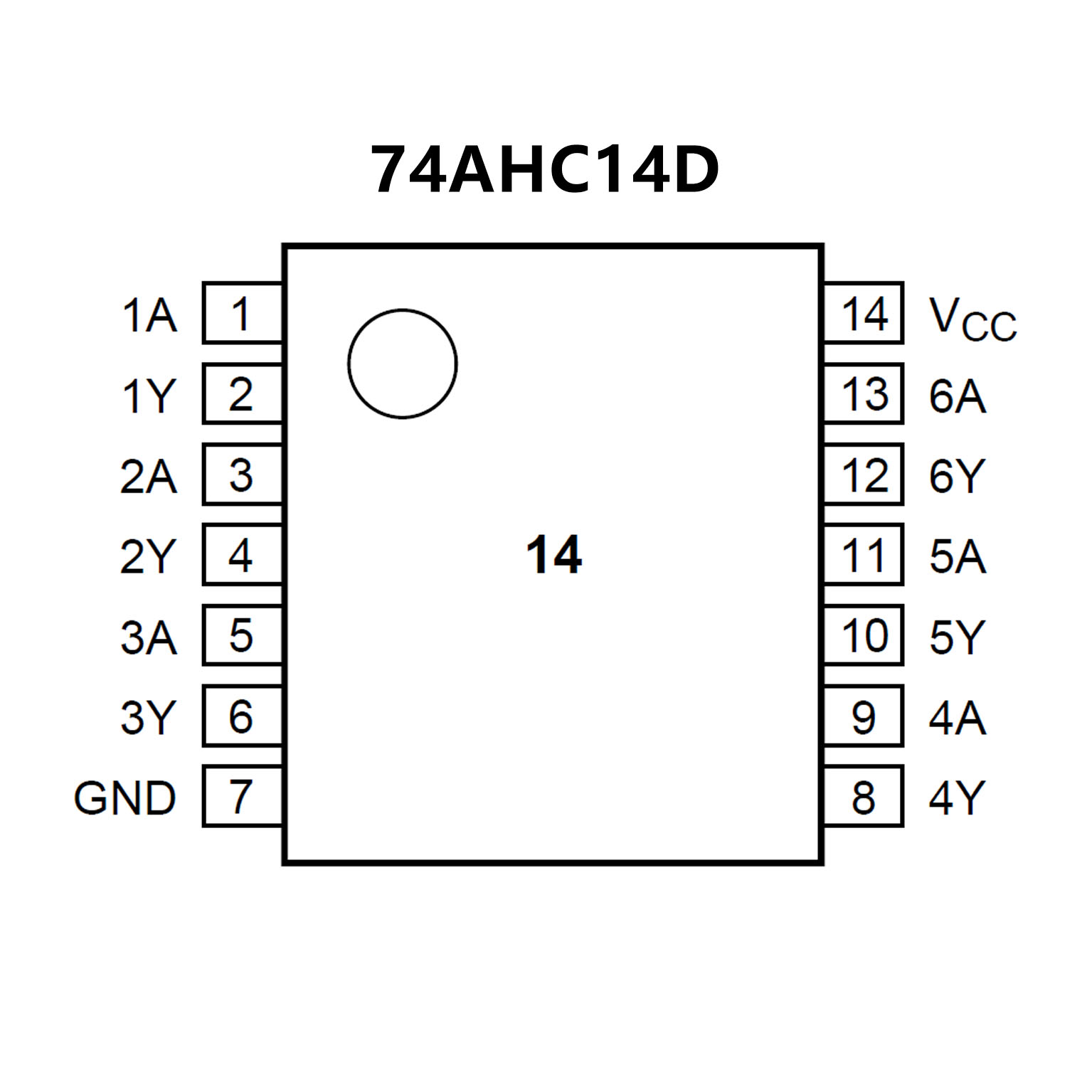

PIN CONFIGUTION
优势替代
FEATURES
• Balanced propagation delays
• All inputs have Schmitt-trigger actions
• Inputs accept voltages higher than VCC
• Input levels:
For 74AHC14: CMOS level
For 74AHCT14: TTL level
• ESD protection:
HBM EIA/JESD22-A114E exceeds 2000 V
MM EIA/JESD22-A115-A exceeds 200 V
CDM EIA/JESD22-C101C exceeds 1000 V
• Multiple package options
• Specified from −40 °C to +85 °C and from −40 °C to +125 °C

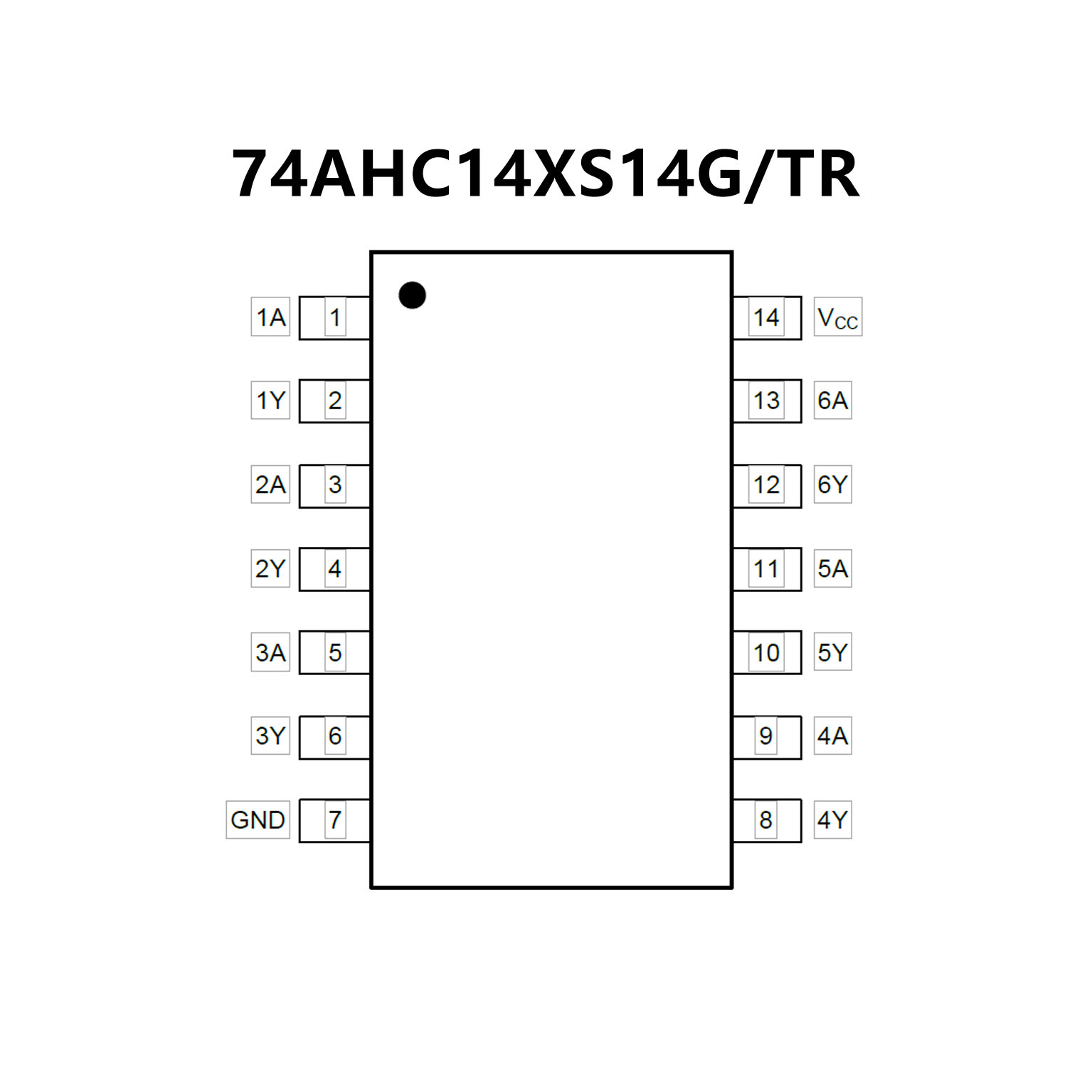

PIN CONFIGUTION
