Hex Inverterwith Schmitt Trigger Inputs, 74AHC14XS14G/TR Replace 74HC14D.
74AHC14
74AHC14.pdf
74AHC14.pdfFEATURES
• Wide Operating Voltage Range: 2.0V to 5.5V
• Inputs Accept Voltages Higher than the Supply
Voltage
• +8mA/-8mA Output Current
• All Inputs with Schmitt Trigger Actions
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

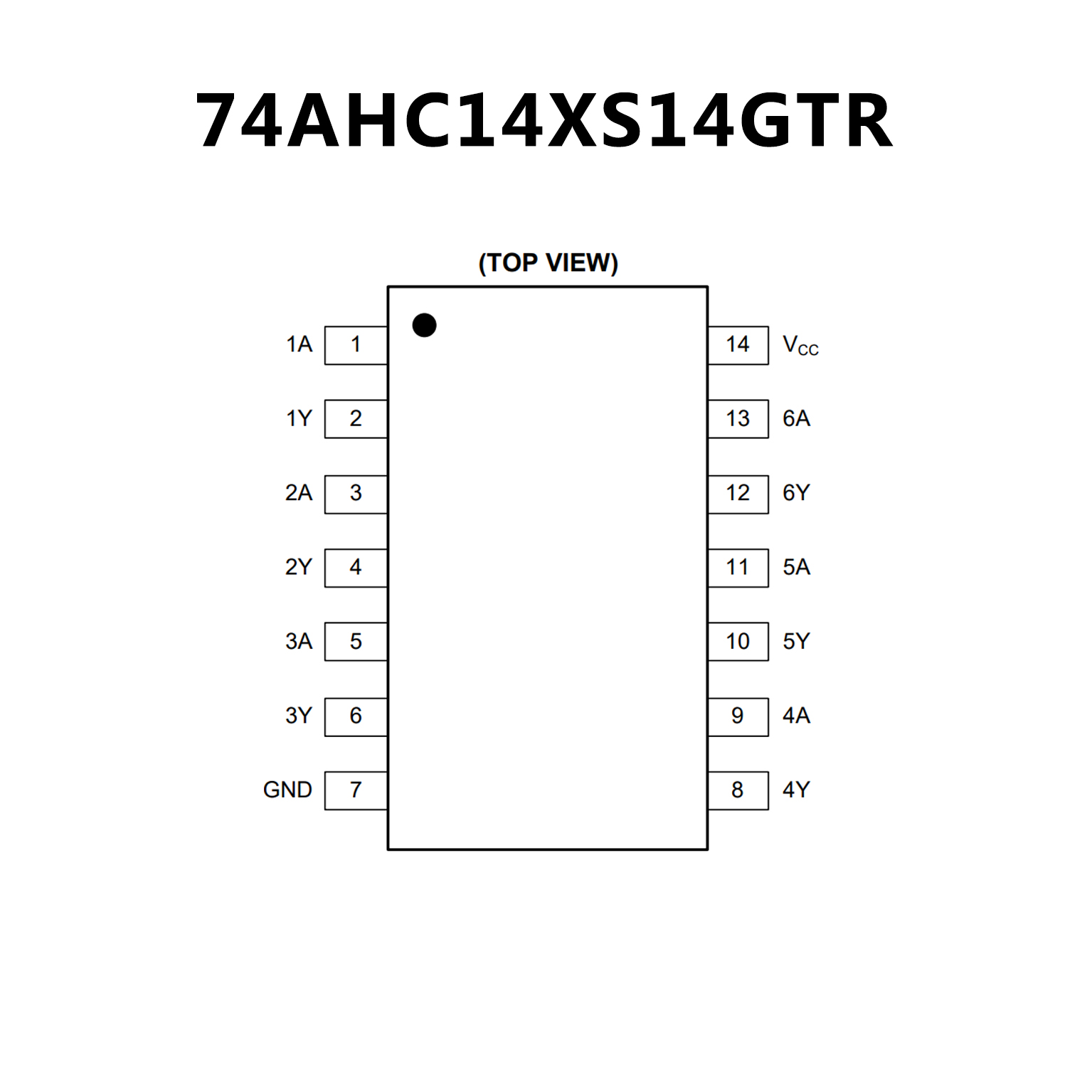

PIN CONFIGUTION
优势替代
FEATURES
• Wide supply voltage range from 2.0 to 6.0 V
• CMOS low power dissipation
• High noise immunity
• Unlimited input rise and fall times
• Latch-up performance exceeds 100 mA per
JESD 78 Class II Level B
• Complies with JEDEC standards:
JESD8C (2.7 V to 3.6 V)
JESD7A (2.0 V to 6.0 V)
• ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 °C to +85 °C and from -40 °C to +125 °C

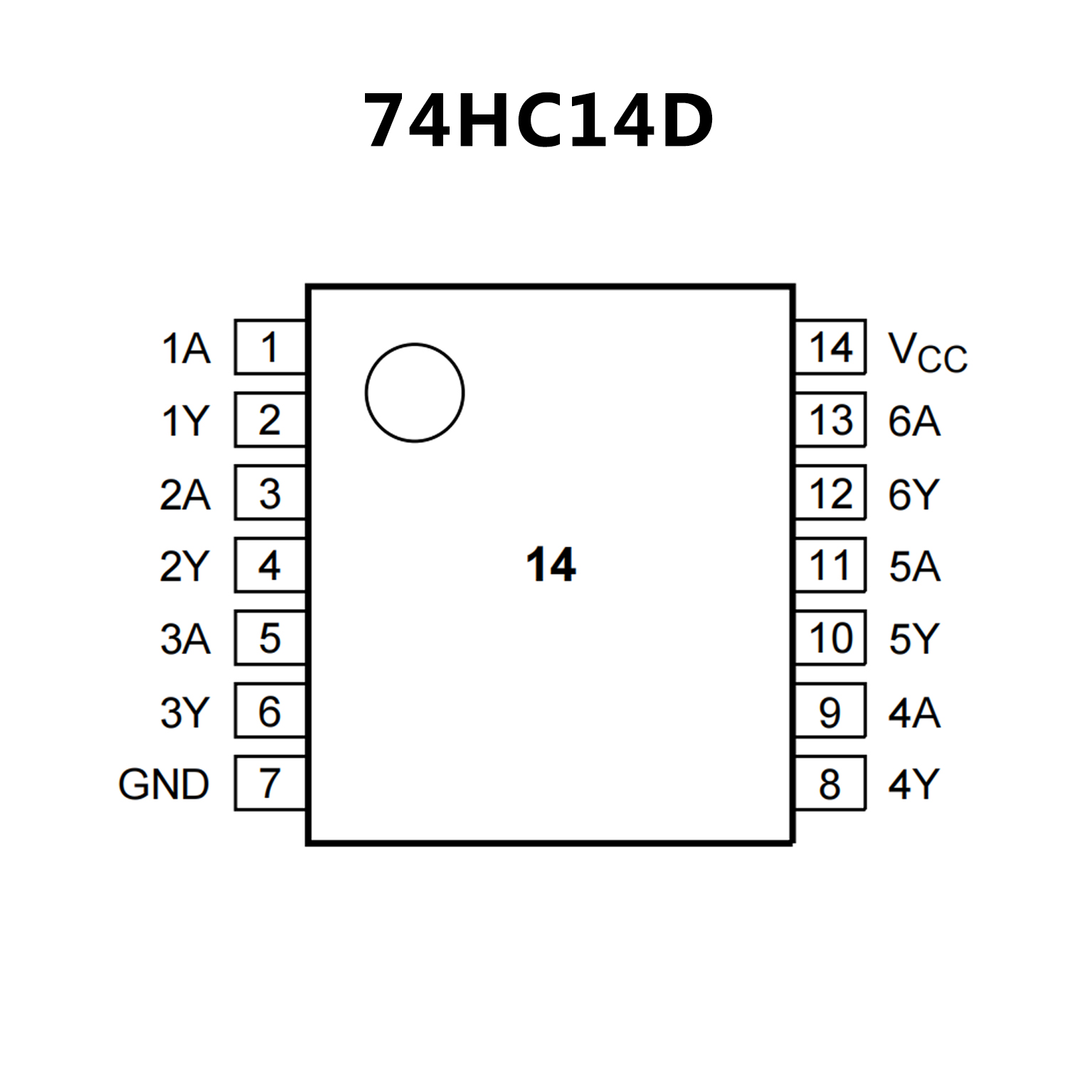

PIN CONFIGUTION
