Hex Inverte rwith Schmitt Trigger Inputs,74AHC14XS14GTR-Replace-74HCT14PW.
74AHC14
74AHC14.pdf
74AHC14.pdfFEATURES
• Wide Operating Voltage Range: 2.0V to 5.5V
• Inputs Accept Voltages Higher than the Supply
Voltage
• +8mA/-8mA Output Current
• All Inputs with Schmitt Trigger Actions
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

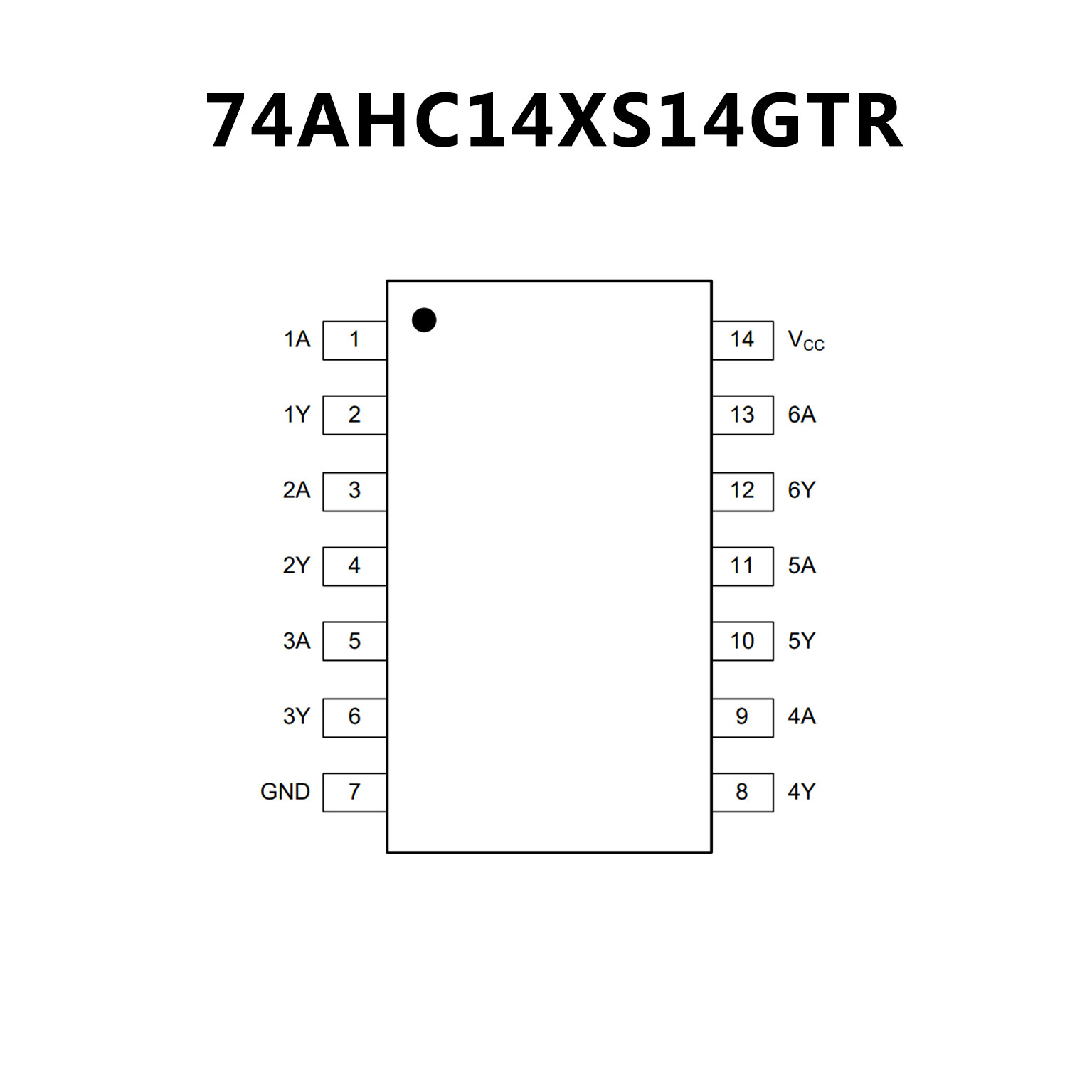

PIN CONFIGUTION
优势替代
FEATURES
• Complies with JEDEC standard no. 7A
• Low-power dissipation
• ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 ℃ to +85℃ and from -40 ℃to +125℃
PIN CONFIGUTION
