Hex Inverter with Schmitt Trigger Inputs,74AHC14XS14GTR Replace HD74HC14FP-EL-E.
74AHC14
74AHC14.pdf
74AHC14.pdfFEATURES
• Balanced Propagation Delays
• All Inputs Have Schmitt Trigger Actions
• Inputs Accept Voltages Higher Than VCC
• Input Level: CMOS Level
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

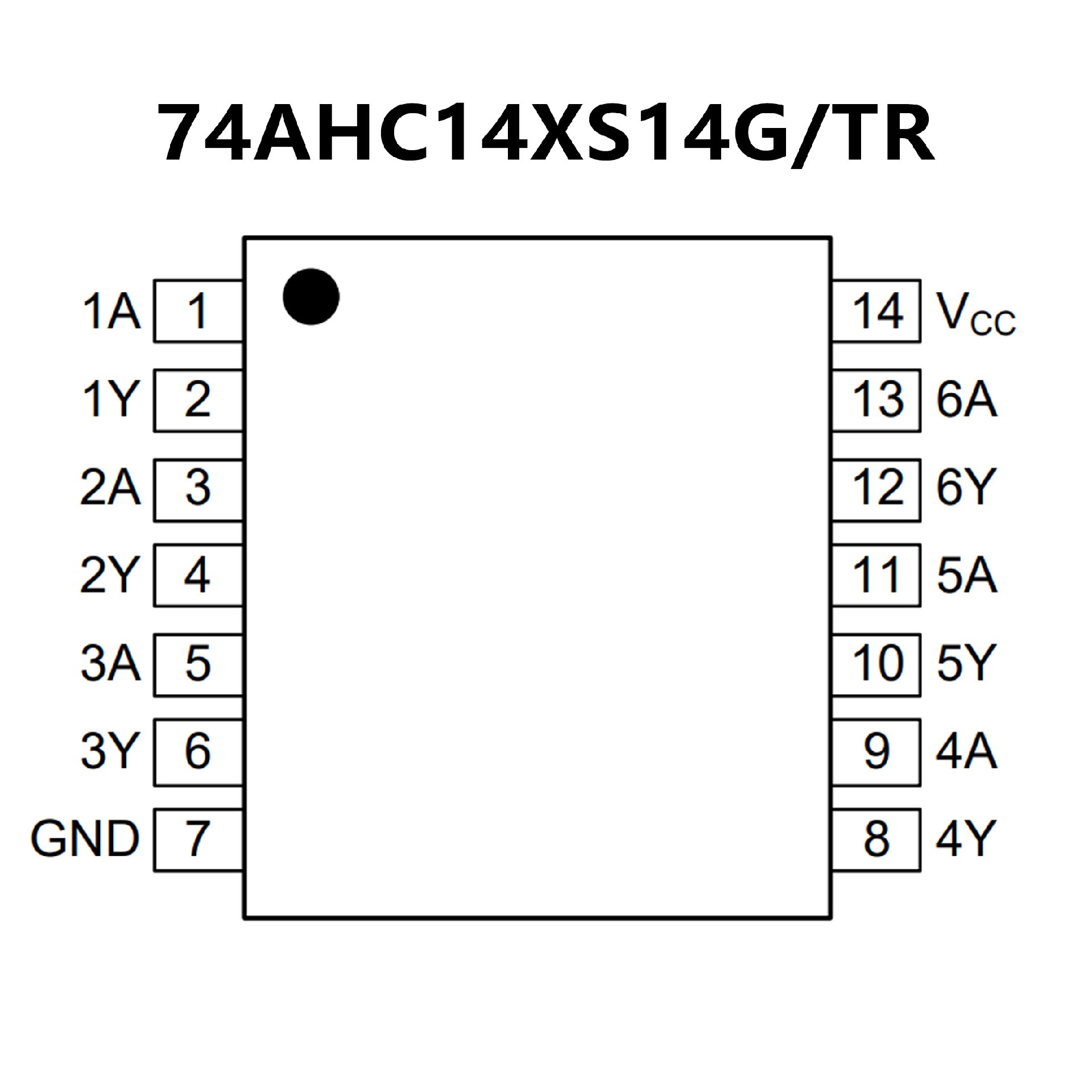

PIN CONFIGUTION
优势替代
FEATURES
• High Speed Operation: tpd = 10.5 ns typ (CL = 50 pF)
• High Output Current: Fanout of 10 LSTTL Loads
• Wide Operating Voltage: VCC = 2 to 6 V
• Low Input Current: 1 µA max
• Low Quiescent Supply Current:
ICC (static) = 1 µA max (Ta = 25°C)
• Ordering Information

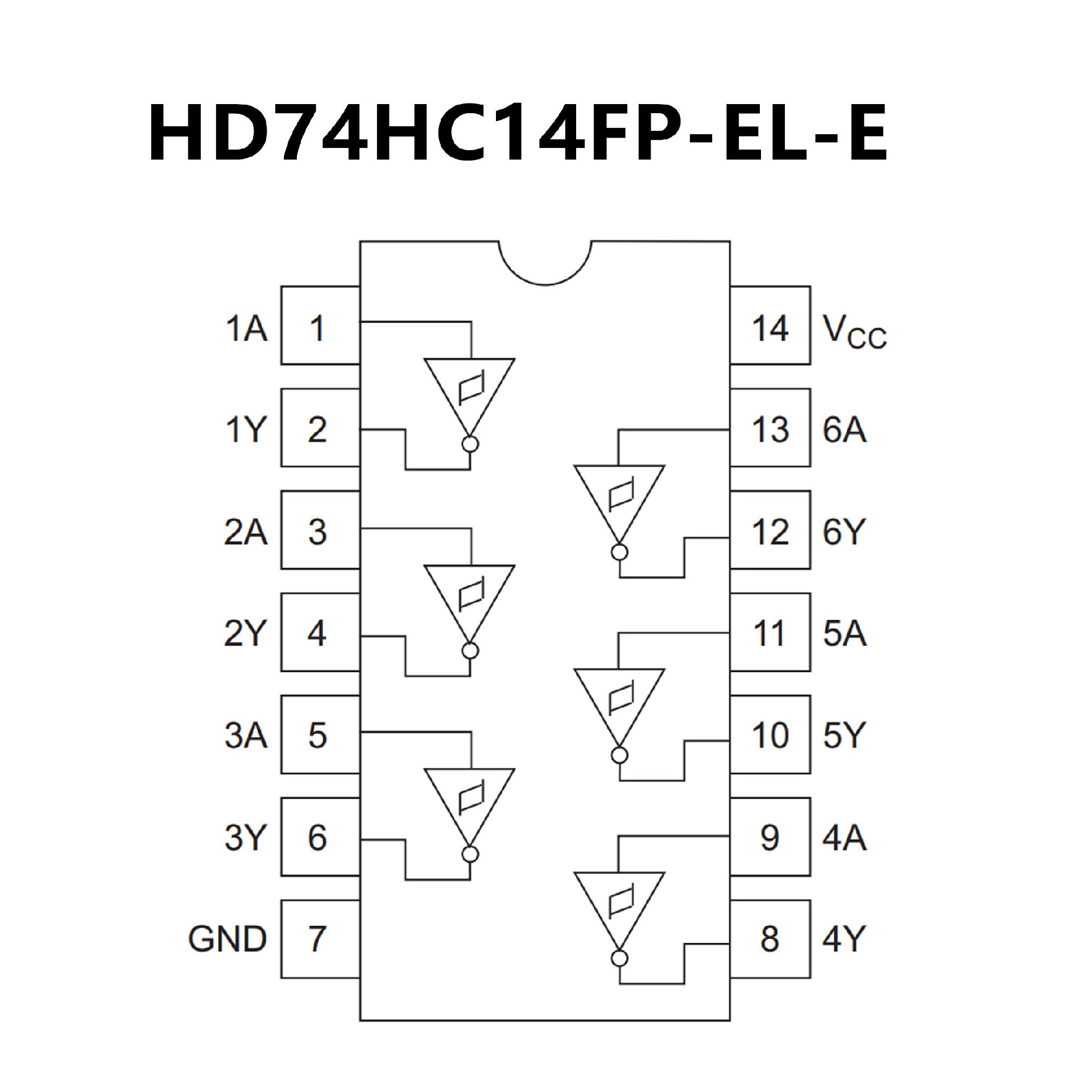

PIN CONFIGUTION
