8-Bit Serial-In/Serial-Out or Parallel-Out Shift Register with Output Latches, Replace 74AHC595PW.
74AHC595
74AHC595.pdf
74AHC595.pdfFEATURES
• Balanced Propagation Delays
• All Inputs Have Schmitt-Trigger Action
• Inputs Accept Voltages Higher than VCC
• Operates with CMOS Input Levels
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-16 Package

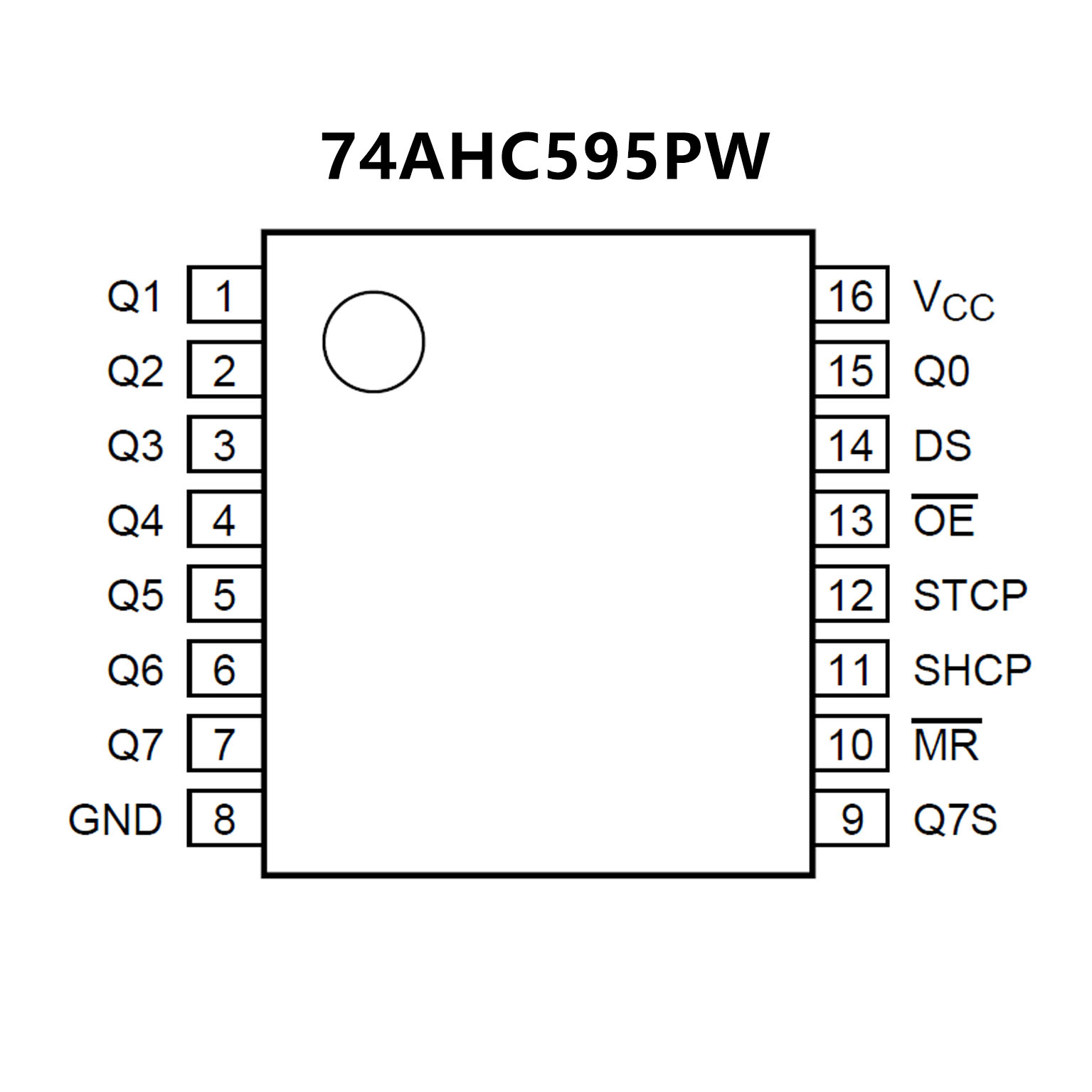

PIN CONFIGUTION
优势替代
FEATURES
• Balanced propagation delays
• All inputs have Schmitt-trigger action
• Inputs accept voltages higher than VCC
• Input levels:
The 74AHC595 operates with CMOS input levels
The 74AHCT595 operates with TTL input levels
• ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
• Multiple package options
• Specified from -40 ℃to +85 ℃ and from -40 ℃ to +125℃

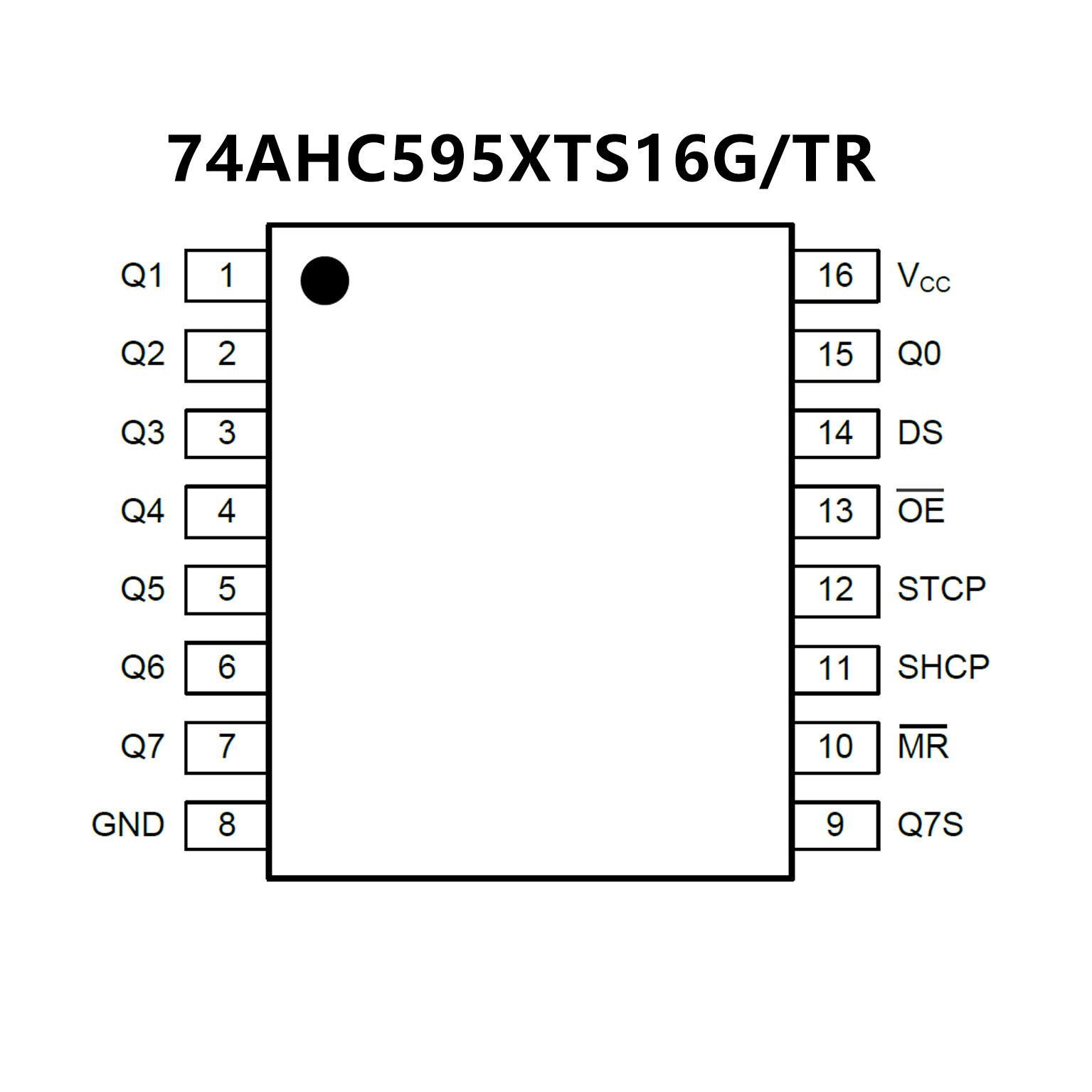

PIN CONFIGUTION
