8-Bit Serial-In/Serial-Out or Parallel-Out Shift Register with Output Latches, Replace 74HC595BQ.
74AHC595
74AHC595.pdf
74AHC595.pdfFEATURES
• Balanced Propagation Delays
• All Inputs Have Schmitt-Trigger Action
• Inputs Accept Voltages Higher than VCC
• Operates with CMOS Input Levels
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-16 Package
PIN CONFIGUTION
优势替代
FEATURES
• 8-bit serial input
• 8-bit serial or parallel output
• Storage register with 3-state outputs
• Shift register with direct clear
• 100 MHz (typical) shift out frequency
• Complies with JEDEC standard no. 7A
• Input levels:
For 74HC595: CMOS level
For 74HCT595: TTL level
• ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 °C to +85 °C and from -40 °C to +125 °C

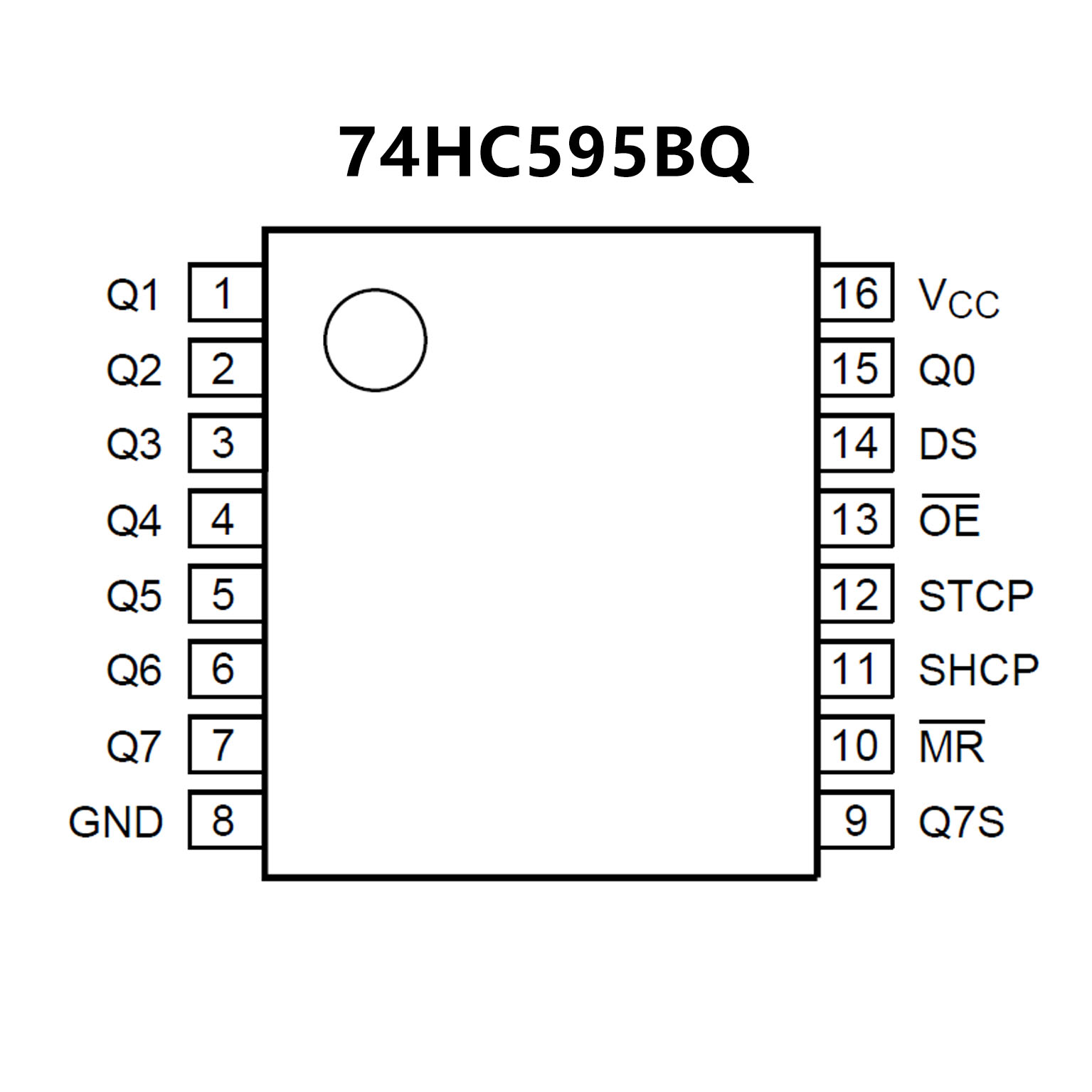

PIN CONFIGUTION
