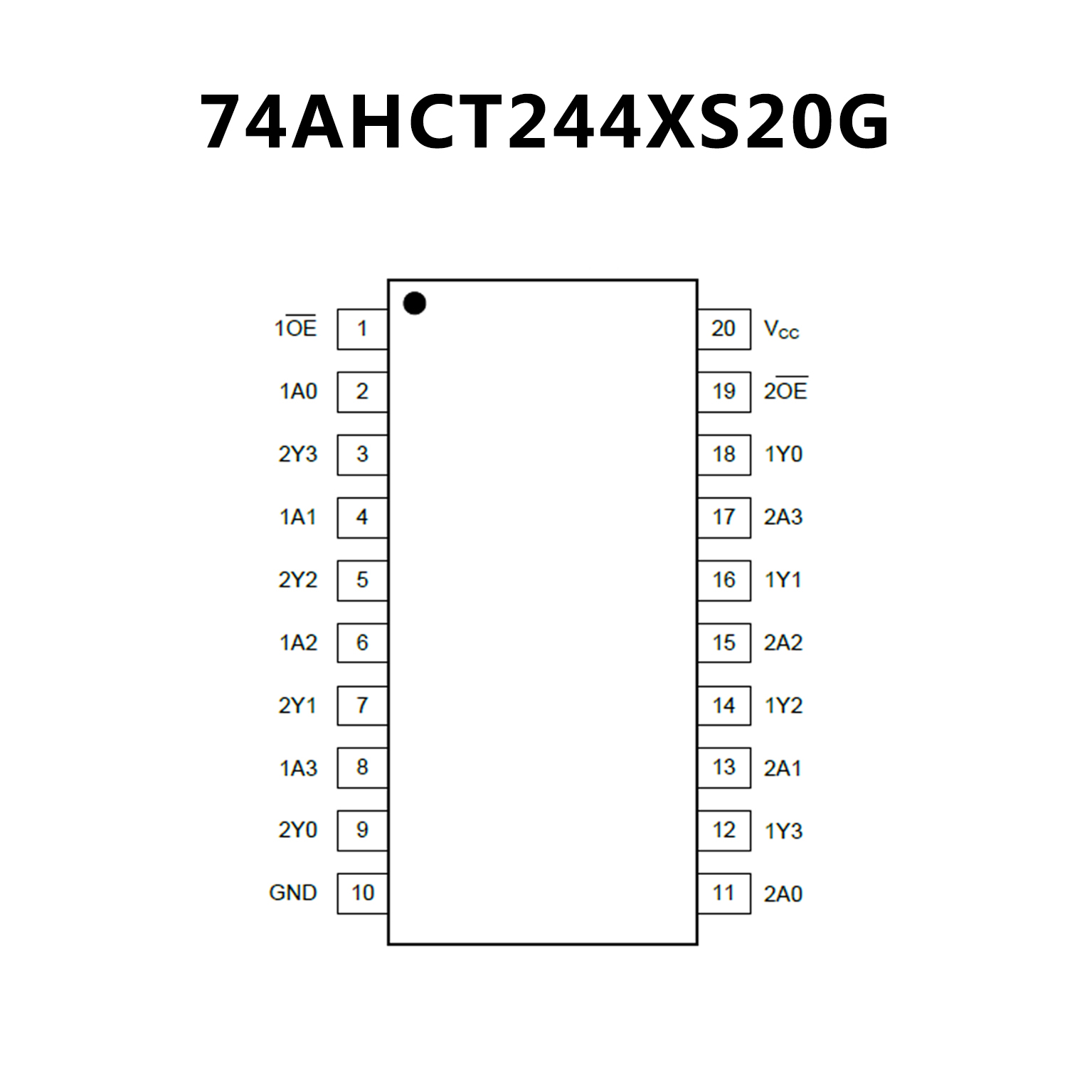

74AHCT244XS20G.pdf• Supply Voltage Range: 4.5V to 5.5V
• Input Accept Voltages Higher than the Supply Voltage
• +8mA/-8mA Output Current
• 3-State Buffers
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-20 Package

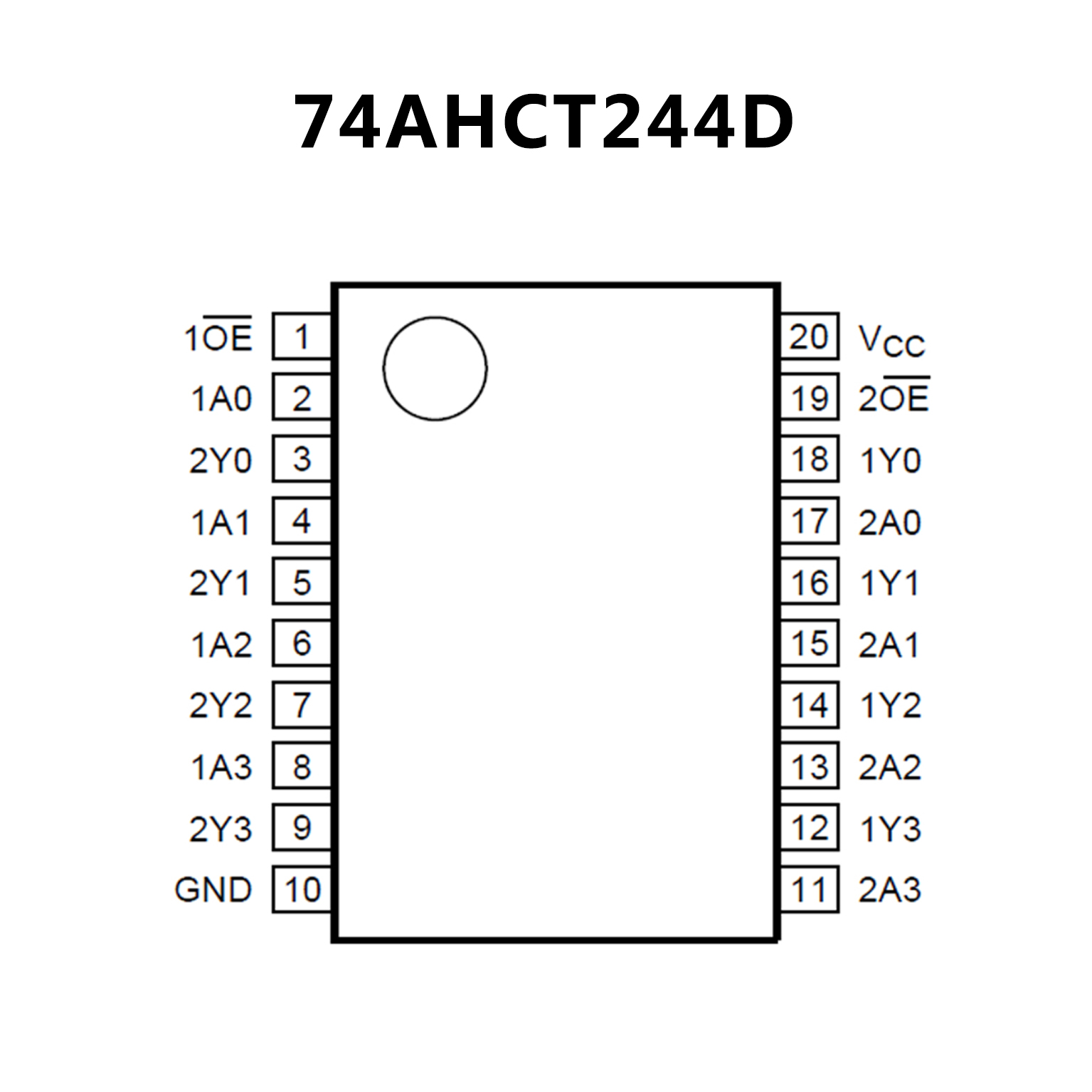

• Wide supply voltage range from 2.0 V to 5.5 V
• Balanced propagation delays
• All inputs have Schmitt-trigger action
• Overvoltage tolerant inputs to 5.5 V
• High noise immunity
• CMOS low power dissipation
• Input levels:
• For 74AHC244: CMOS level
• For 74AHCT244: TTL level
• ESD protection:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-A exceeds 200 V
• CDM JESD22-C101E exceeds 1000 V
• Latch-up performance exceeds
100 mA per JESD 78 Class II Level A
• Multiple package options
• Specified from -40 °C to +85 °C
and from -40 °C to +125 °C
