Quad 2-Input Exclusive-OR Gate,74AHCT86 Replace HEF4070BT.
74AHCT86
74AHCT86.pdf
74AHCT86.pdfFEATURES
• Balanced Propagation Delays
• All Inputs Have Schmitt Trigger Actions
• Inputs Accept Voltages Higher Than VCC
• Operates with TTL Input Levels
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package
PIN CONFIGUTION
优势替代
FEATURES
• Fully static operation
• 5 V, 10 V, and 15 V parametric ratings
• CMOS low power dissipation
• High noise immunity
• Standardized symmetrical output characteristics
• Complies with JEDEC standard JESD 13-B
• ESD protection:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-B exceeds 200 V
• Specified from -40 °C to +85 °C

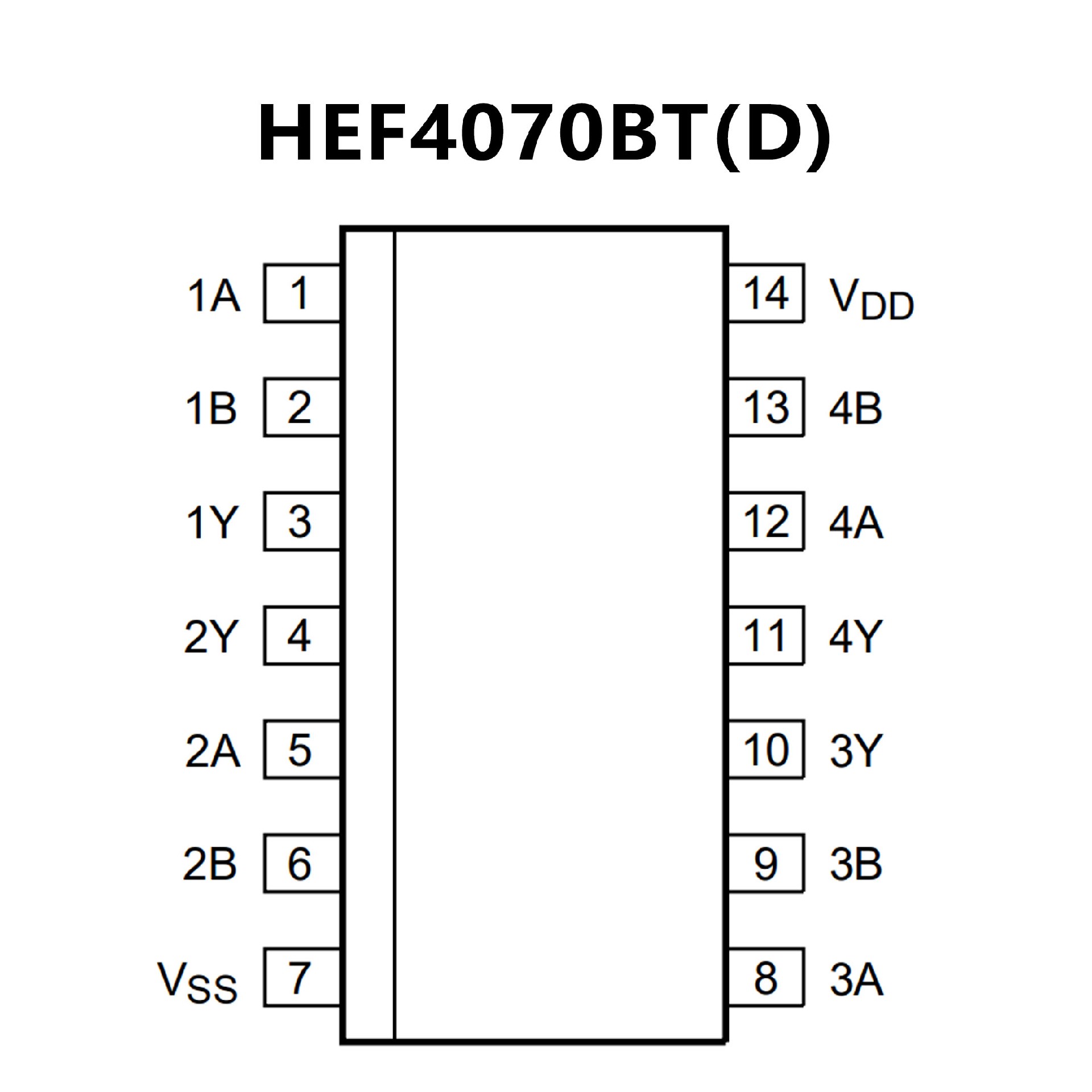

PIN CONFIGUTION
