Quad 2 Input Exclusive OR Gate，74AHCT86 Replace 74AHCT86D.
74AHCT86
74AHCT86.pdf
74AHCT86.pdfFEATURES
• Balanced Propagation Delays
• All Inputs Have Schmitt Trigger Actions
• Inputs Accept Voltages Higher Than VCC
• Operates with TTL Input Levels
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

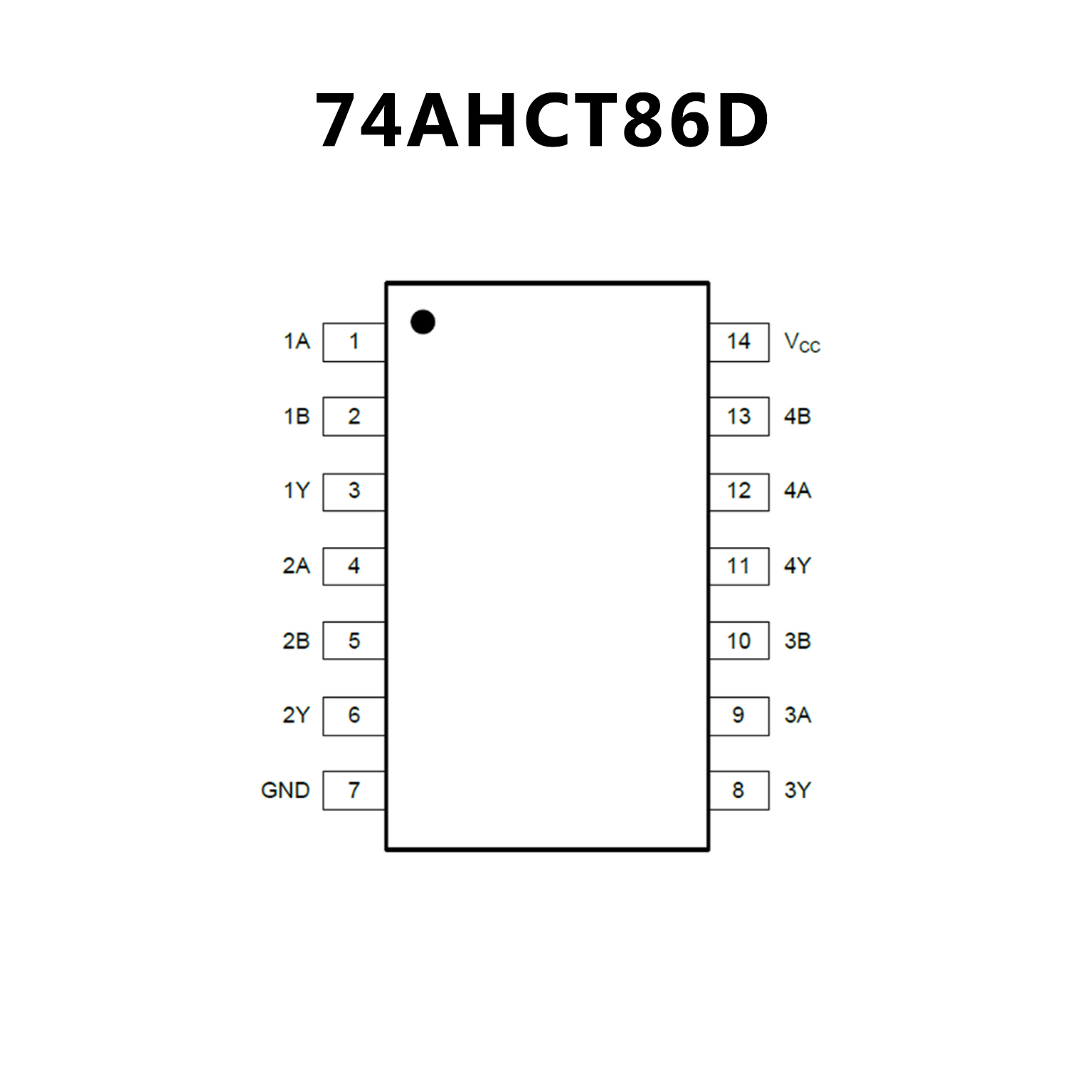

PIN CONFIGUTION
优势替代
FEATURES
• Wide supply voltage range from 2.0 V to 5.5 V
• Input levels:
• For 74AHC86: CMOS level
• For 74AHCT86: TTL level
• Balanced propagation delays
• All inputs have Schmitt-trigger actions
• Overvoltage tolerant inputs to 5.5 V
• High noise immunity
• CMOS low power dissipation
• ESD protection:
• HBM JESD22-A114E exceeds 2000 V
• Specified from -40 °C to +85 °C and from -40 °C to +125 °C

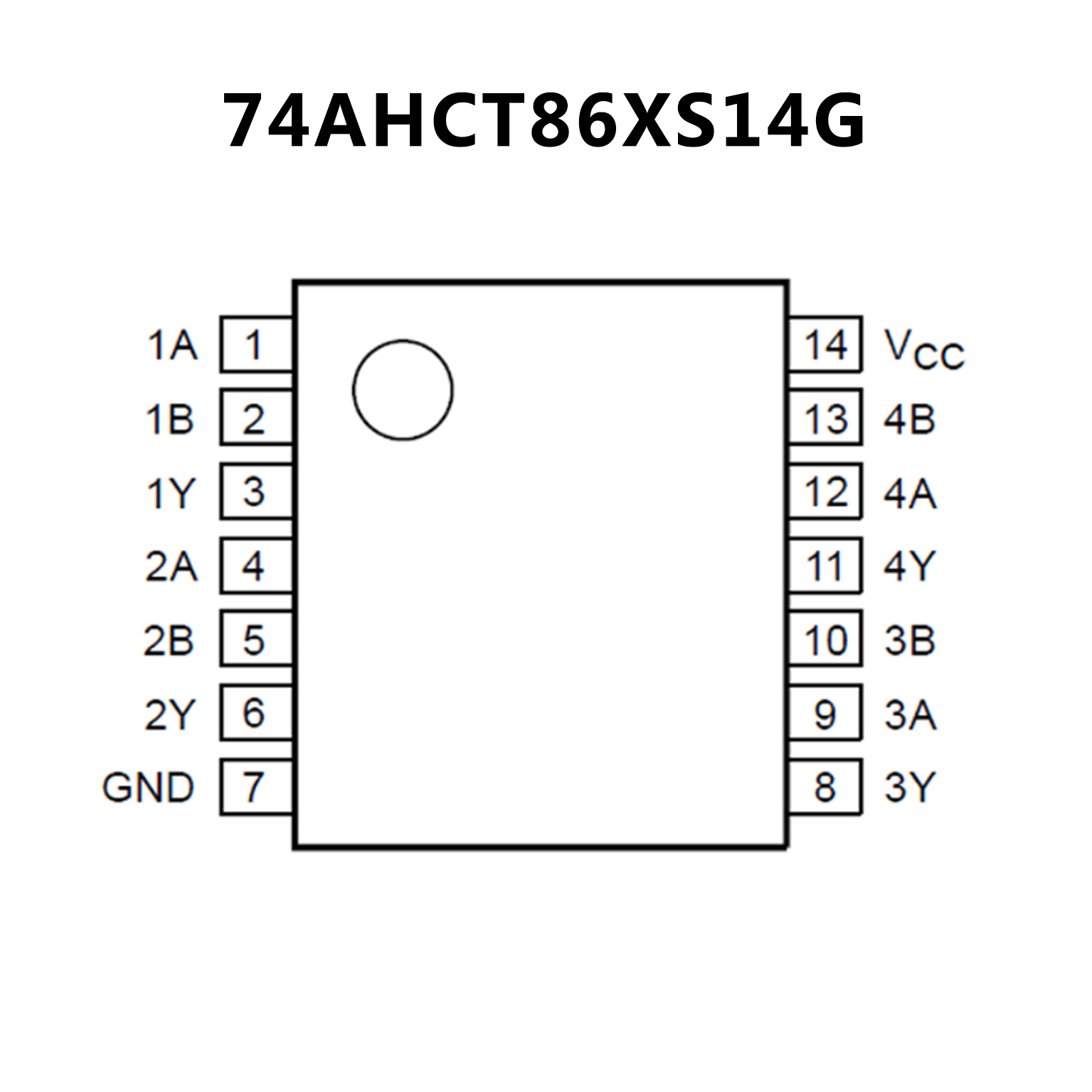

PIN CONFIGUTION
