Quad 2-Input Exclusive-OR Gate,74AHCT86XS14G Replace SN74HC86DRE4.
74AHCT86XS14G
74AHCT86XS14G.pdf
74AHCT86XS14G.pdfFEATURES
• Balanced Propagation Delays
• All Inputs Have Schmitt Trigger Actions
• Inputs Accept Voltages Higher Than VCC
• Operates with TTL Input Levels
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

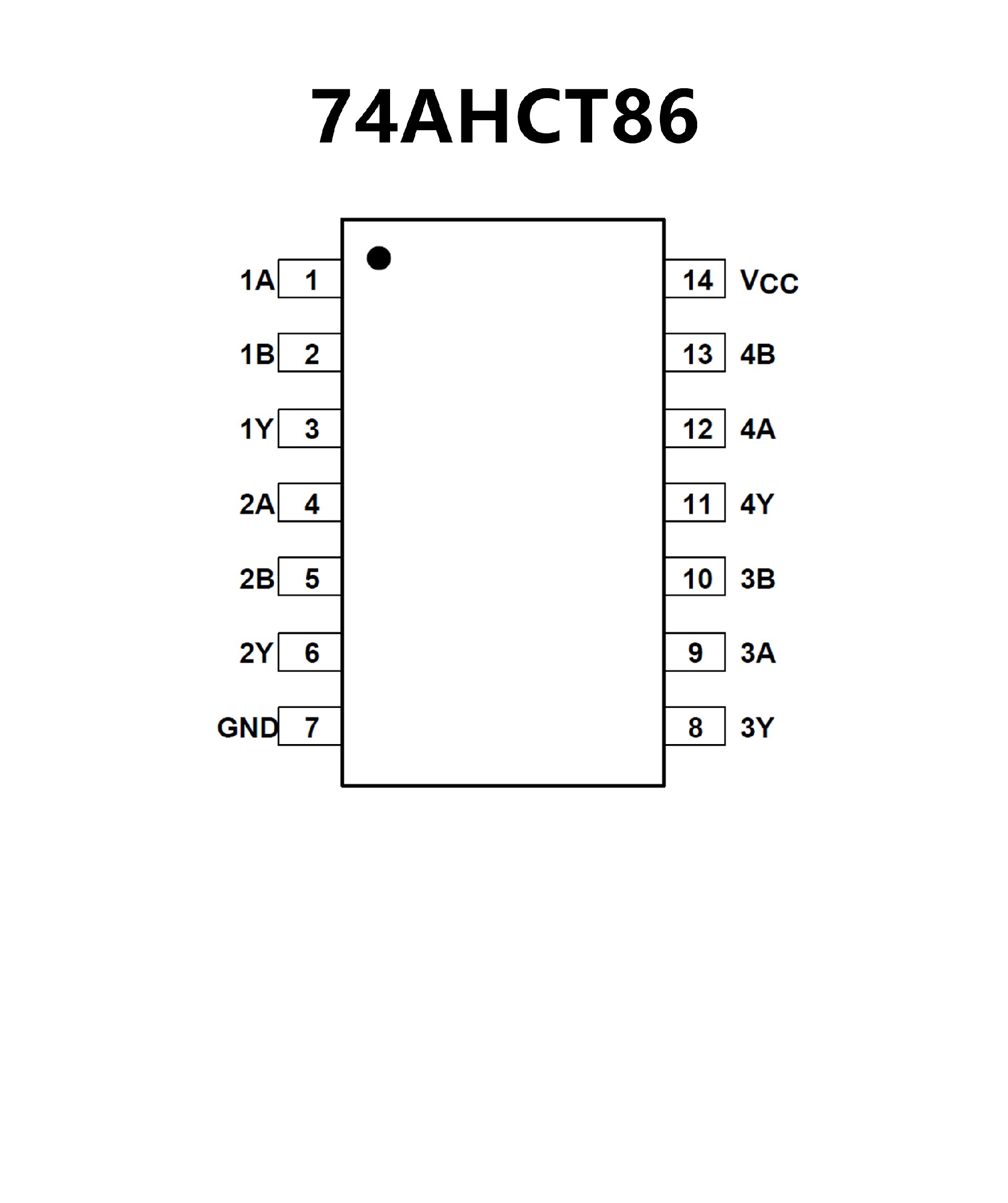

PIN CONFIGUTION
优势替代
FEATURES
• Buffered inputs
• Wide operating voltage range: 2 V to 6 V
• Wide operating temperature range:
–40°C to +85°C
• Supports fanout up to 10 LSTTL loads
• Significant power reduction compared to LSTTL
logic ICs

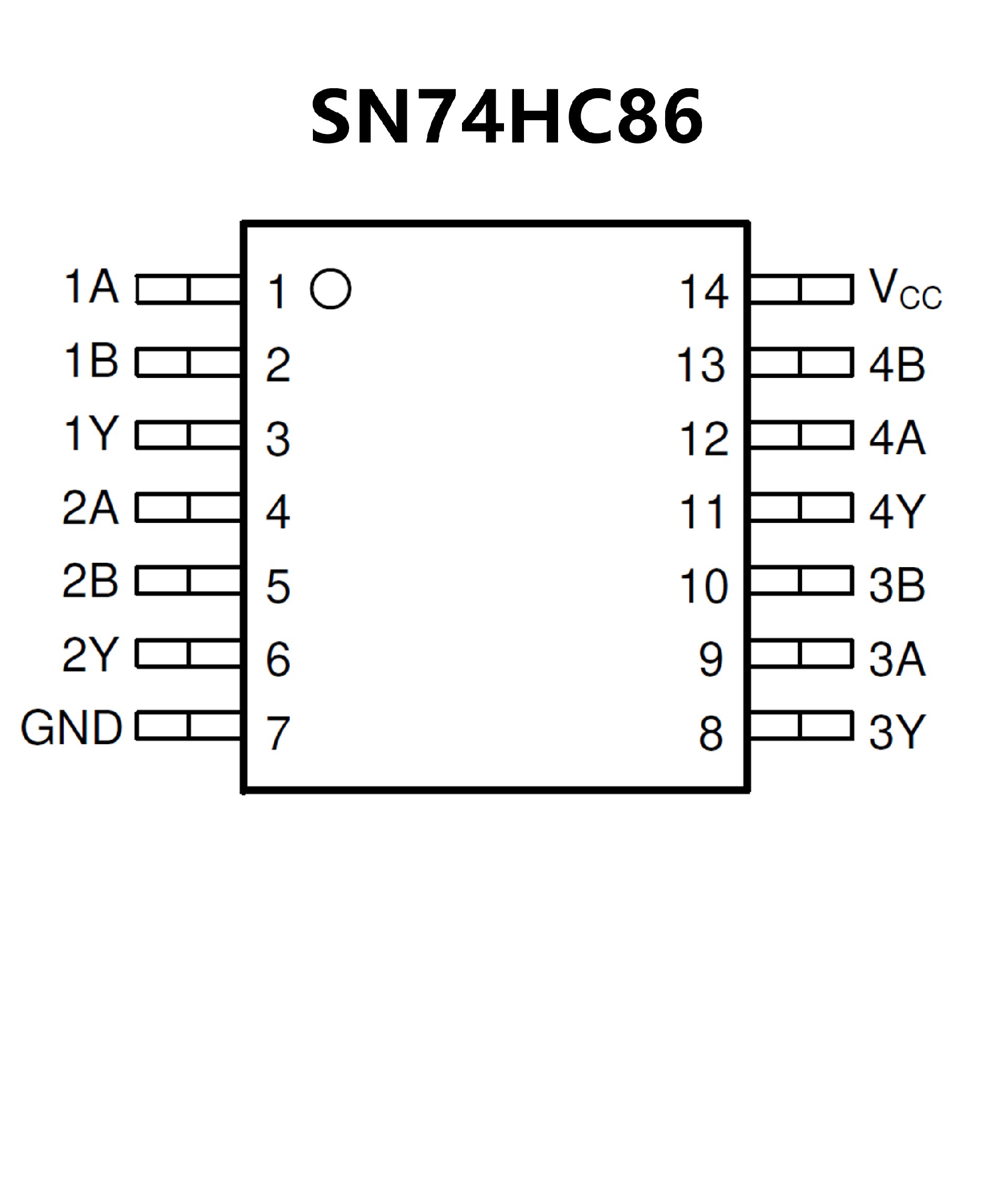

PIN CONFIGUTION
