74AUP1G07.pdf• Wide Supply Voltage Range: 0.8V to 3.6V
• Inputs Accept Voltages Higher than the Supply
Voltage
• 4mA Output Current
• Low Quiescent Current: ICC = 0.1μA (TYP)
• Low Dynamic Power Dissipation:
CPD = 2.5pF at VCC = 3.3V (TYP)
• Input with Schmitt-Trigger
• Support Partial Power-Down Mode
• -40℃ to +125℃ Operating Temperature Range

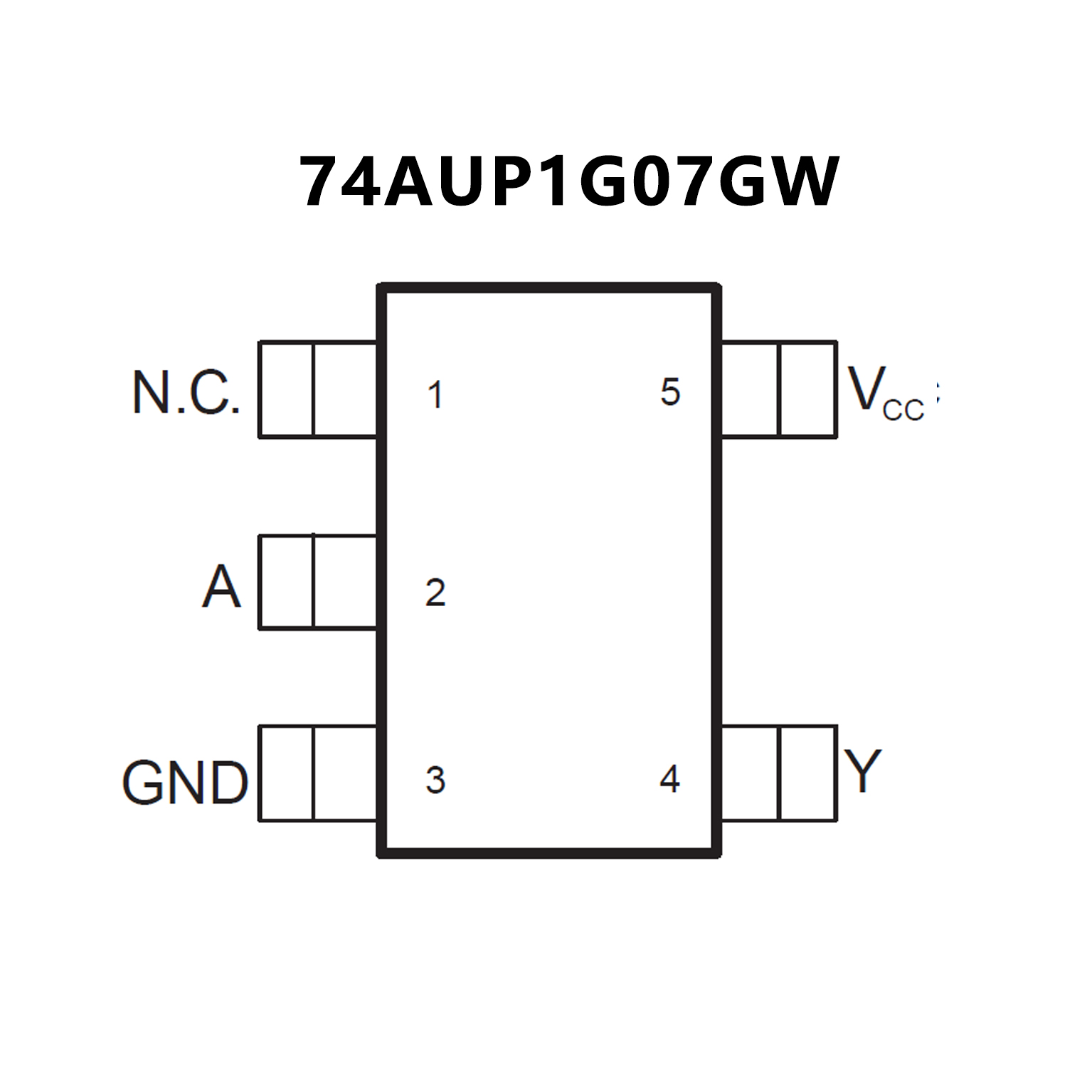

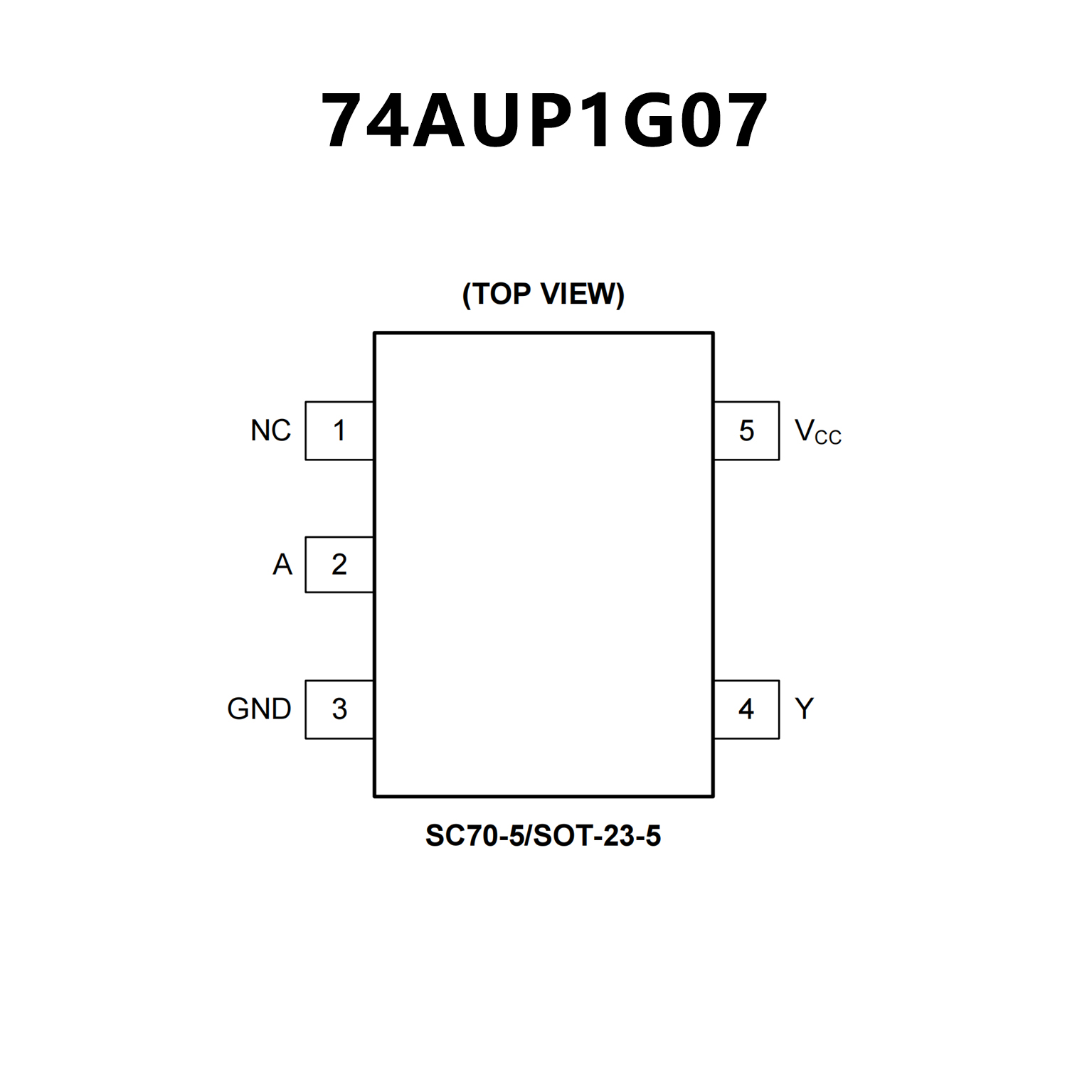

• Available in Green SC70-5, SOT-23-5 and
UTDFN-1.45×1-6AL Packages
• Wide supply voltage range from 0.8 V to 3.6 V
• High noise immunity
• CMOS low power dissipation
• Complies with JEDEC standards:
• JESD8-12 (0.8 V to 1.3 V)
• JESD8-11 (0.9 V to 1.65 V)
• JESD8-7 (1.65 V to 1.95 V)
• JESD8-5 (2.3 V to 2.7 V)
• JESD8C (2.7 V to 3.6 V)
• ESD protection:
• HBM: ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 5000 V
• CDM: ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 1000 V
• MM: JESD22-A115-A exceeds 200 V
• Low static power consumption; ICC = 0.9 μA (maximum)
• Latch-up performance exceeds 100 mA per JESD 78 Class II
• Overvoltage tolerant inputs to 3.6 V
• Low noise overshoot and undershoot < 10 % of VCC
• IOFF circuitry provides partial Power-down mode operation
• Multiple package options
