Low Power Single Buffer/Driver With Open Drain Outputs,Replace SN74AUP1G07
FEATURES

• Wide Supply Voltage Range: 0.8V to 3.6V

• Inputs Accept Voltages Higher than the Supply

  Voltage

• 4mA Output Current

• Low Quiescent Current: ICC = 0.1μA (TYP)

• Low Dynamic Power Dissipation:

  CPD = 2.5pF at VCC = 3.3V (TYP)

• Input with Schmitt-Trigger

• Support Partial Power-Down Mode

• -40℃ to +125℃ Operating Temperature Range

• Available in Green SC70-5, SOT-23-5 and

  UTDFN-1.45×1-6AL Packages













PIN CONFIGUTION
优势替代
SN74AUP1G07 SN74AUP1G07.pdf

No.13723

FEATURES

• Available in the Ultra Small 0.64 mm2 Package

• (DPW) with 0.5-mm Pitch

• Low Static-Power Consumption

• (ICC = 0.9 µA Maximum)

• Low Dynamic-Power Consumption

• (Cpd = 1 pF Typical at 3.3 V)

• Low Input Capacitance (Ci = 1.5 pF Typical)

• Low Noise – Overshoot and

  Undershoot<10% of VCC

• Ioff Supports Live Insertion, Partial-

  Power-Down Mode, and Back-Drive Protection

• Input Hysteresis Allows Slow Input Transition and

  Better Switching Noise Immunity at the Input

  (Vhys = 250 mV Typ at 3.3 V)

• Wide Operating VCC Range of 0.8 V to 3.6 V

• Optimized for 3.3-V Operation

• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation

• tpd = 3.3 ns Maximum at 3.3 V

• Suitable for Point-to-Point Applications

• Latch-Up Performance Exceeds 100 mA

  Per JESD 78, Class II

• ESD Performance Tested Per JESD 22

  2000-V Human-Body Model(A114-B, Class II)

  1000-V Charged-Device Model (C101)

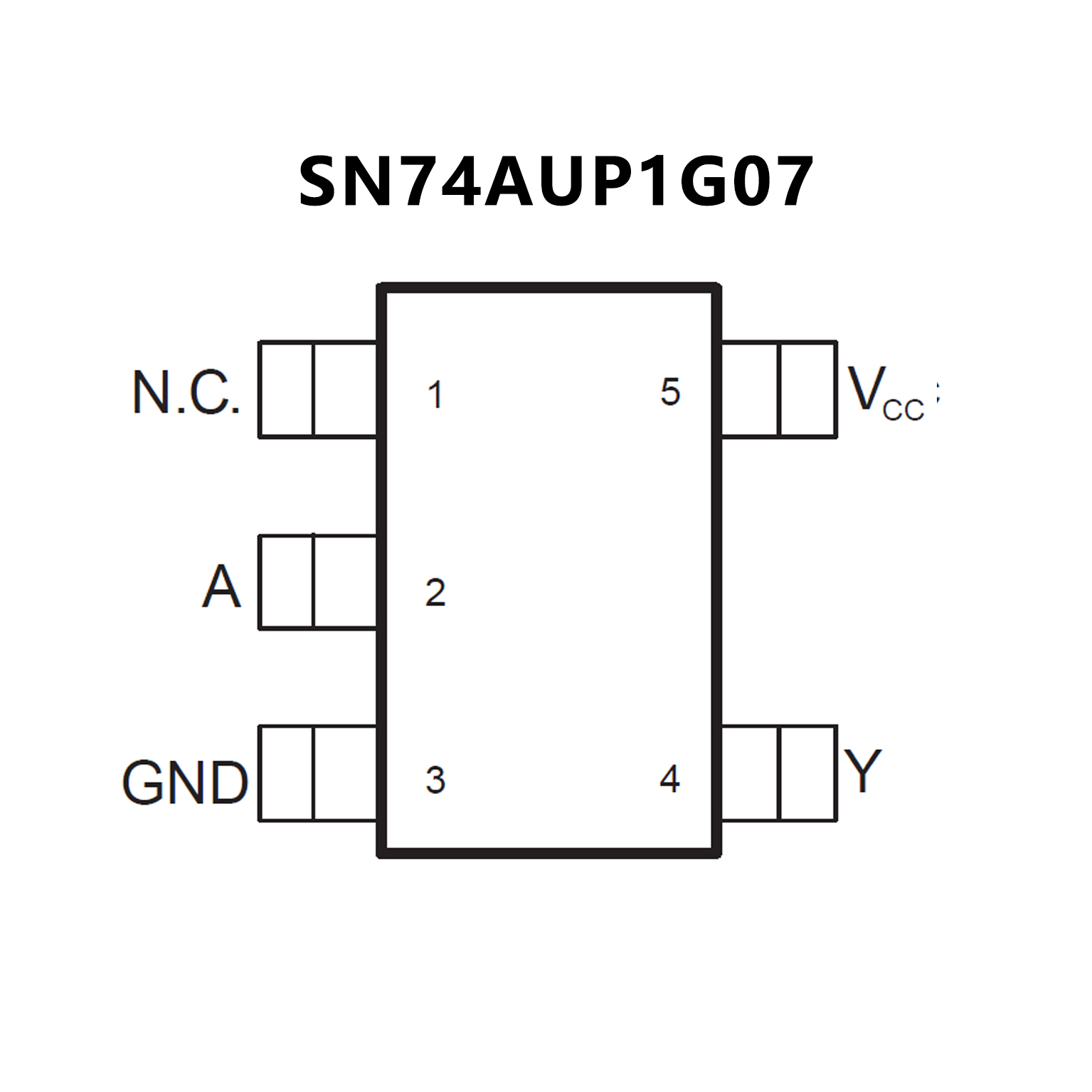

PIN CONFIGUTION
