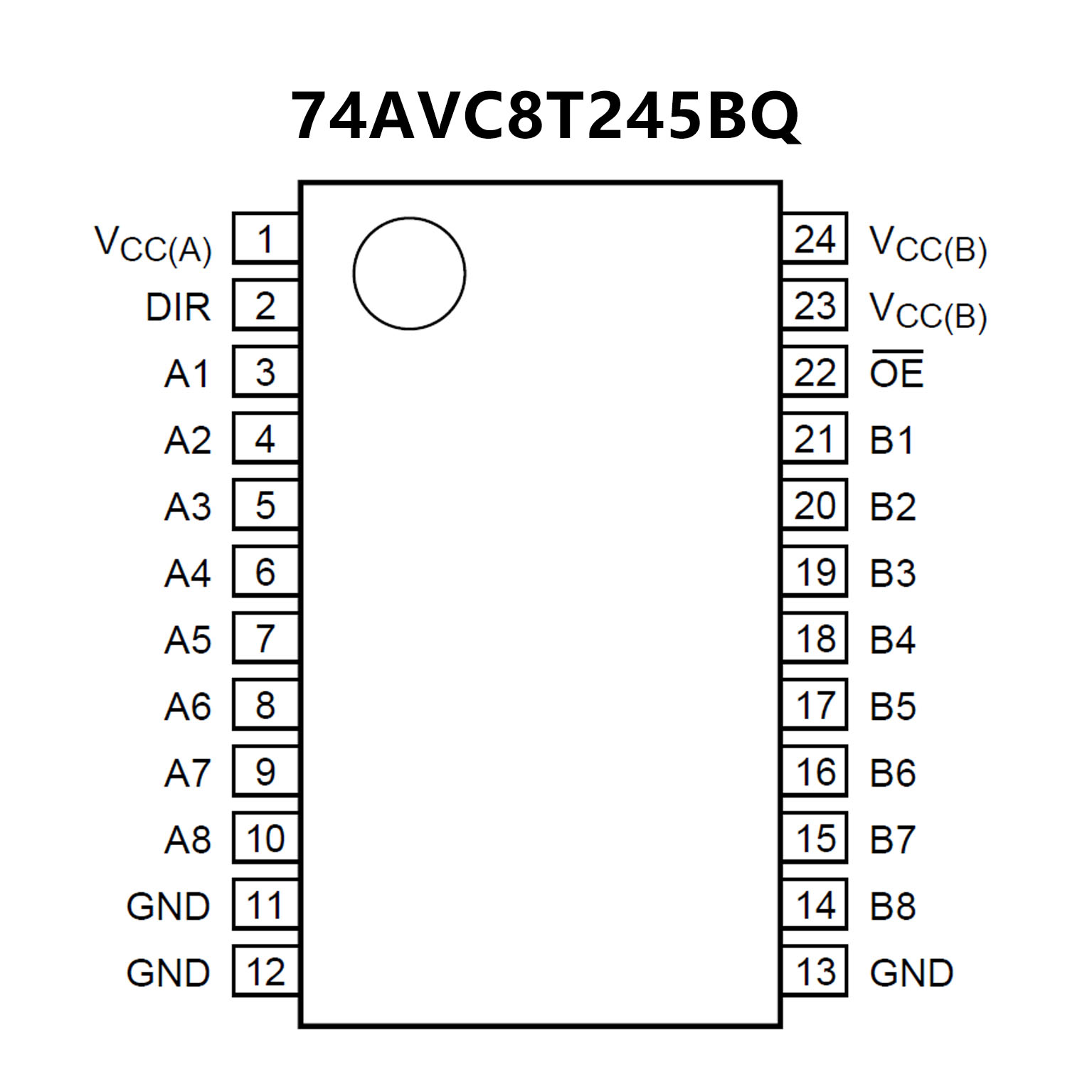

74AVC8T245.pdf•Wide Supply Voltage Range:
VCCA: 0.8V to 3.6V
VCCB: 0.8V to 3.6V
•Typically Data Rates:
260Mbit/s (≥ 1.1V to 3.3V Translation)
260Mbit/s (≥ 1.1V to 2.5V Translation)
210Mbit/s (≥ 1.1V to 1.8V Translation)
150Mbit/s (≥ 1.1V to 1.5V Translation)
100Mbit/s (≥ 1.1V to 1.2V Translation)
•Suspend Mode
•Inputs Accept Voltages up to 3.6V
•IOFF Circuitry Provides Partial Power-Down Mode
Operation
•-40℃ to +125℃ Operating Temperature Range
•Available in a Green TQFN-5.5×3.5-24L Package
•Wide supply voltage range:
VCC(A): 0.8 V to 3.6 V
VCC(B): 0.8 V to 3.6 V
•Complies with JEDEC standards:
JESD8-12 (0.8 V to 1.3 V)
JESD8-11 (0.9 V to 1.65 V)
JESD8-7 (1.2 V to 1.95 V)
JESD8-5 (1.8 V to 2.7 V)
JESD8-B (2.7 V to 3.6 V)
•ESD protection:
HBM JESD22-A114E Class 3B exceeds 8000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101C exceeds 1000 V
•Maximum data rates:
380 Mbit/s (≥ 1.8 V to 3.3 V translation)
260 Mbit/s (≥ 1.1 V to 3.3 V translation)
260 Mbit/s (≥ 1.1 V to 2.5 V translation)
210 Mbit/s (≥ 1.1 V to 1.8 V translation)
150 Mbit/s (≥ 1.1 V to 1.5 V translation)
100 Mbit/s (≥ 1.1 V to 1.2 V translation)
