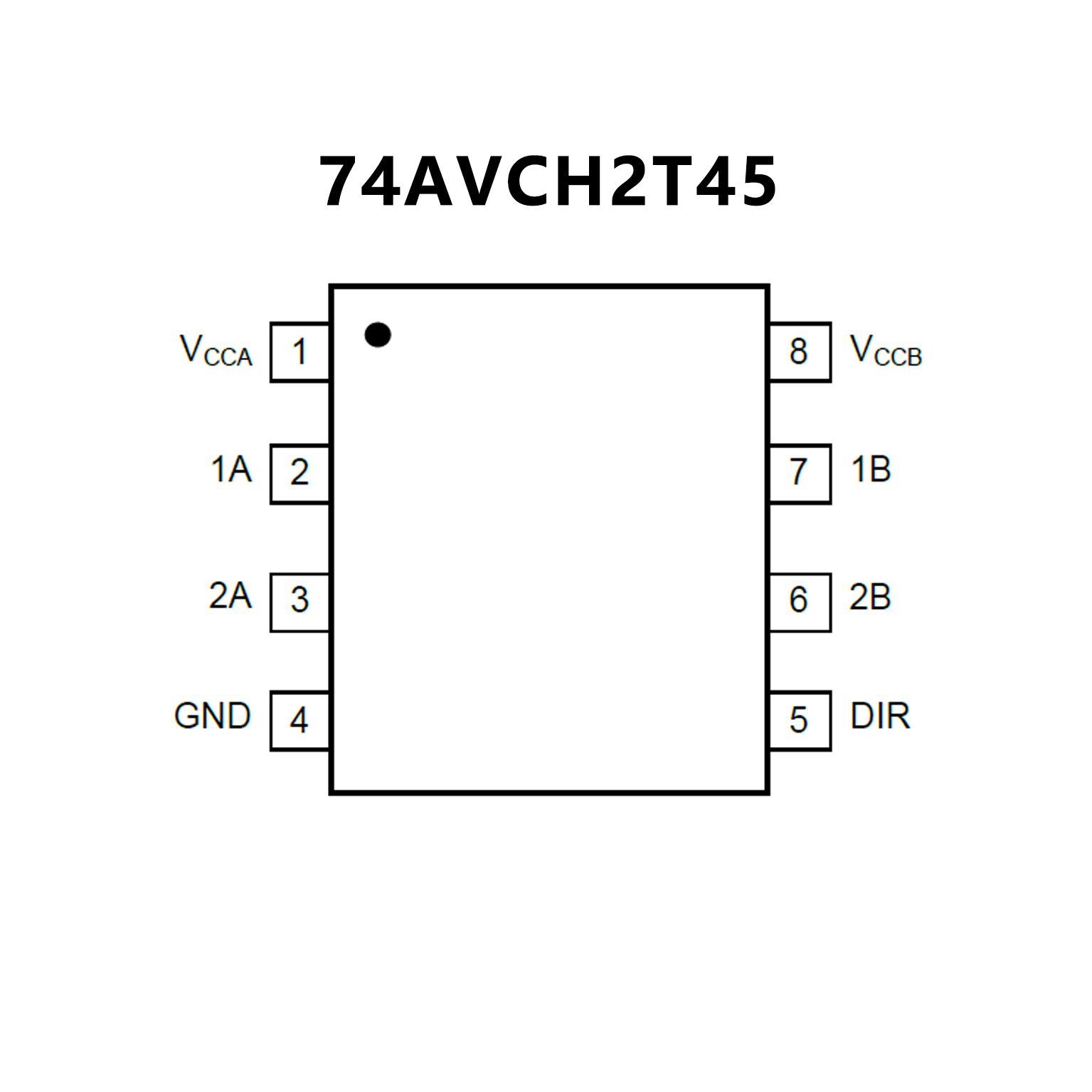

74AVCH2T45.pdf• VCCA Supply Voltage Range: 0.8V to 3.6V
• VCCB Supply Voltage Range: 0.8V to 3.6V
• Inputs Accept Voltages up to 3.6V
• +12mA/-12mA Output Current
• Data Rates:
500Mbps (1.8V to 3.3V Translation)
320Mbps (< 1.8V to 3.3V Translation)
320Mbps (Translate to 2.5V or 1.8V)
280Mbps (Translate to 1.5V)
240Mbps (Translate to 1.2V)
• Outputs in High-Impedance
State when VCCA or VCCB = 0V
• No External Pull-up/Pull-down
Resistors are Required Due to the Bus Hold on Data Inputs
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green VSSOP-8 Package

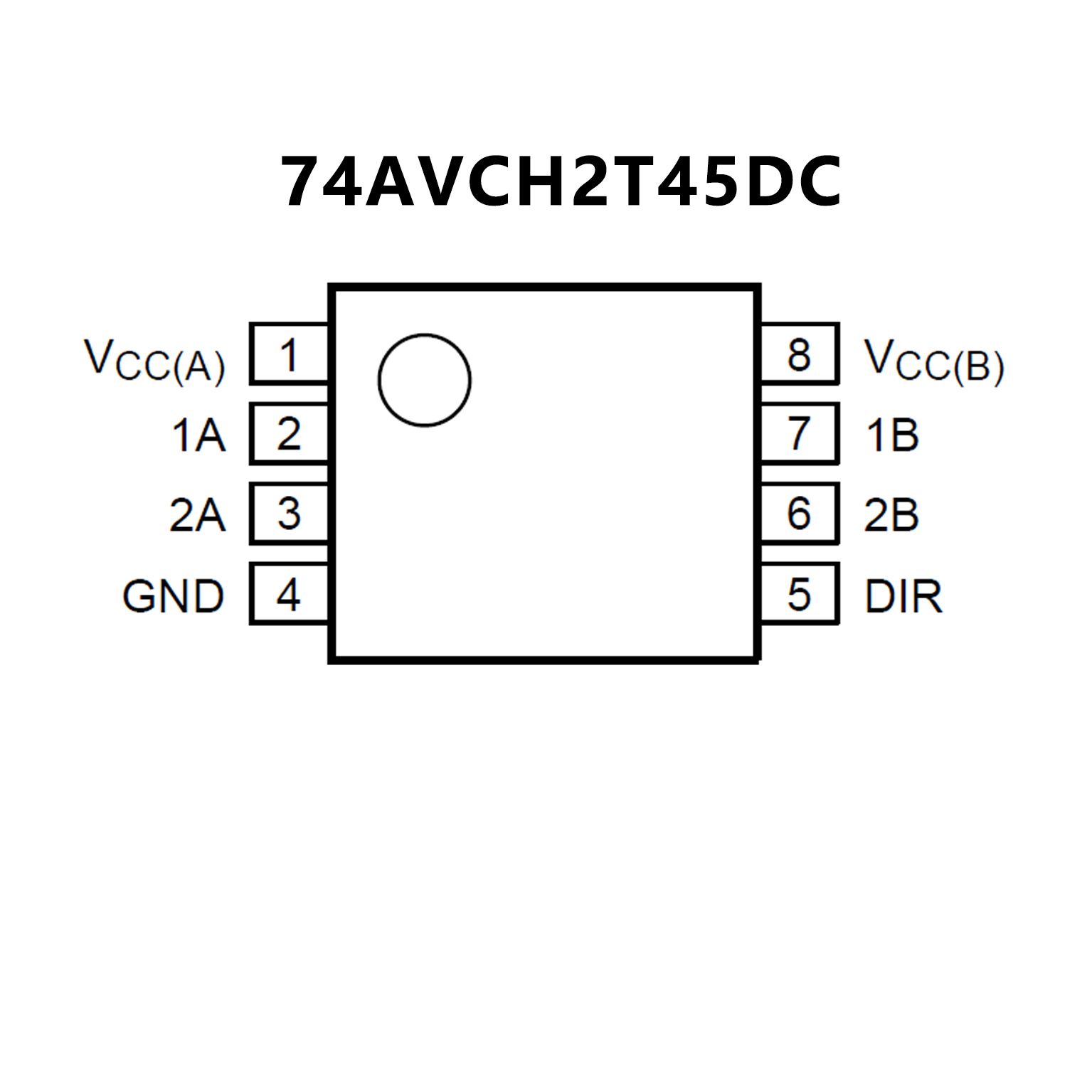

• Wide supply voltage range:
VCC(A): 0.8 V to 3.6 V
VCC(B): 0.8 V to 3.6 V
• High noise immunity
• Complies with JEDEC standards:
JESD8-12 (0.8 V to 1.3 V)
JESD8-11 (0.9 V to 1.65 V)
JESD8-7 (1.2 V to 1.95 V)
JESD8-5 (1.8 V to 2.7 V)
JESD8-B (2.7 V to 3.6 V)
• ESD protection:
HBM JESD22-A114F Class 3B exceeds 8000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101C exceeds 1000 V
• Maximum data rates:
500 Mbps (1.8 V to 3.3 V translation)
320 Mbps (< 1.8 V to 3.3 V translation)
320 Mbps (translate to 2.5 V or 1.8 V)
280 Mbps (translate to 1.5 V)
240 Mbps (translate to 1.2 V)
• Suspend mode
• Bus hold on data inputs
