Octal bus transceiver; 3 state, 74HC245TXS Replace 74HC245PW.
74HC245TXS.pdf优势替代
FEATURES
• Complies with JEDEC standard JESD7A
• Input levels:
• For 74HC245: CMOS level
• For 74HCT245: TTL level
• Octal bidirectional bus interface
• Non-inverting 3-state outputs
• ESD protection:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from 40 Cto+85C and from 40 Cto+125 C

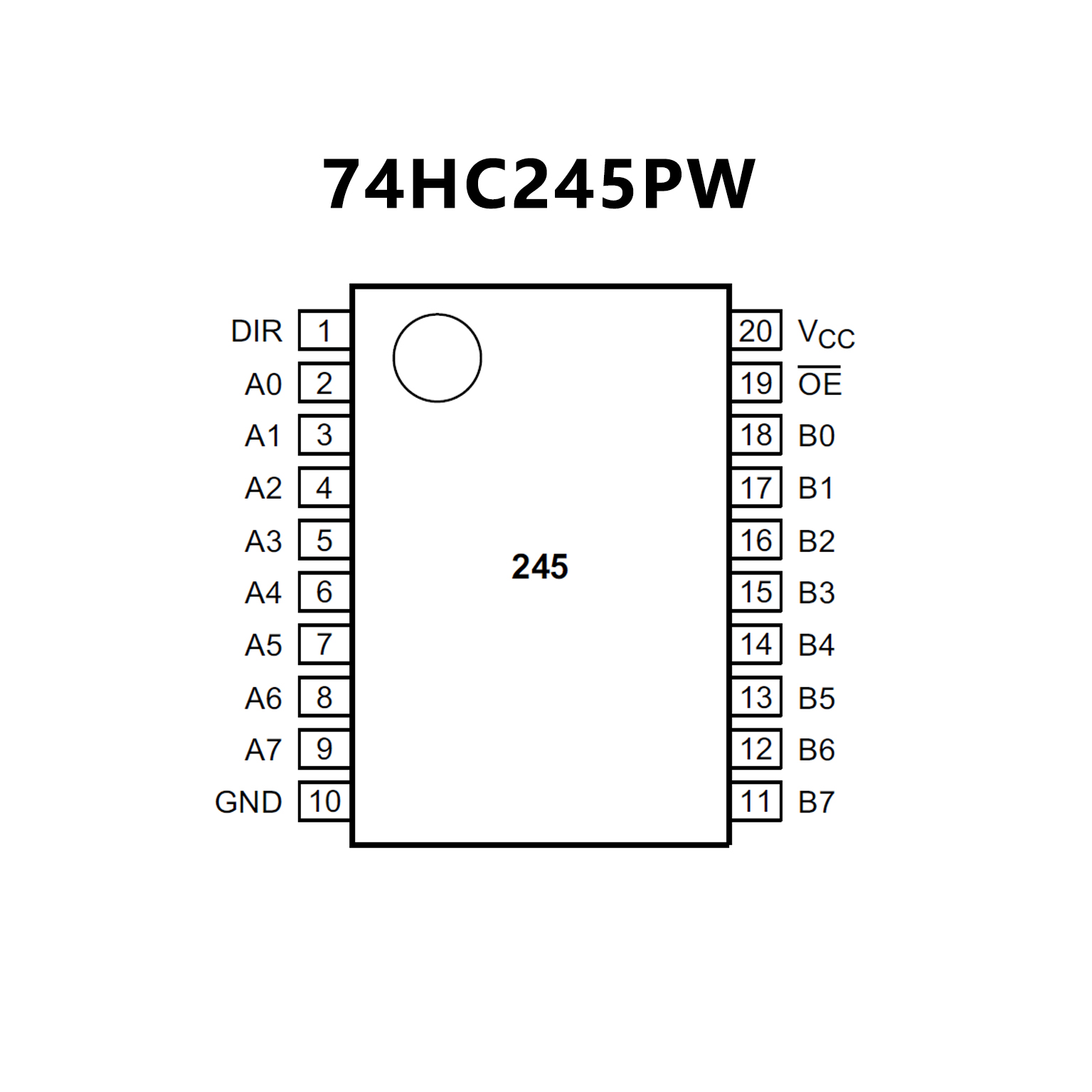

PIN CONFIGUTION
