Single 2-Input Translating AND Gate,74LV1T08 Replace SN74AHC1G09.
74LV1T08
74LV1T08.pdf
74LV1T08.pdfFEATURES
• Single Supply Voltage Translator at 1.8V, 2.5V,
3.3V and 5.0V
• Up Translation:
1.2V to 1.8V at VCC = 1.8V
1.5V to 2.5V at VCC = 2.5V
1.8V to 3.3V at VCC = 3.3V
3.3V to 5.0V at VCC = 5.0V
• Down Translation:
3.3V to 1.8V at VCC = 1.8V
3.3V to 2.5V at VCC = 2.5V
5.0V to 3.3V at VCC = 3.3V
• 5V Tolerant Inputs
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-5 Package

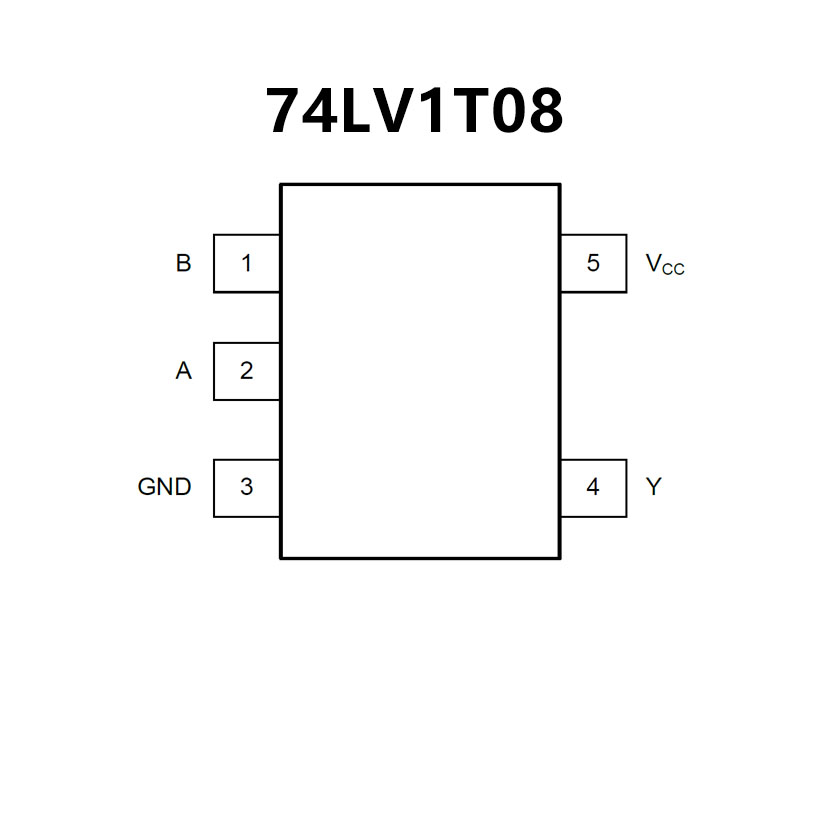

PIN CONFIGUTION
优势替代
FEATURES
• 工作范围：2V 至5.5V
• 最长tpd：6ns（5V 时）
• 电压为5V 时，输出驱动为±8mA
• 所有输入支持施密特触发操作，使得电路允许输入
缓慢上升和下降
• 锁存性能超过250mA，符合JESD 17 规范
• 静电放电(ESD) 保护性能超过JESD 22 规范要求：
2000V 人体模型(A114-A)
1000V 充电器件模型(C101)

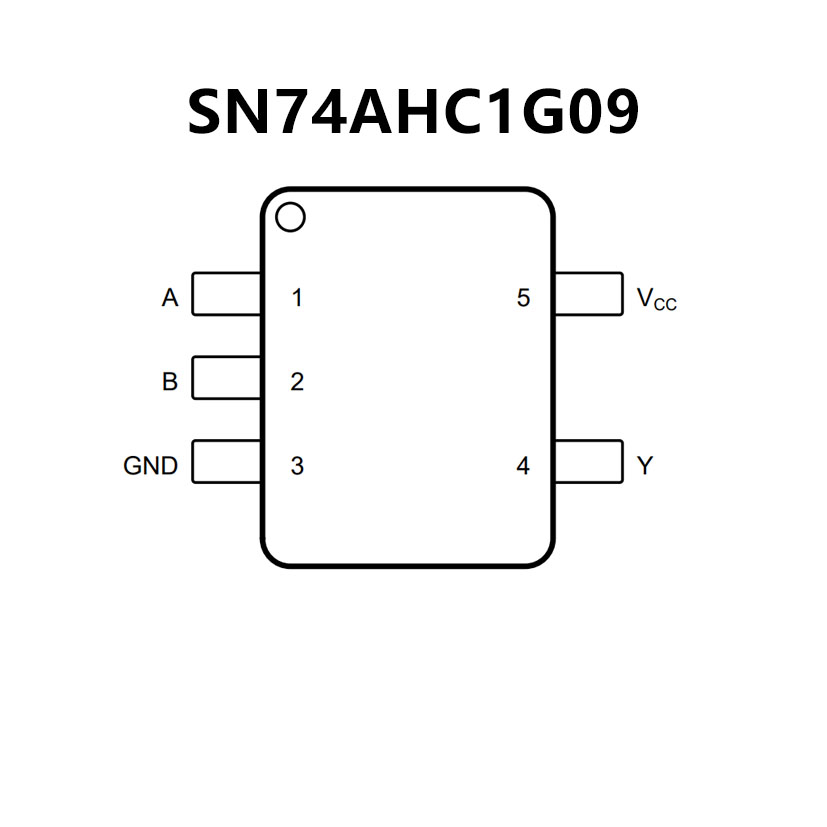

PIN CONFIGUTION
