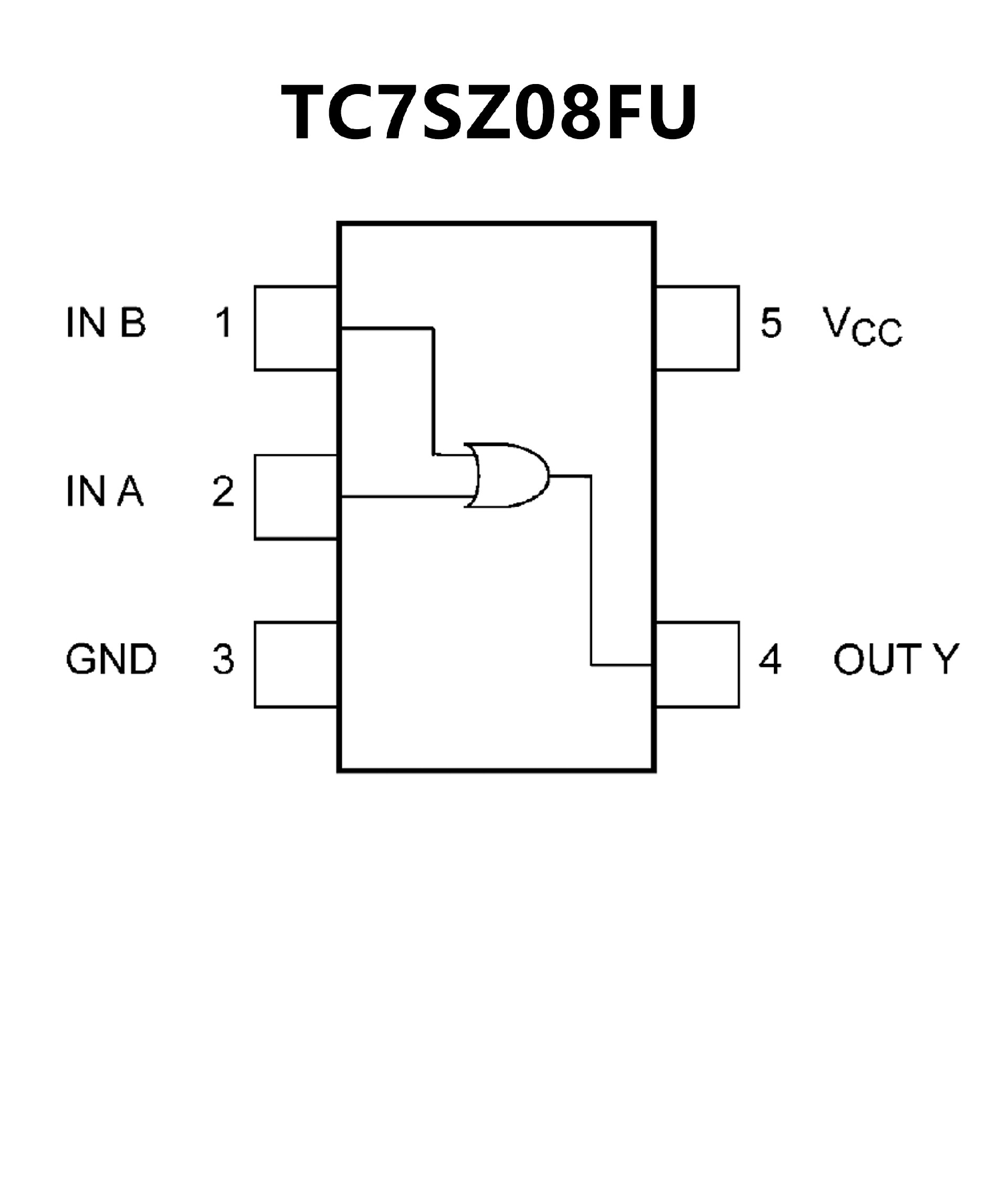

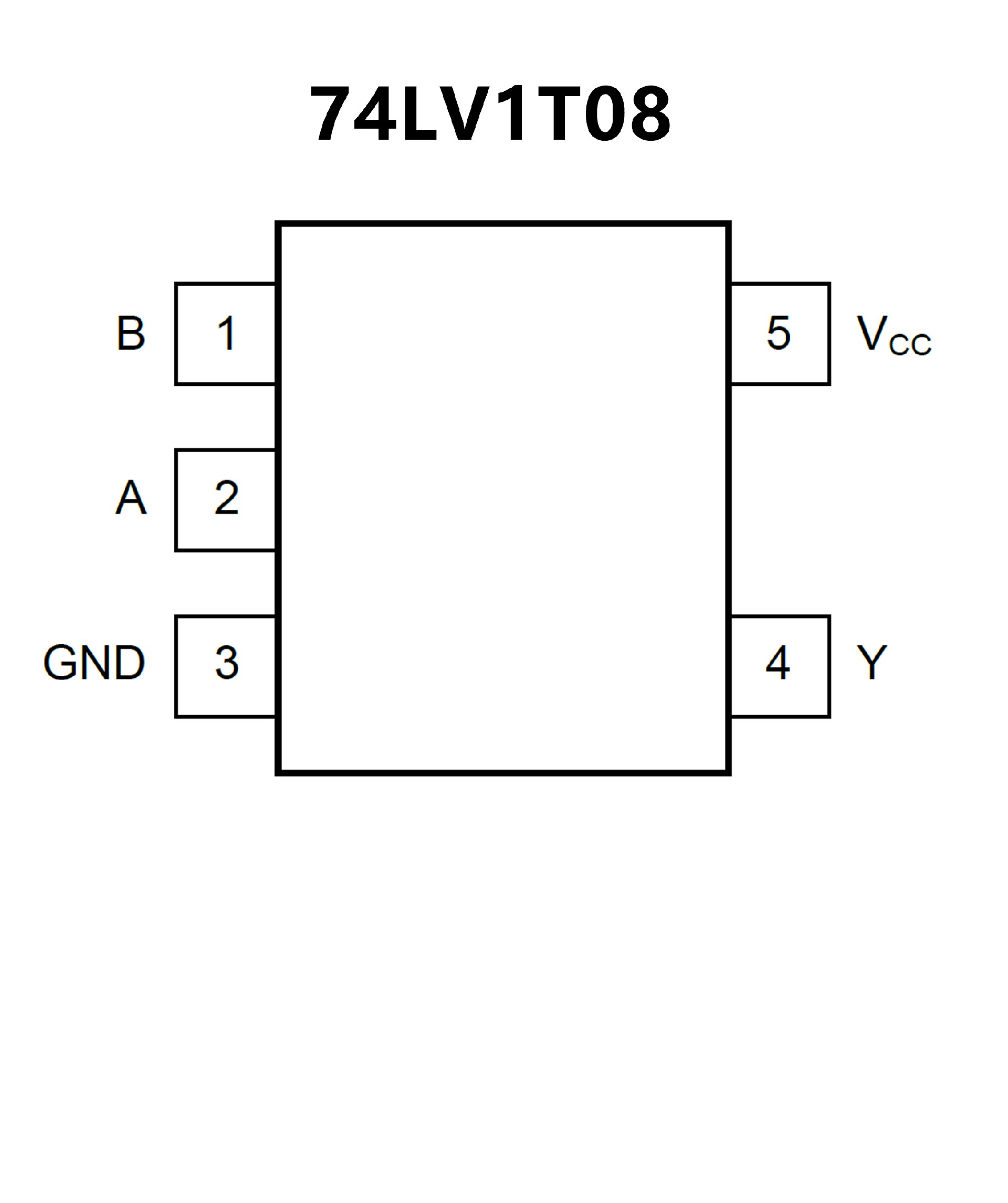

74LV1T08.pdf• Single Supply Voltage Translator at
1.8V, 2.5V, 3.3V and 5.0V
• Up Translation:
1.2V to 1.8V at VCC = 1.8V
1.5V to 2.5V at VCC = 2.5V
1.8V to 3.3V at VCC = 3.3V
3.3V to 5.0V at VCC = 5.0V
• Down Translation:
3.3V to 1.8V at VCC = 1.8V
3.3V to 2.5V at VCC = 2.5V
5.0V to 3.3V at VCC = 3.3V
• 5V Tolerant Inputs
• -40℃ to +125℃ Operating
Temperature Range
• Available in a Green SC70-5 Package
• AEC-Q100 (Rev. H) (Note 1)
• Wide operating temperature
range: Topr = -40 to 125 (Note 2)
• High output current: ±24 mA
(min) at VCC = 3.0 V
• Super high speed operation: tpd = 2.7 ns
(typ.) at VCC = 5.0 V, CL = 50 pF
• Operation voltage range: VCC = 1.65 to 5.5 V
• 5.5 V tolerant inputs
• 5.5 V power down protection output
• Matches the performance of TC74LCX
series when operated at 3.3 V VCC
