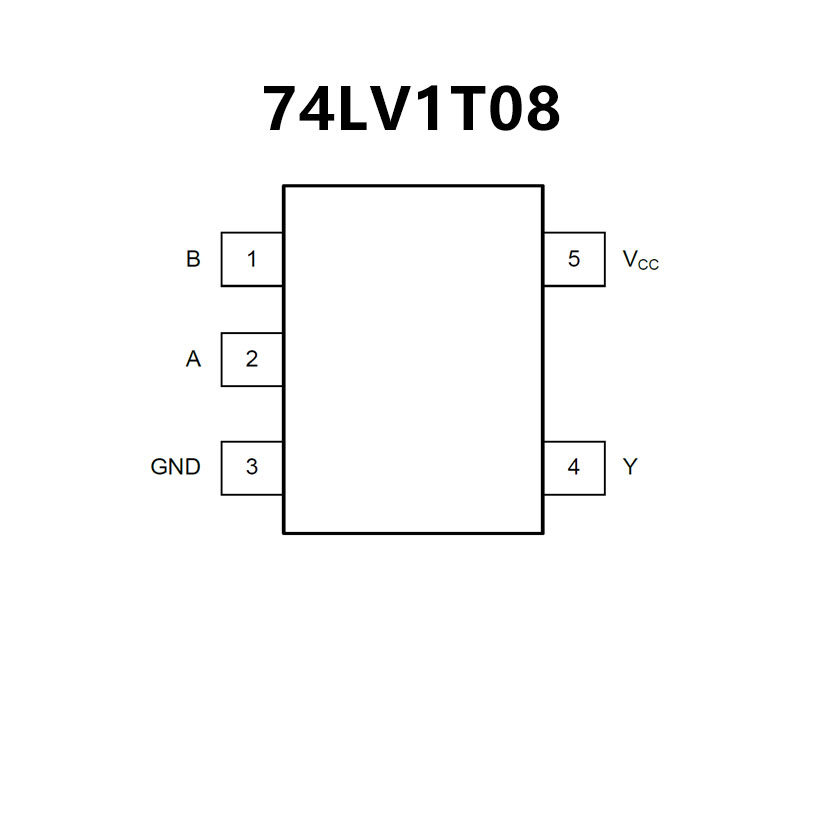

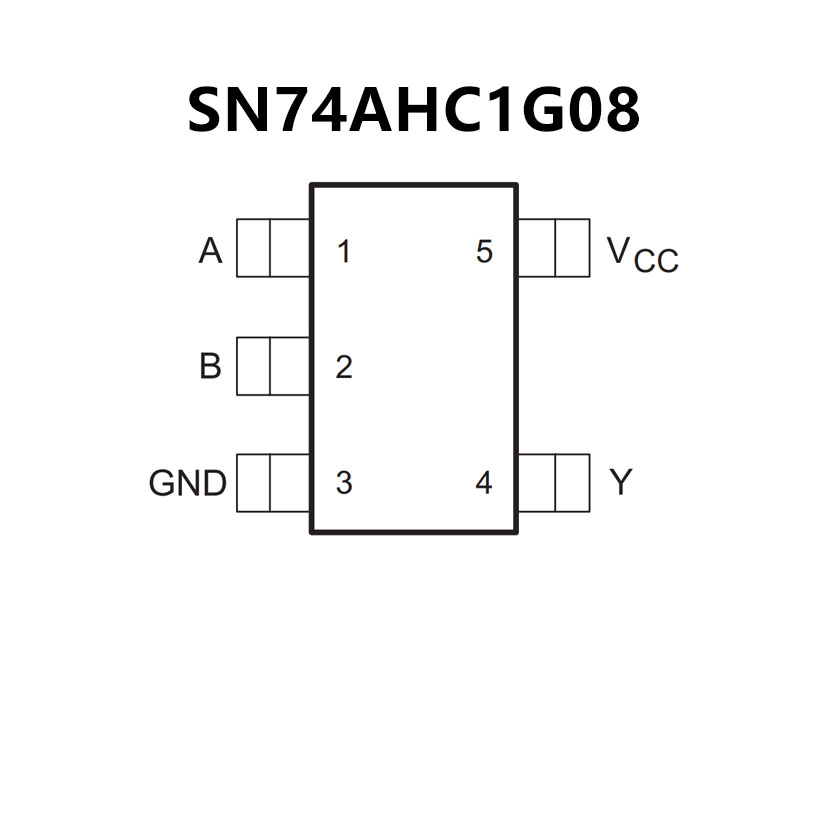

74LV1T08XC5G.pdf• Single Supply Voltage Translator at 1.8V,
2.5V,3.3V and 5.0V
• Up Translation:
1.2V to 1.8V at VCC = 1.8V
1.5V to 2.5V at VCC = 2.5V
1.8V to 3.3V at VCC = 3.3V
3.3V to 5.0V at VCC = 5.0V
• Down Translation:
3.3V to 1.8V at VCC = 1.8V
3.3V to 2.5V at VCC = 2.5V
5.0V to 3.3V at VCC = 3.3V
• 5V Tolerant Inputs
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-5 Package
• Operating Range 2 V to 5.5 V
• Maximum tpd of 7 ns at 5 V
• Low Power Consumption, 10-μA Maximum ICC
• ±8-mA Output Drive at 5 V
• Schmitt-Trigger Action at All Inputs Makes the
Circuit Tolerant for Slower Input Rise and Fall
Time
• Latch-Up Performance Exceeds 250 mA Per
JESD 17
• ESD Protection Exceeds JESD 22
2000-V Human Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
