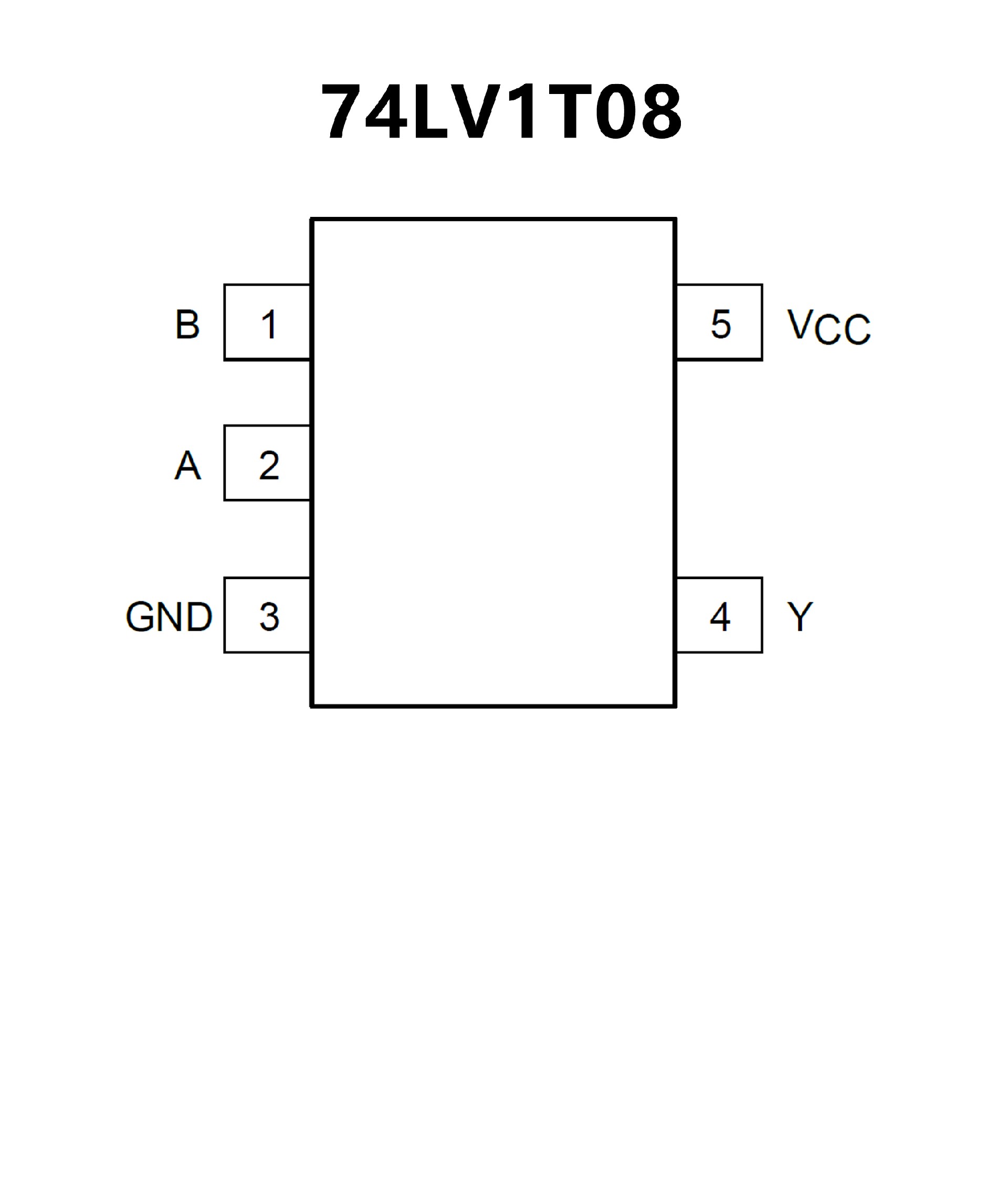

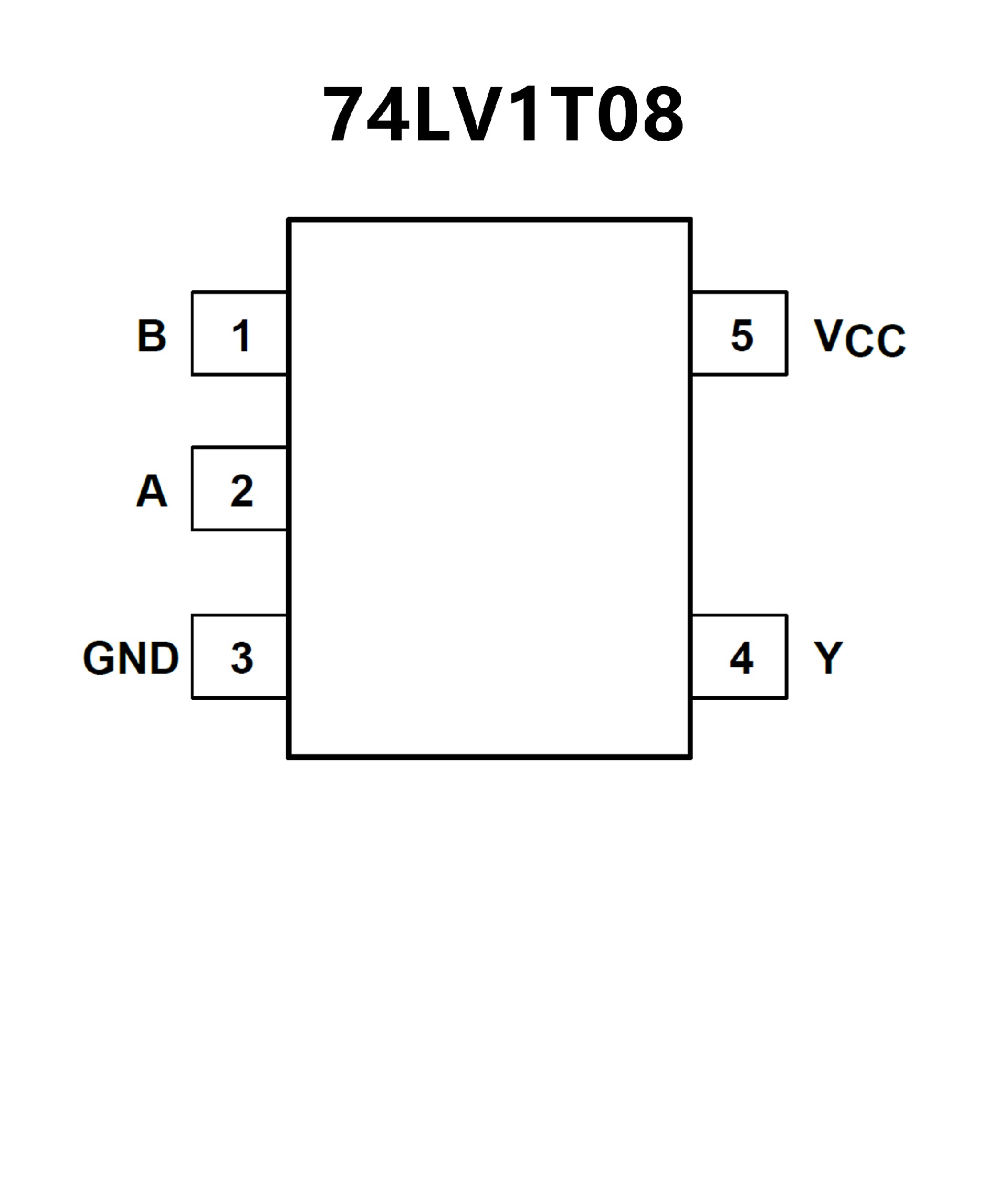

74LV1T08.pdf• Single Supply Voltage Translator at 1.8V, 2.5V,3.3V and 5.0V
• Up Translation:
1.2V to 1.8V at VCC = 1.8V
1.5V to 2.5V at VCC = 2.5V
1.8V to 3.3V at VCC = 3.3V
3.3V to 5.0V at VCC = 5.0V
• Down Translation:
3.3V to 1.8V at VCC = 1.8V
3.3V to 2.5V at VCC = 2.5V
5.0V to 3.3V at VCC = 3.3V
• 5V Tolerant Inputs
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-5 Package
• Available in the Ultra Small 0.64-mm2
Package (DPW) With 0.5-mm Pitch

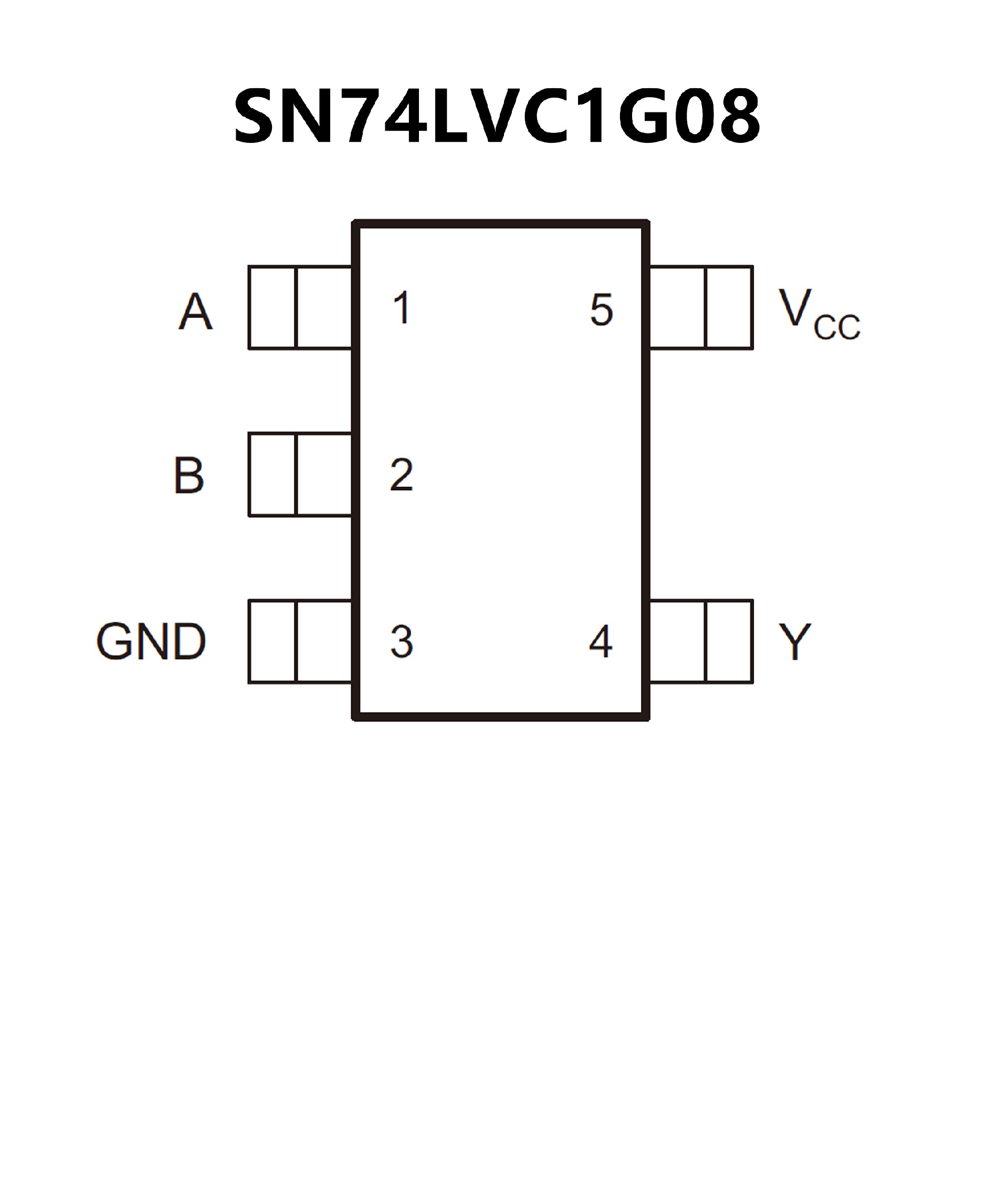

• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Provides Down Translation to VCC
• Max tpd of 3.6 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Ioff Supports Live Insertion, Partial-Power
-Down Mode, and Back Drive Protection
• Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
