Hex Inverter,74LVC04-Replace-74HCU04D.
74LVC04
74LVC04.pdf
74LVC04.pdfFEATURES
• 5V Tolerant Inputs for Interfacing with 5V Logic
• Wide Supply Voltage Range: 1.2V to 3.6V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Inputs Accept Voltages up to 5.5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

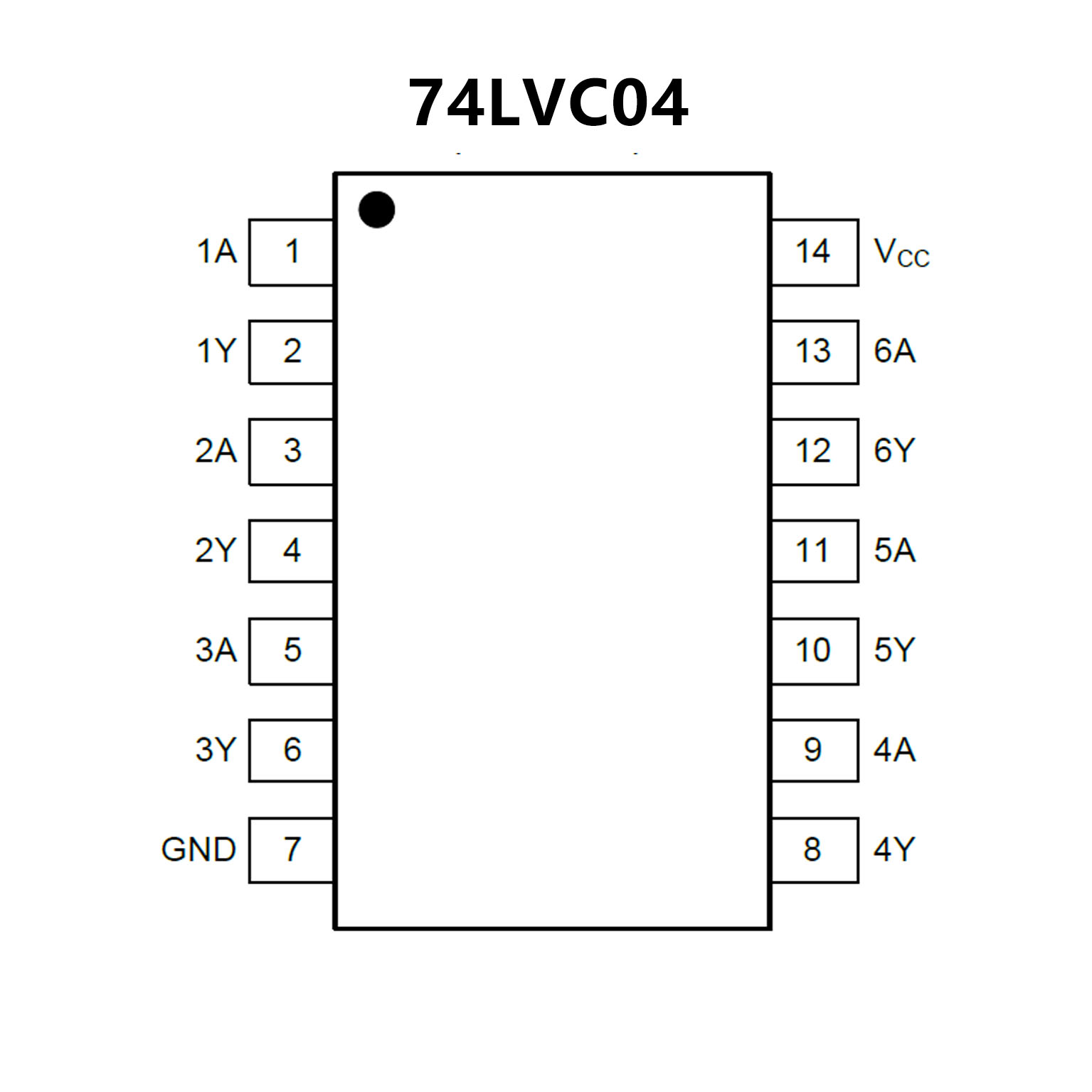

PIN CONFIGUTION
优势替代
FEATURES
• Wide operating temperature range: Topr = -40 to 125℃ (Note 1)
• High speed: tpd = 4 ns (typ.) at VCC = 5 V
• Low power dissipation: ICC = 1.0 µA (max) Ta = 25℃
• Balanced propagation delays: tPLH ≈ tPHL
• Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V

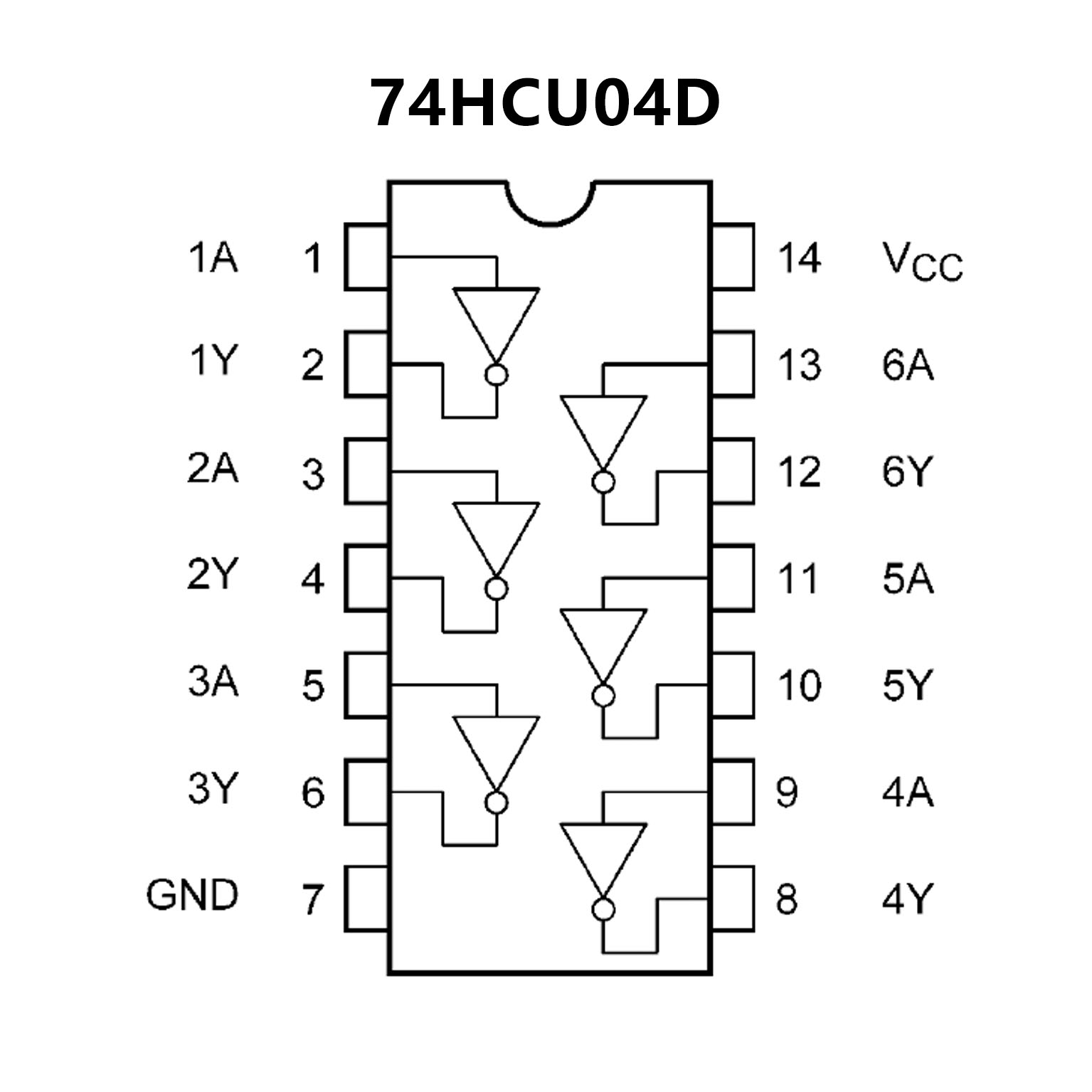

PIN CONFIGUTION
