Hex Inverter,74LVC04XS14GTR-Replace-74AHC04D.
74LVC04XS14GTR
74LVC04XS14GTR.pdf
74LVC04XS14GTR.pdfFEATURES
•5V Tolerant Inputs for Interfacing with 5V Logic
• Wide Supply Voltage Range: 1.2V to 3.6V
•CMOS Low Power Consumption
•Direct Interface with TTL Levels
•Inputs Accept Voltages up to 5.5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package
PIN CONFIGUTION
优势替代
FEATURES
• Balanced propagation delays
•Inputs accept voltages higher than VCC
• Input levels:
For 74AHC04: CMOS level
For 74AHCT04: TTL level
•ESD protection:
HBM EIA/JESD22-A114F exceeds 2000 V
MM EIA/JESD22-A115-A exceeds 200 V
CDM EIA/JESD22-C101C exceeds 1000 V
•Multiple package options
•Specified from-40℃ to +85℃ and from 40 C to +125 ℃

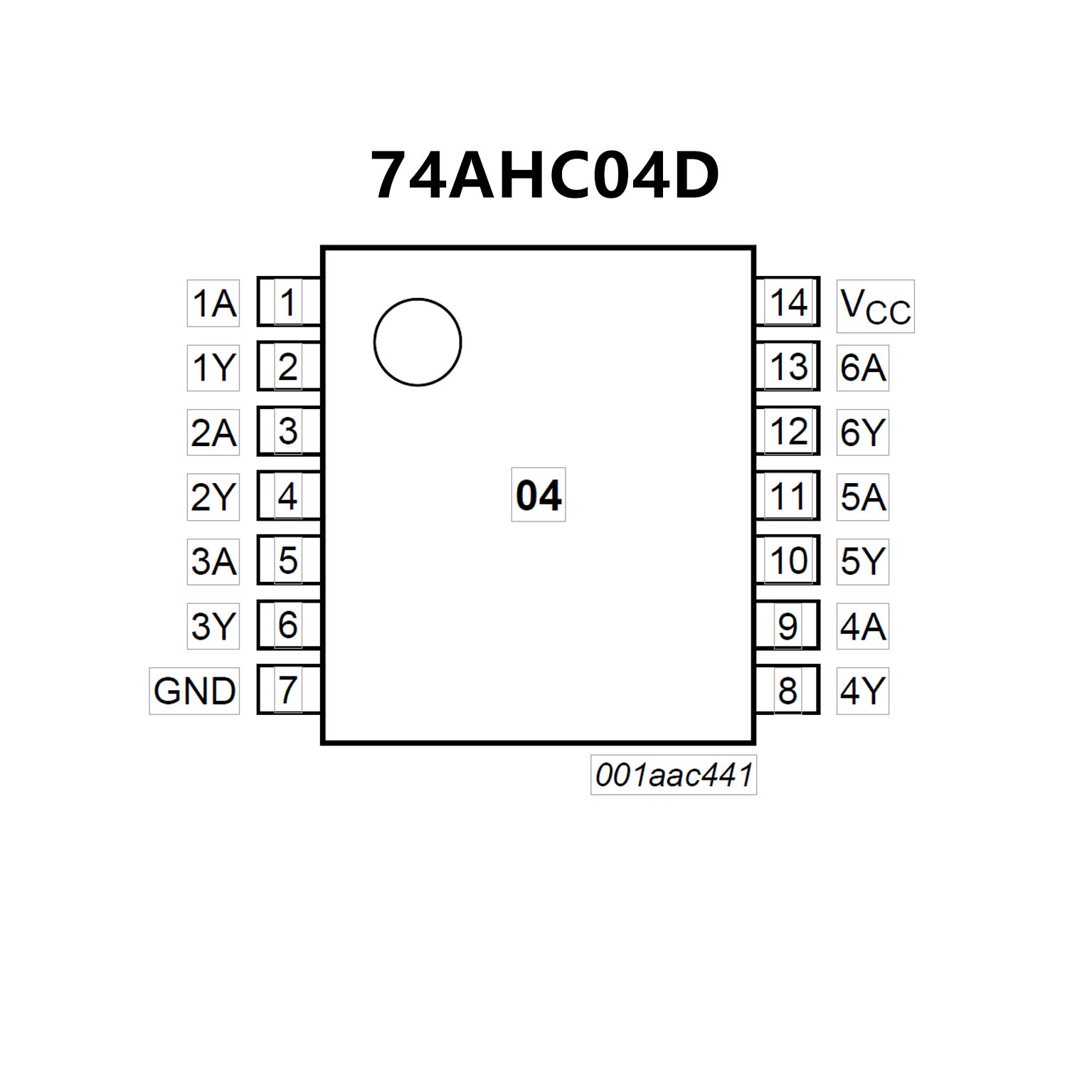

PIN CONFIGUTION
