Hex Inverter,74LVC04XS14GTR-Replace-74LCX06MX.
74LVC04XS14GTR
74LVC04XS14GTR.pdf
74LVC04XS14GTR.pdfFEATURES
• 5V Tolerant Inputs for Interfacing with 5V Logic
• Wide Supply Voltage Range: 1.2V to 3.6V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Inputs Accept Voltages up to 5.5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

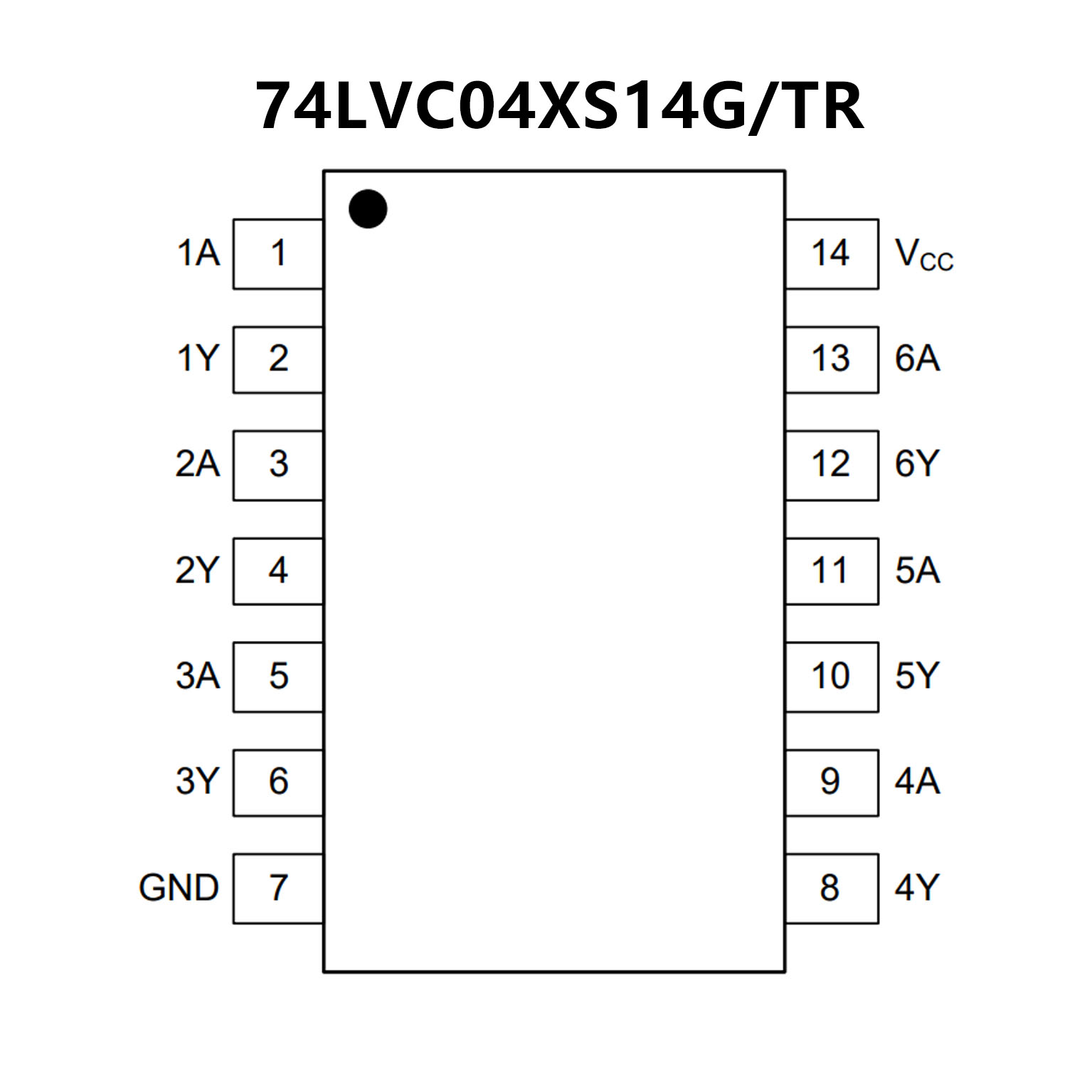

PIN CONFIGUTION
优势替代
FEATURES
• 5V tolerant inputs
• 2.3V–3.6V VCC specifications provided
• 3.7ns tPD max. (VCC = 3.3V), 10µA ICC max.
• Power down high impedance inputs and outputs
• ±24mA output drive (VCC = 3.0V)
• lmplements proprietary noise/EMI reduction circuitry
• Latch-up performance exceeds 500mA
• ESD performance:
Human body model > 2000V
Machine model > 200V

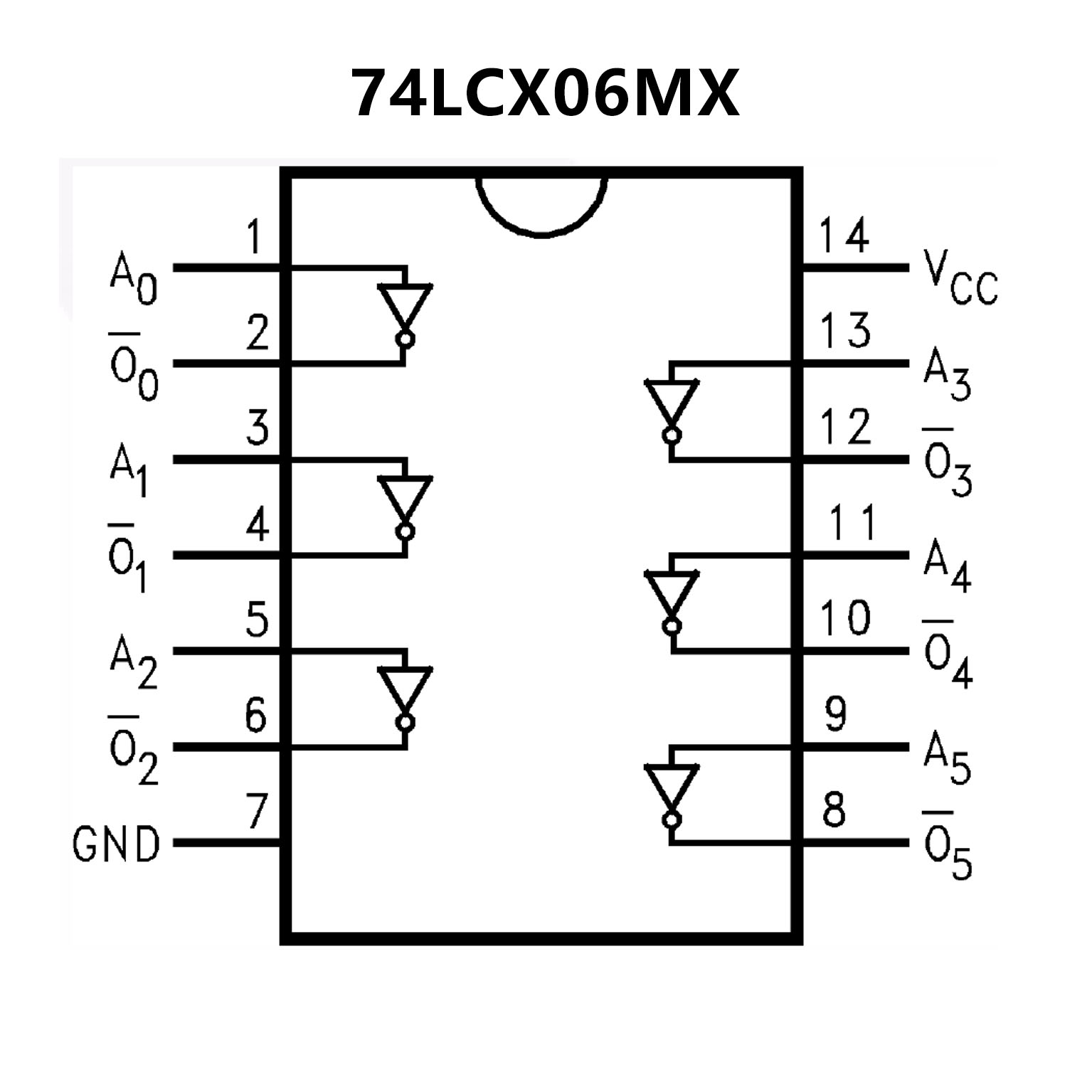

PIN CONFIGUTION
