Quad 2 Input AND Gate, 74LVC08 Replace SN74ACT08.
74LVC08
74LVC08.pdf
74LVC08.pdfFEATURES
• 5V Tolerant Inputs for Interfacing with 5V Logic
• Wide Supply Voltage Range: 1.2V to 3.6V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages

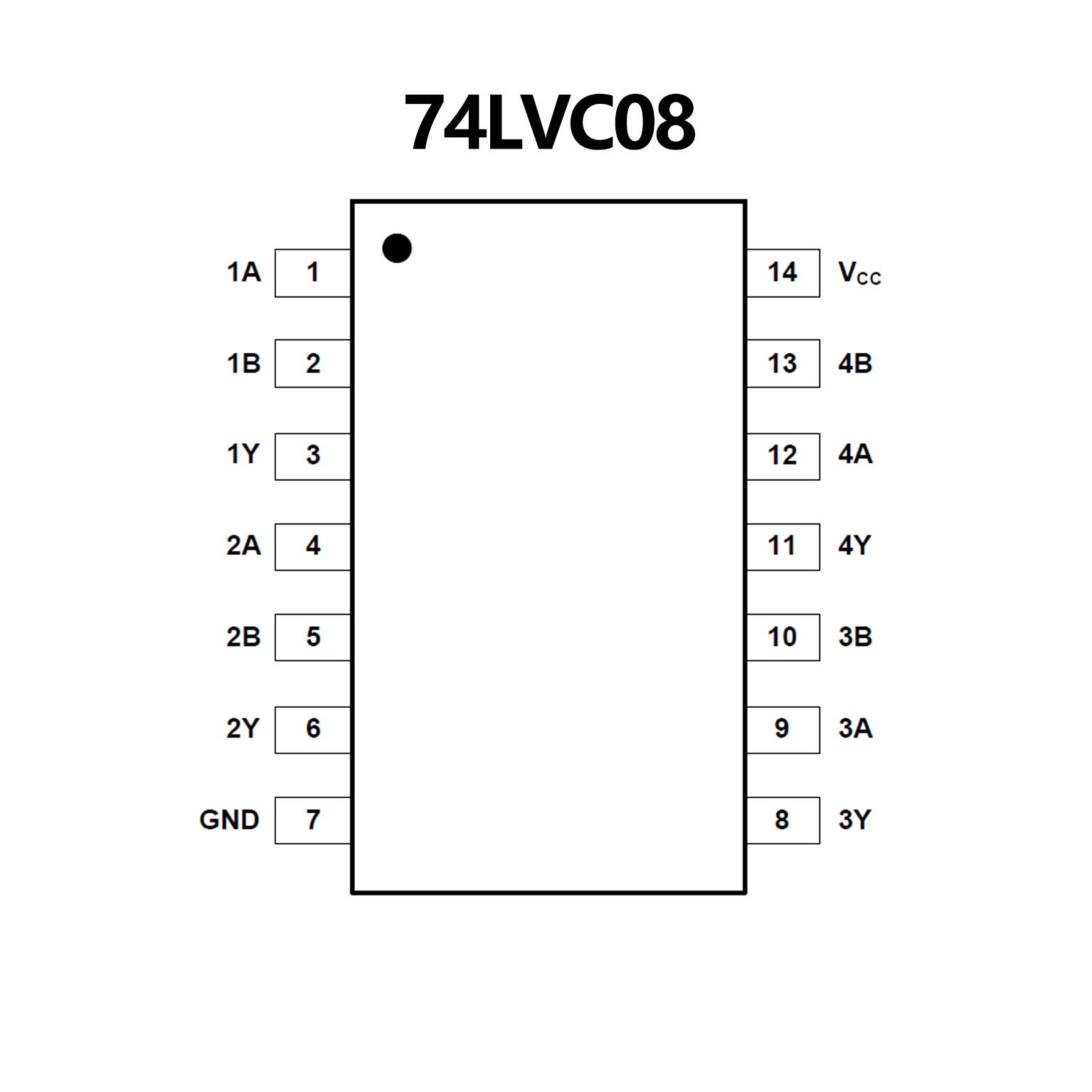

PIN CONFIGUTION
优势替代
FEATURES
• 4.5-V to 5.5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 10 ns at 5 V
• Inputs Are TTL-Voltage Compatible

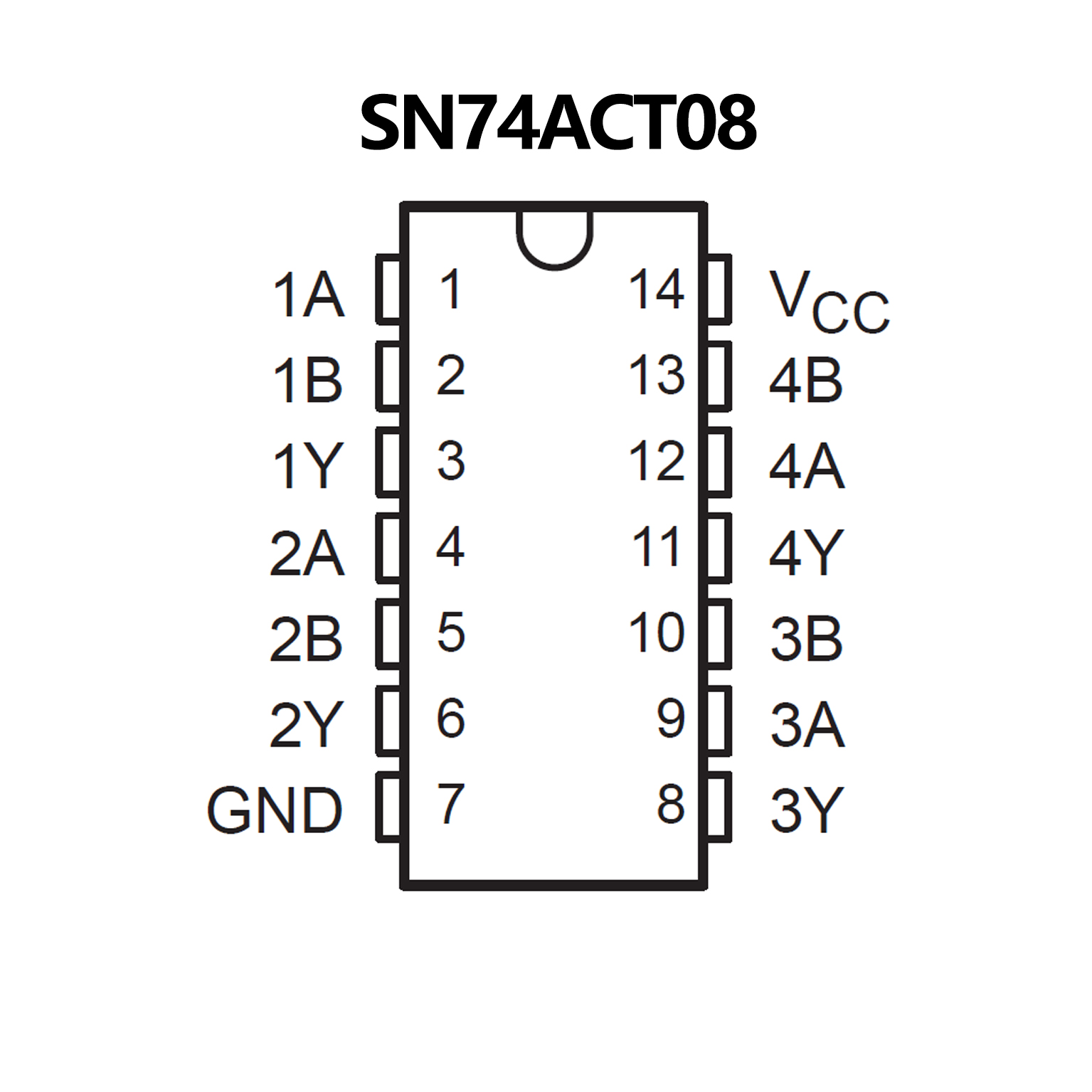

PIN CONFIGUTION
