Quad 2-Input AND Gate,74LVC08XS14G Replace SN74HC08DR.
74LVC08XS14G
74LVC08XS14G.pdf
74LVC08XS14G.pdfFEATURES
• 5V Tolerant Inputs for Interfacing with 5V Logic
• Wide Supply Voltage Range: 1.2V to 3.6V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages

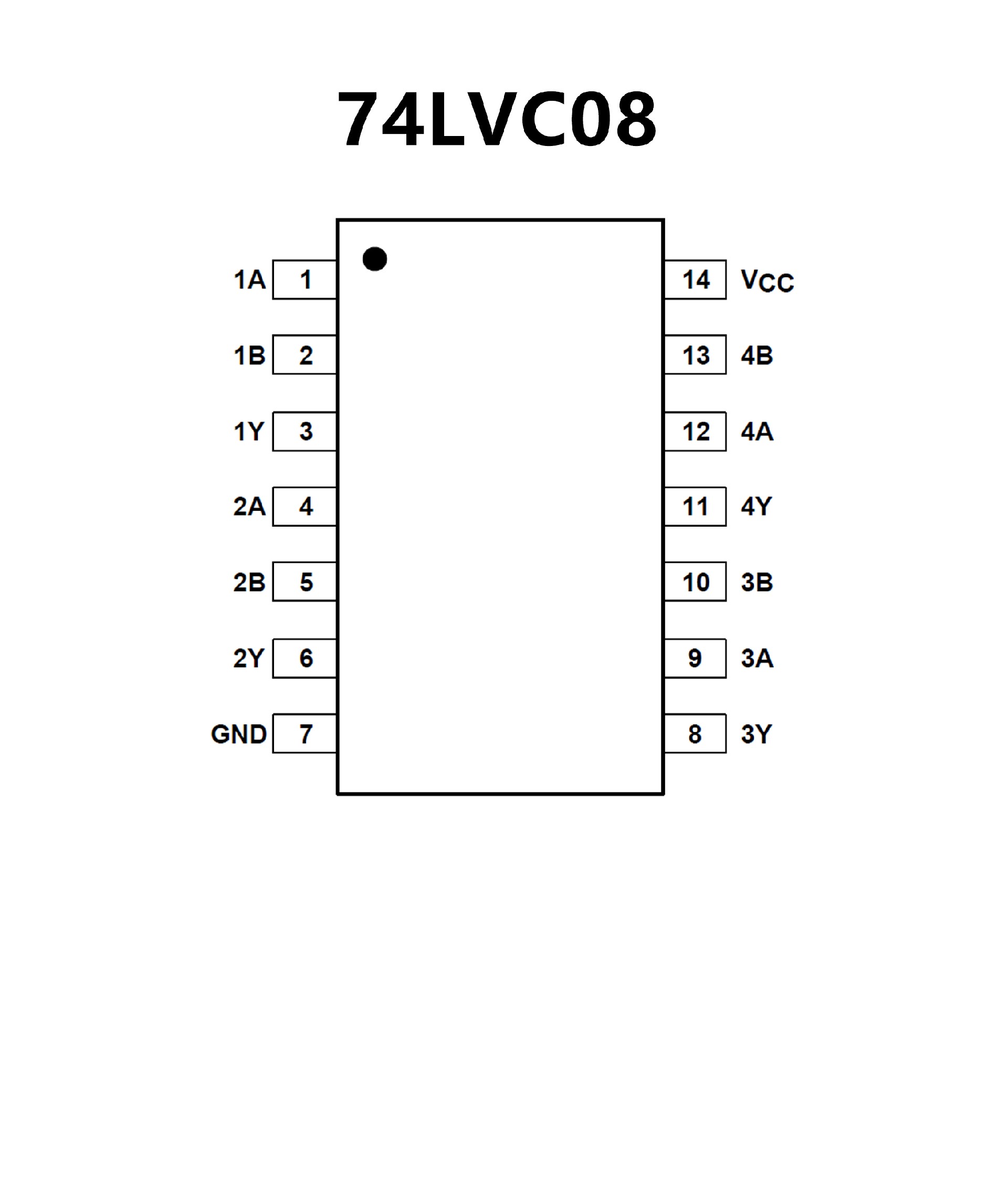

PIN CONFIGUTION
优势替代
FEATURES
• 缓冲输入
• 宽工作电压范围：2V 至 6V
• 宽工作温度范围：
–40°C 至 +85°C
• 支持多达 10 个 LSTTL 负载的扇出
• 与 LSTTL 逻辑 IC 相比，可显著降低功耗
PIN CONFIGUTION
