74LVC08XTS14G.pdf• 5V Tolerant Inputs for Interfacing with 5V Logic
• Wide Supply Voltage Range: 1.2V to 3.6V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• -40℃ to +125℃ Operating Temperature Range

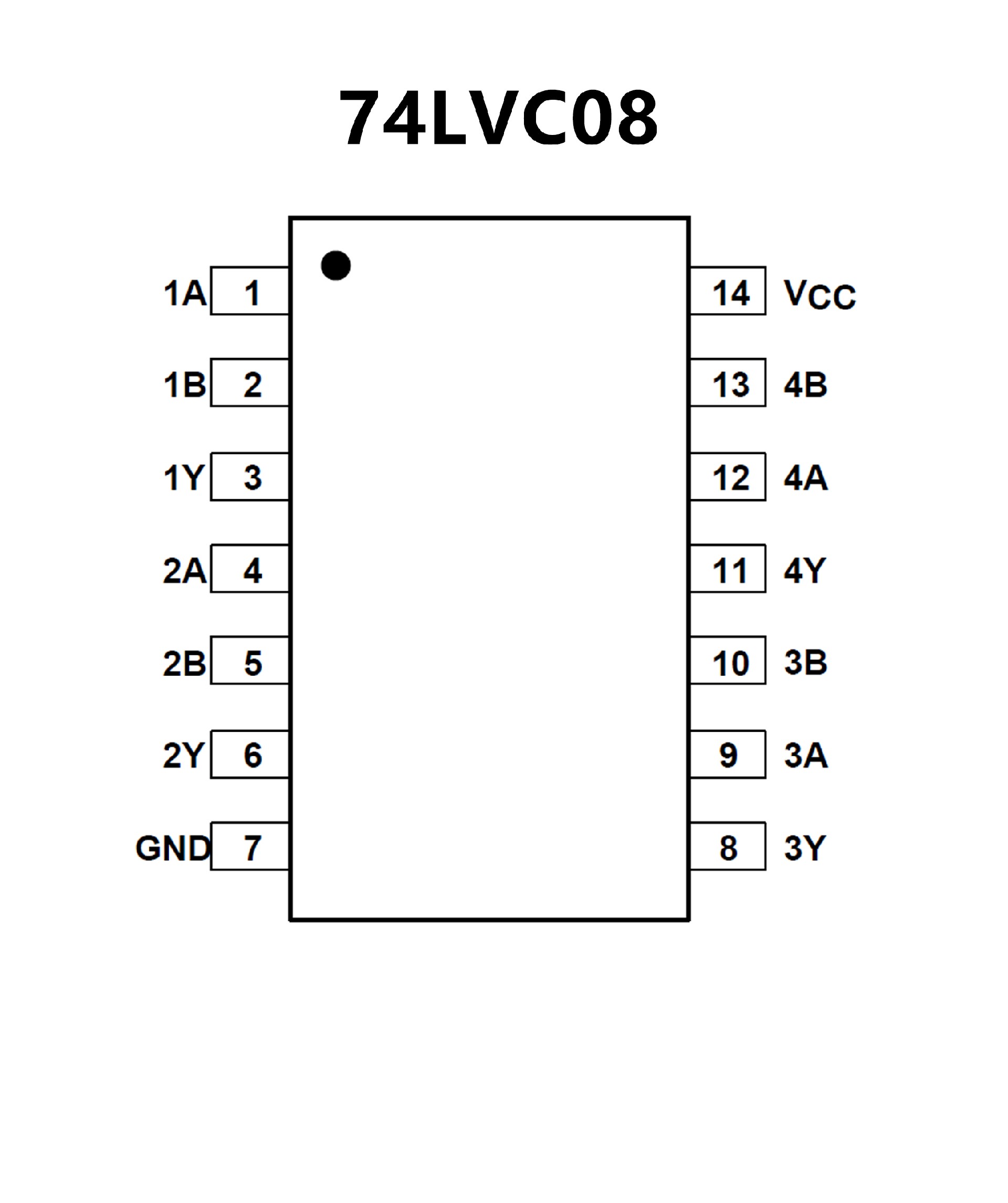

• Available in Green SOIC-14 and TSSOP-14 Packages
• Latch-Up Performance Exceeds 250 mA
Per JESD 17
• ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include
Testing of All Parameters.
• SN74LVC04A Operates From 1.65 V to 3.6 V
• SN54LVC04A Operates From 2.0 V to 3.6 V

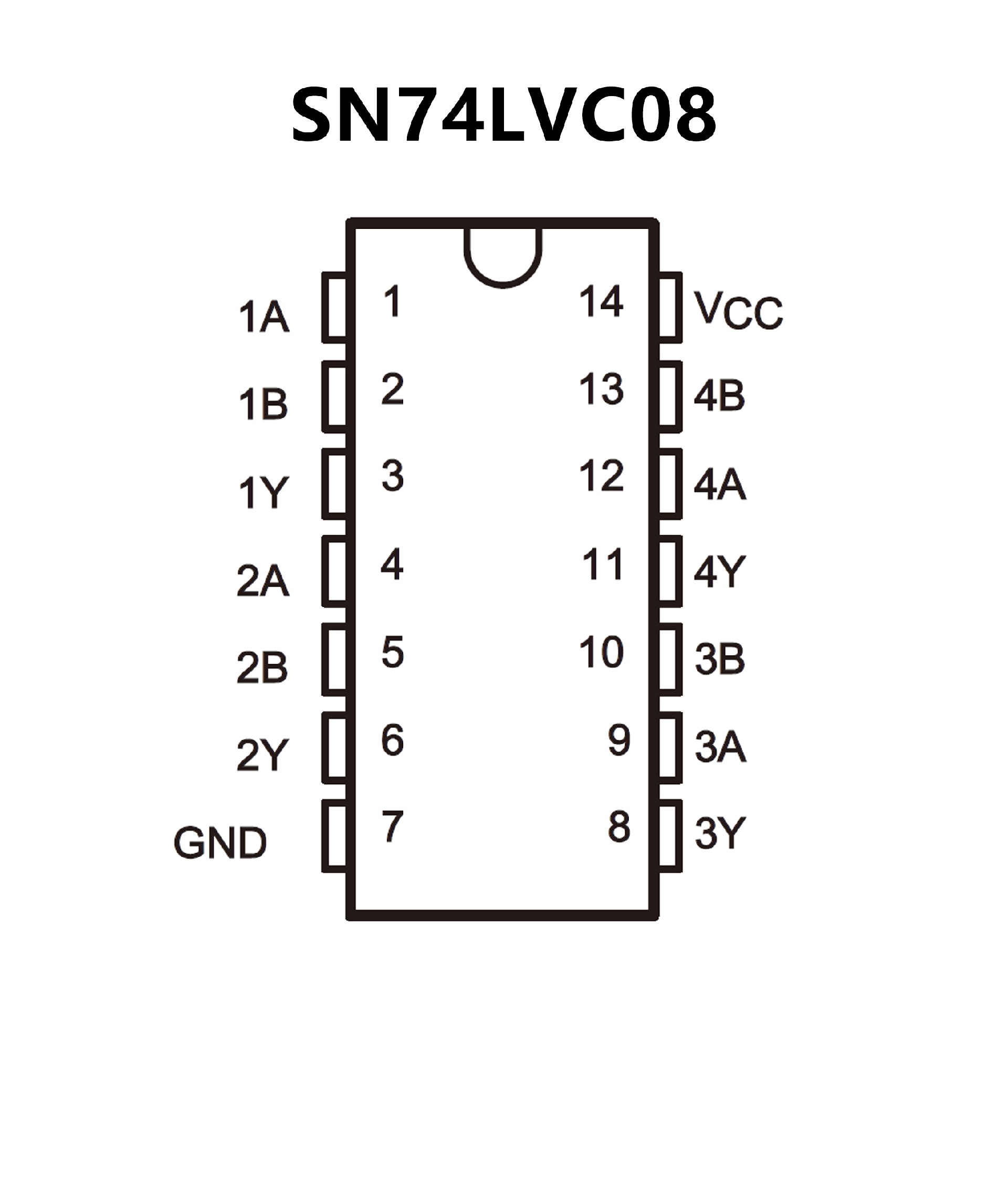

• SNx4LVC08A Specified From –40°C to +85°C
and –40°C to +125°C
• SN54LVC08A Specified From –55°C to +125°C
• Inputs Accept Voltages to 5.5 V
• Max tpd of 4.1 ns at 3.3 V
• Typical VOLP (Output Ground Bounce)
<0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot)
>2 V at VCC = 3.3 V, TA = 25°C
