Quad 2-Input AND Gate,74LVC08XTS14GTR-Replace-74LVC08APW-118.
74LVC08XTS14GTR
74LVC08XTS14GTR.pdf
74LVC08XTS14GTR.pdfFEATURES
• 5V Tolerant Inputs for Interfacing with 5V Logic
• Wide Supply Voltage Range: 1.2V to 3.6V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages

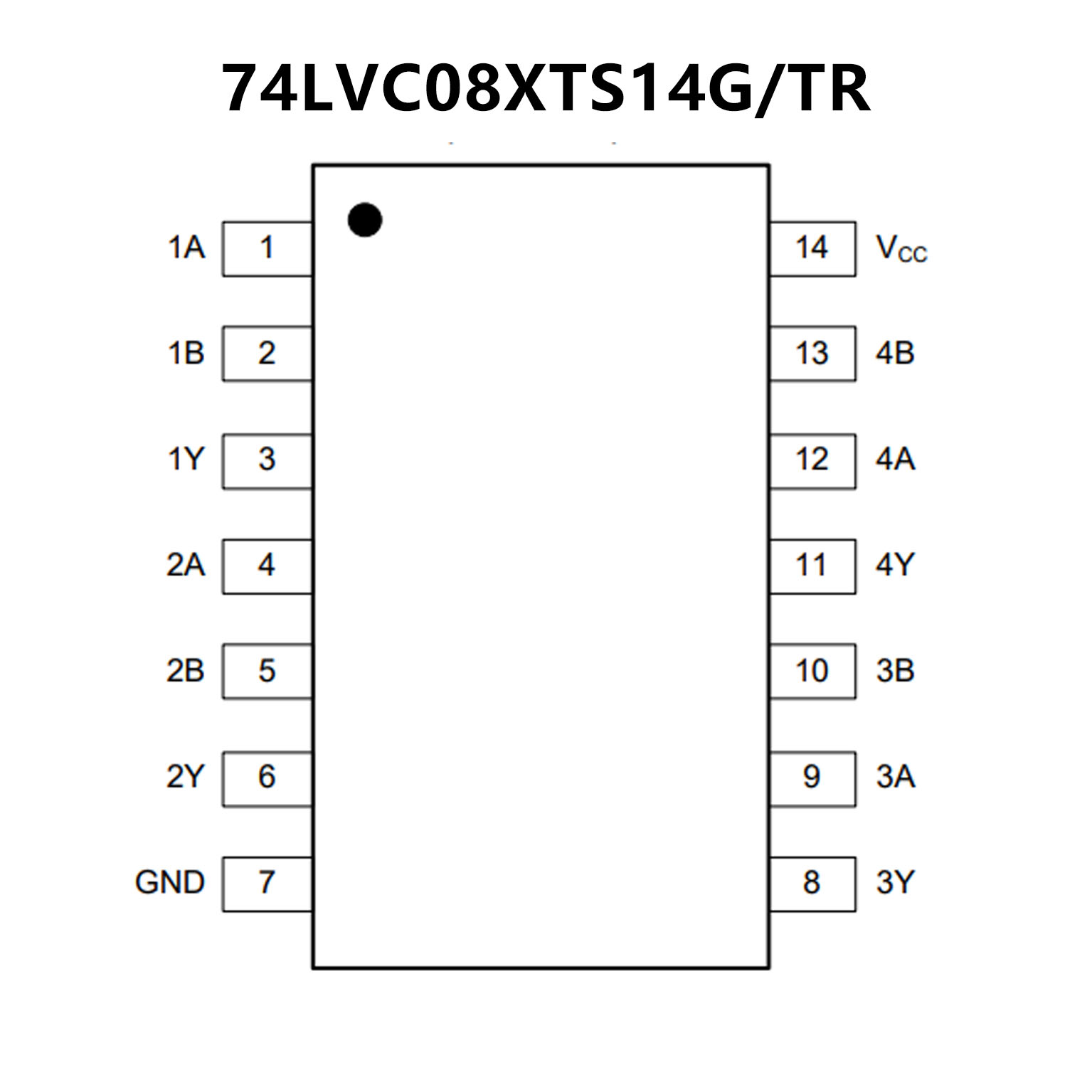

PIN CONFIGUTION
优势替代
FEATURES
• Overvoltage tolerant inputs to 5.5 V
• Wide supply voltage range from 1.2 V to 3.6 V
• CMOS low power consumption
• Direct interface with TTL levels
• Complies with JEDEC standard:
JESD8-7A (1.65 V to 1.95 V)
JESD8-5A (2.3 V to 2.7 V)
JESD8-C/JESD36 (2.7 V to 3.6 V)
• ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-B exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
• Specified from -40 °C to +85 °C and -40 °C to +125 °C

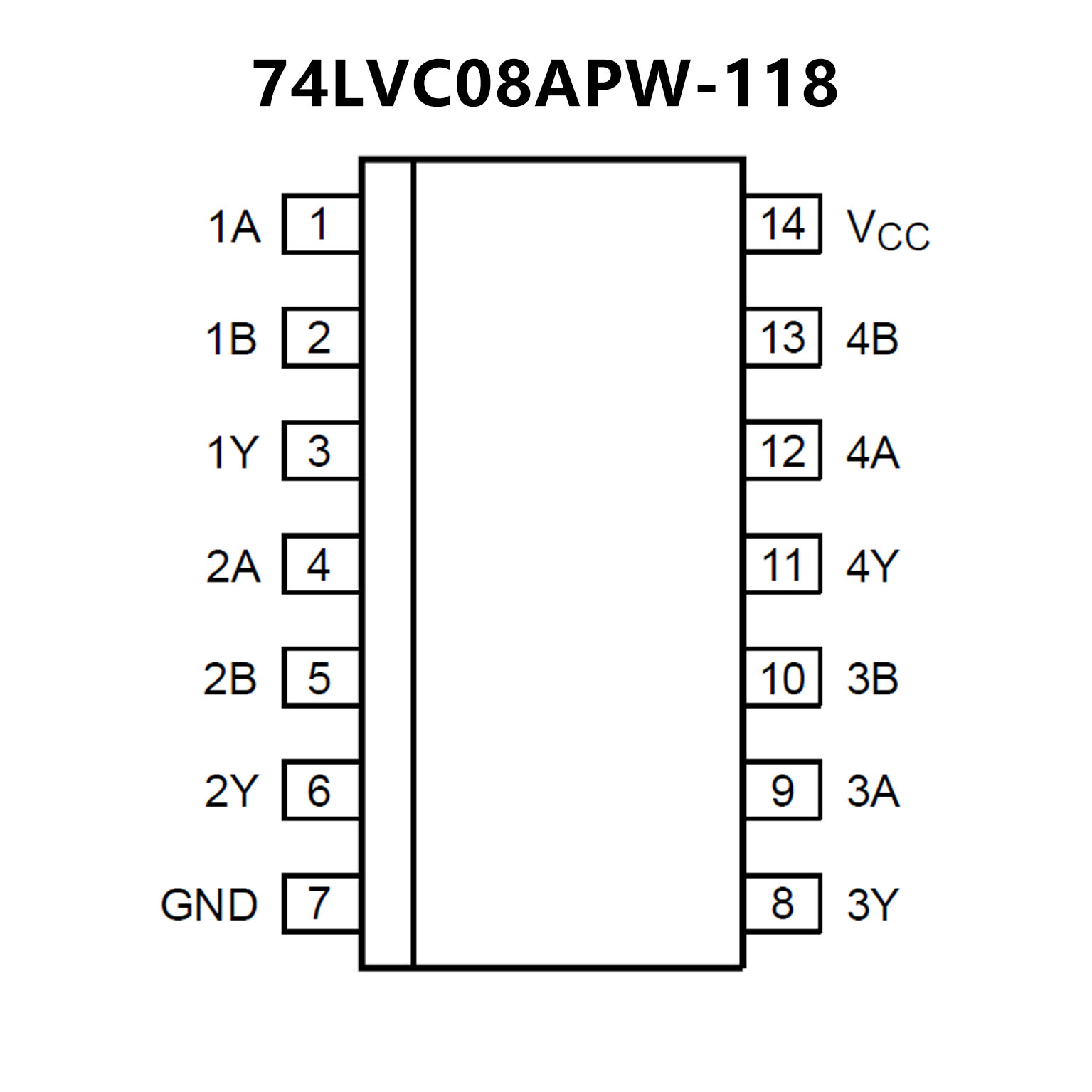

PIN CONFIGUTION
