Quadruple Bus Buffer Gate With 3 State Outputs, 74LVC126A Replace SN74LVC126A
74LVC126A.pdf优势替代
FEATURES
• Operates From 1.65 V to 3.6 V
• Specified From –40°C to +125°C
• Inputs Accept Voltages up to 5.5 V
• Maximum tpd of 4.7 ns at 3.3 V
• Typical VOLP (Output Ground Bounce),
<0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot),
• 2 V at VCC = 3.3 V, TA = 25°C
• Latch-Up Performance Exceeds 250 mA Per JESD 17

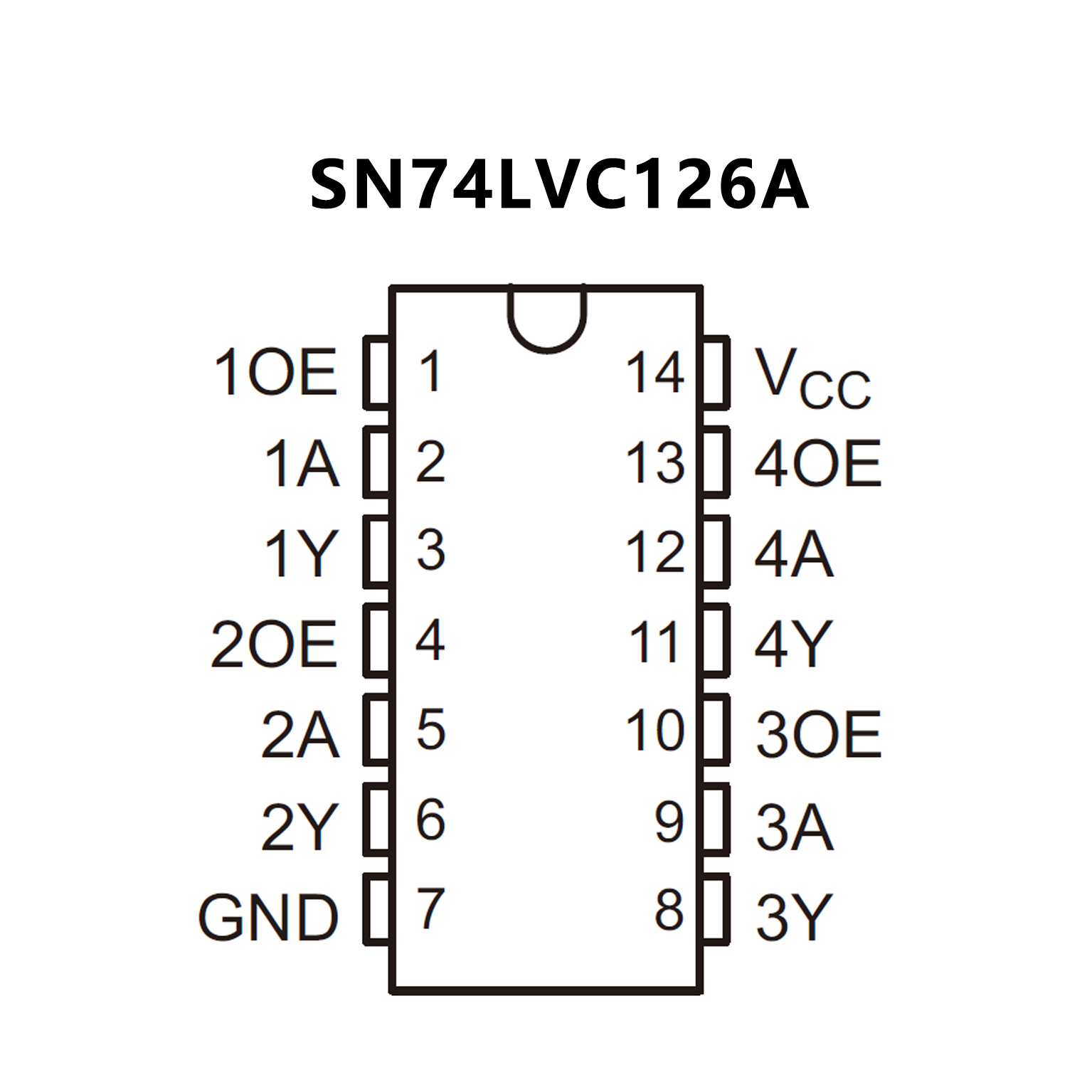

PIN CONFIGUTION
