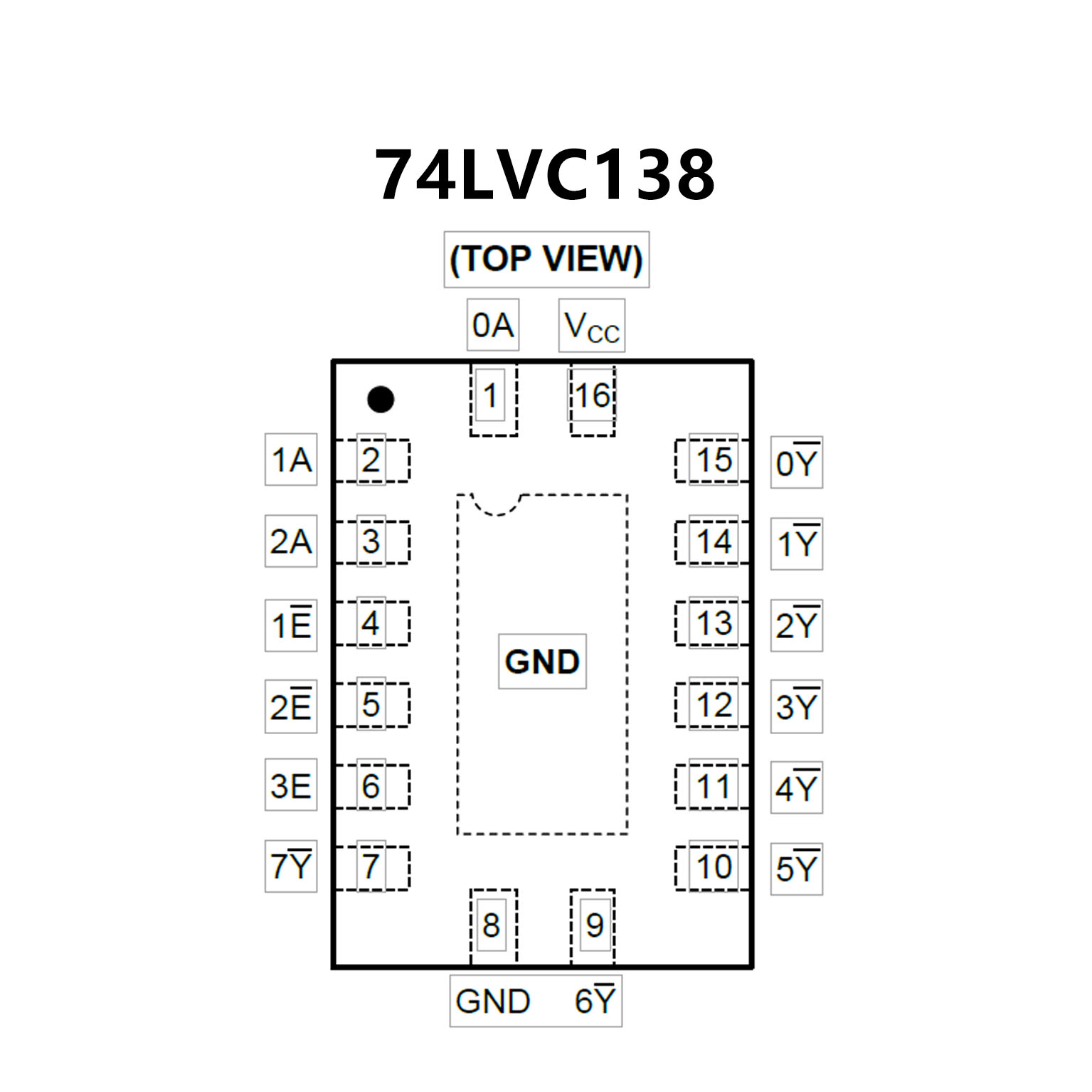

74LVC138.pdf• 5V Tolerant Inputs for Interfacing with 5V Logic
• Wide Supply Voltage Range: 1.2V to 3.6V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Demultiplexing Capability
• Multiple Input Enable for Easy Expansion
• Ideal for Memory Chip Select Decoding
• Mutually Exclusive Outputs
• Output Drive Capability: 50Ω Transmission Lines
at +125℃
• -40℃ to +125℃ Operating Temperature Range
• Additionally Specified from -10℃ to +85℃ at VCC = 1.14V
• Available in a Green TQFN-2.5×3.5-16L Package
• Complies with JEDEC standard no. 7A
• Input levels:

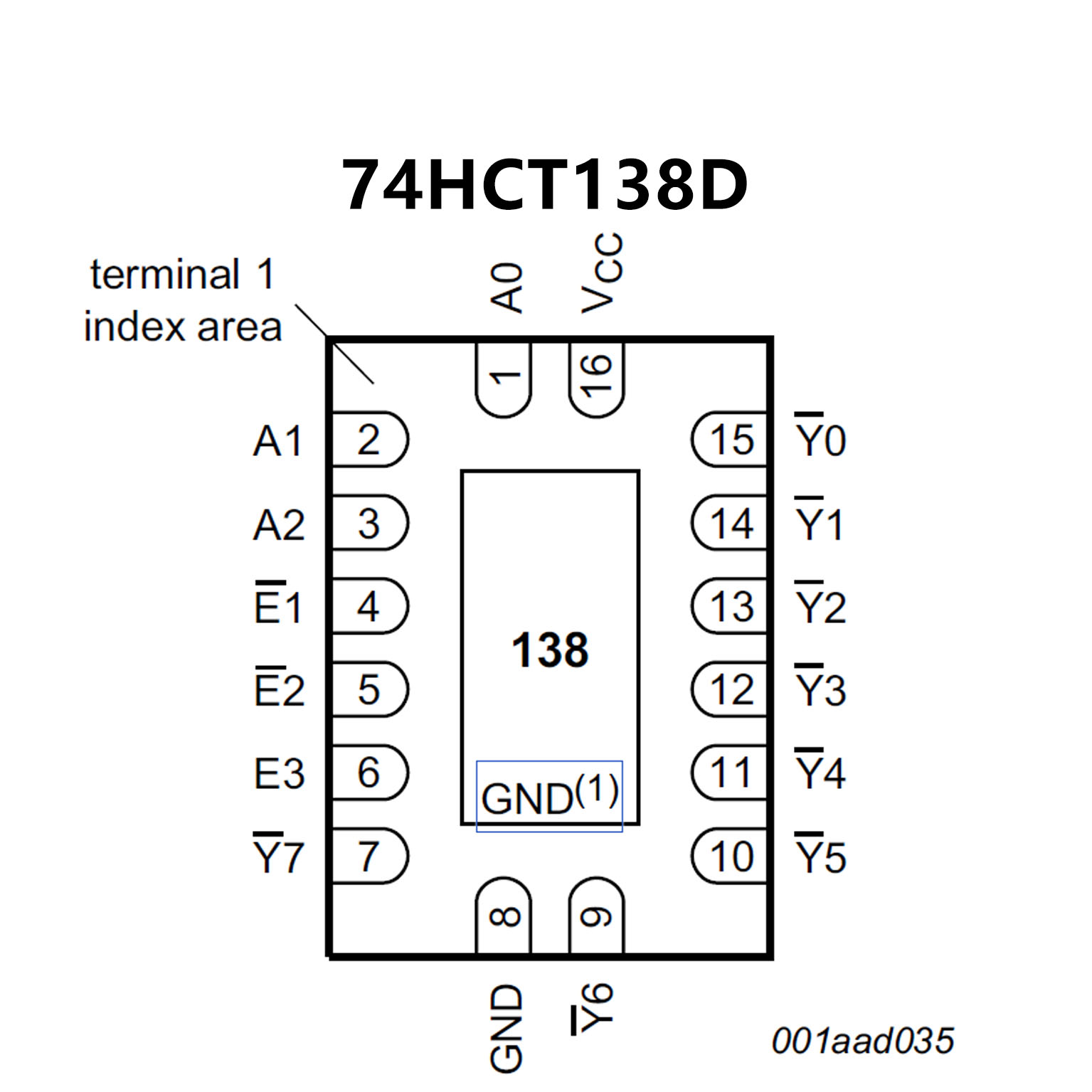

For 74HC138: CMOS level
For 74HCT138: TTL level
• Demultiplexing capability
• Multiple input enable for easy expansion
• Ideal for memory chip select decoding
• Active LOW mutually exclusive outputs
• ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 ℃ to +85 ℃and from -40 ℃ to +125℃
