Single 2-Input NAND Gate,74LVC1G00 Replace MC74VHC1G00.
74LVC1G00
74LVC1G00.pdf
74LVC1G00.pdfFEATURES
• Wide Supply Voltage Range: 1.65V to 5.5V
• High Noise Immunity
• ±24mA Output Drive at VCC = 3.0V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Inputs Accept Voltages up to 5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-5 Package

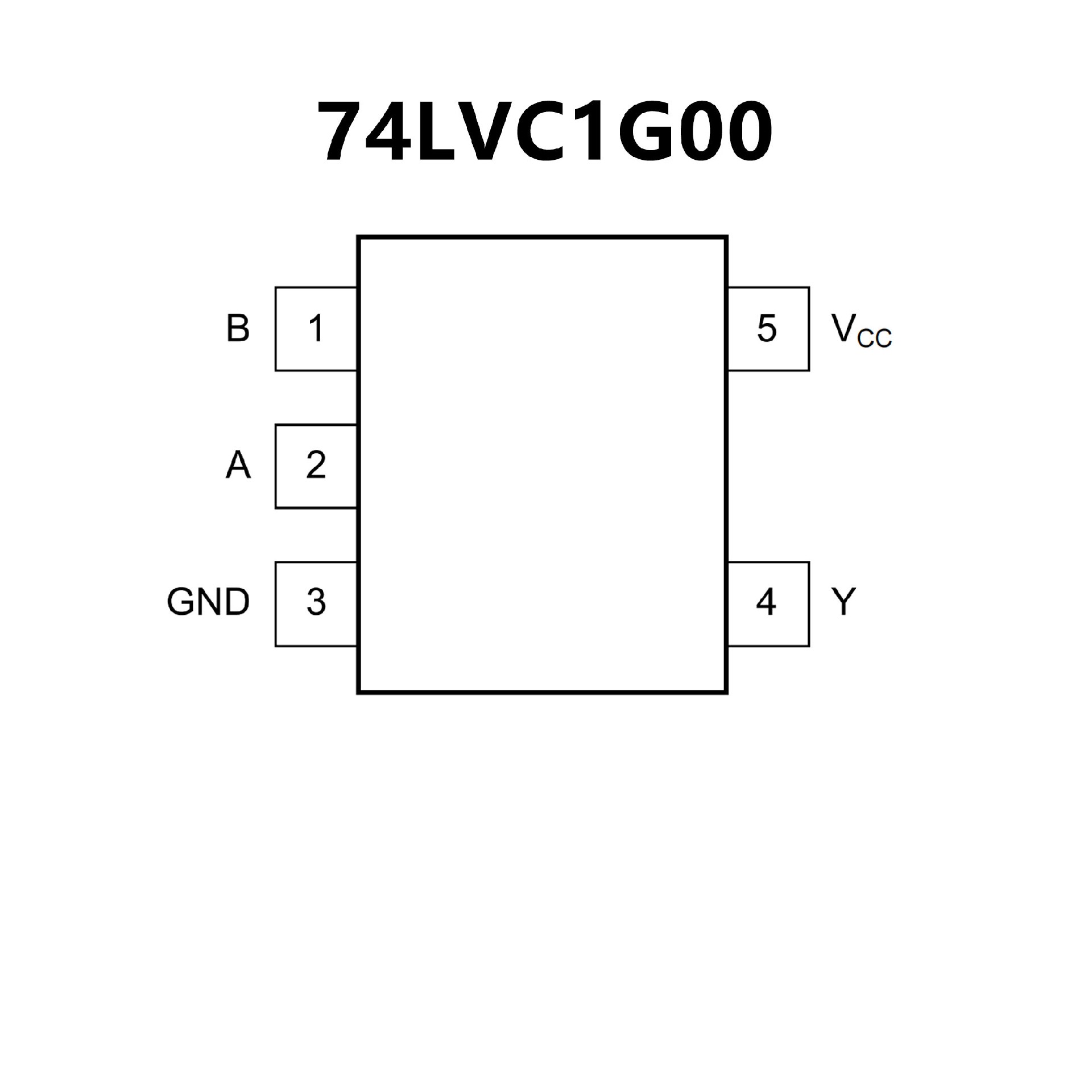

PIN CONFIGUTION
优势替代
FEATURES
• High Speed: tPD = 3.0 ns (Typ) at VCC = 5 V
• Low Power Dissipation: ICC = 2 mA (Max) at TA = 25°C
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Pin and Function Compatible with Other
Standard Logic Families

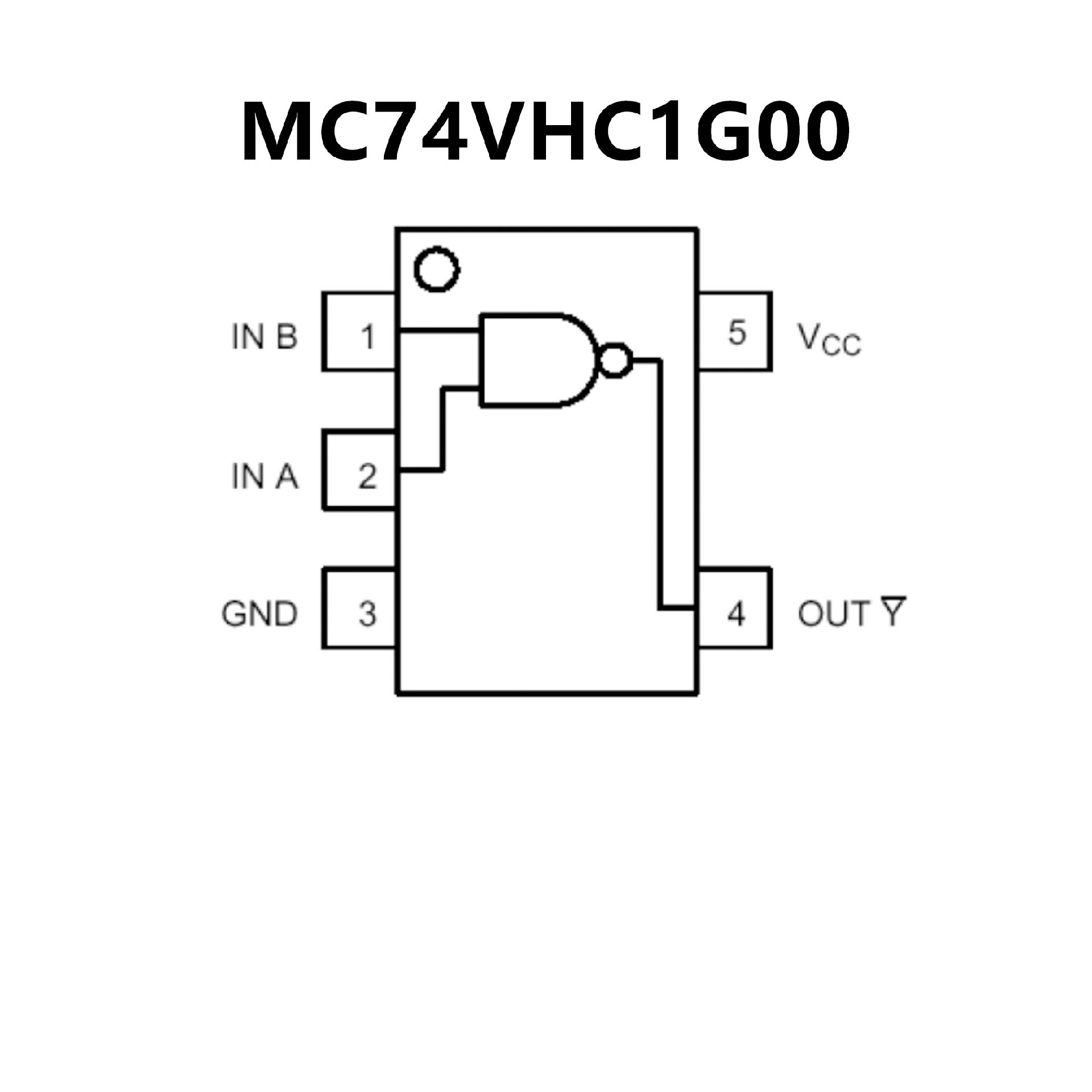

PIN CONFIGUTION
