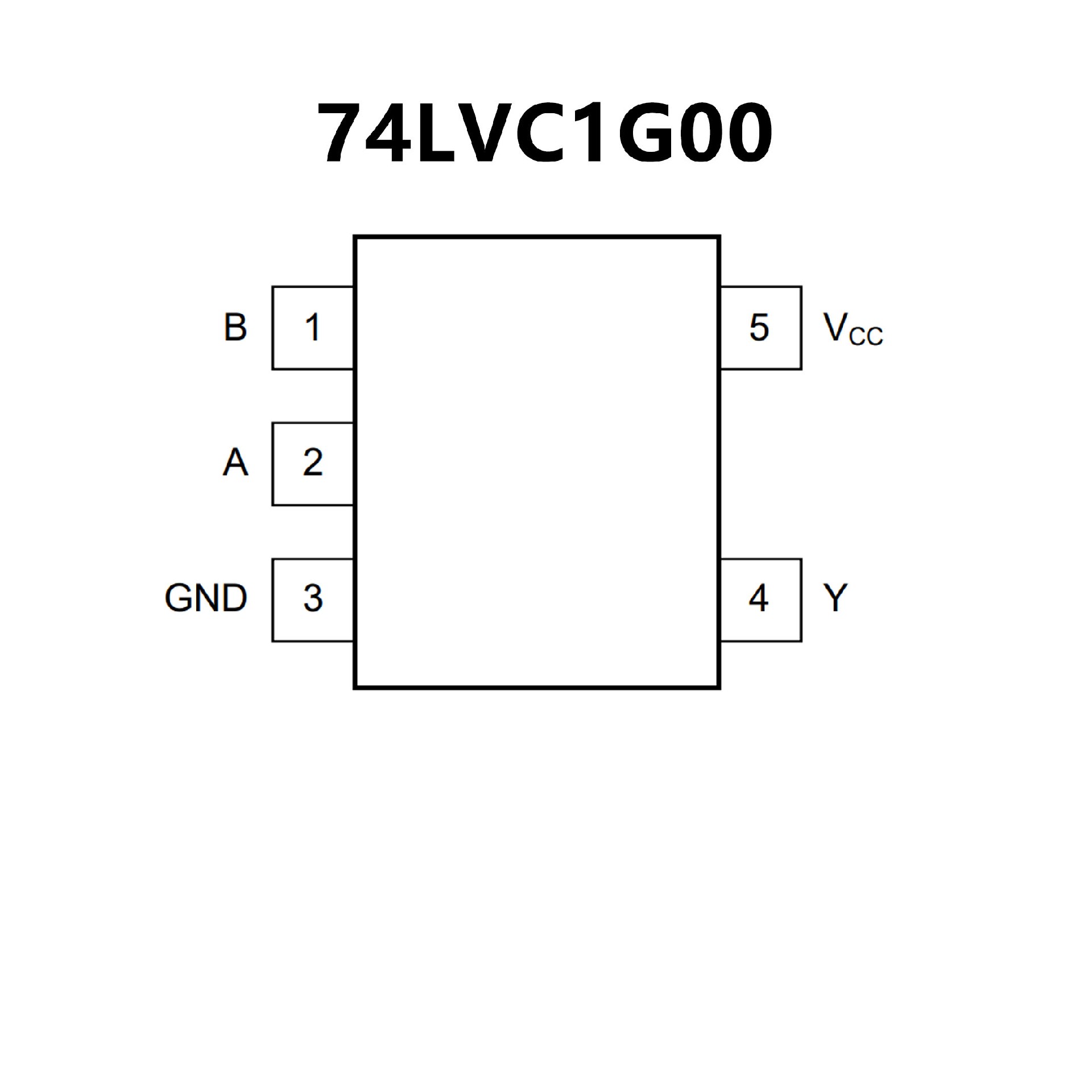

74LVC1G00.pdf• Wide Supply Voltage Range: 1.65V to 5.5V
• High Noise Immunity
• ±24mA Output Drive at VCC = 3.0V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Inputs Accept Voltages up to 5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-5 Package

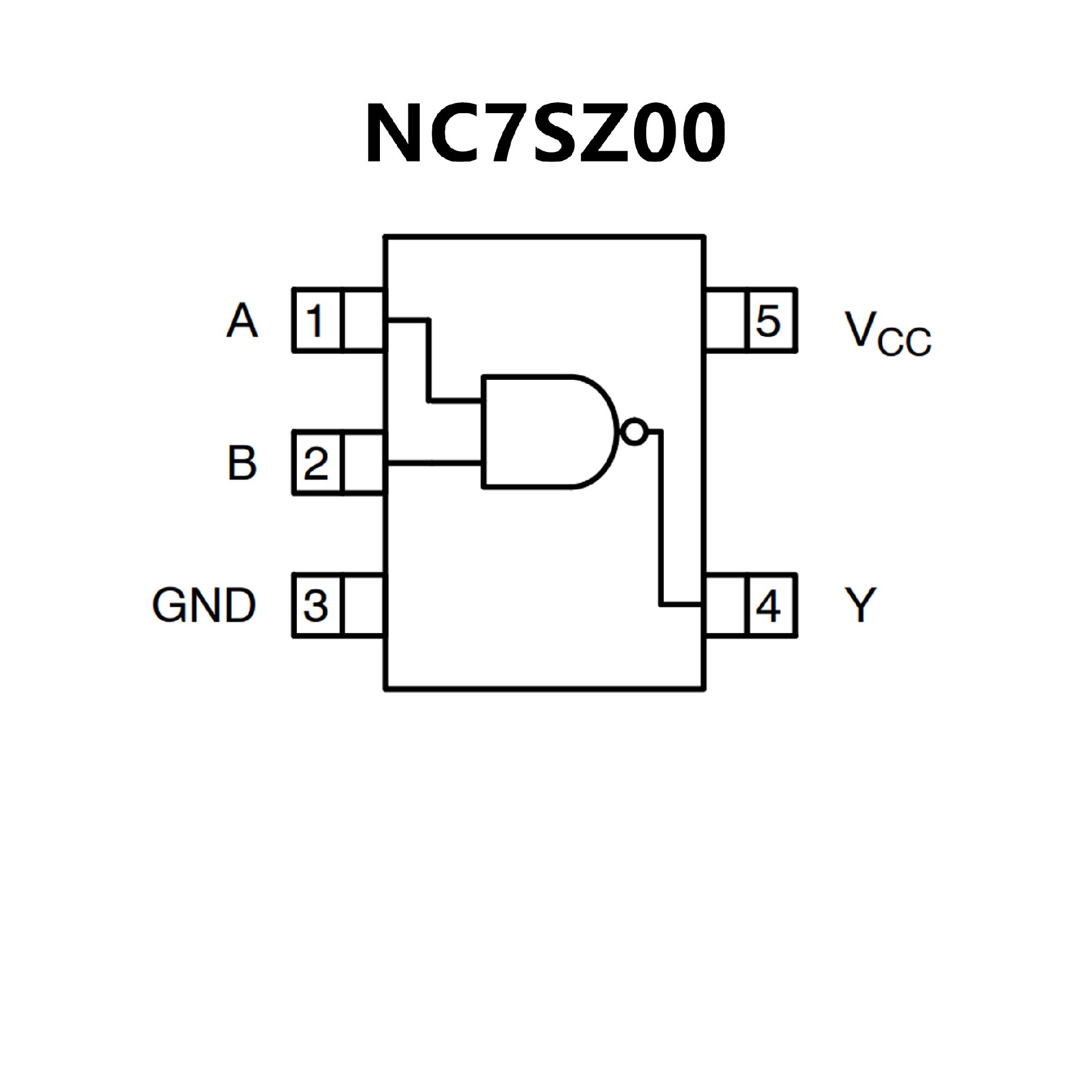

• Ultra−High Speed: tPD = 2.4 ns
(Typical) into 50 pF at 5 V VCC
• High Output Drive: ±24 mA at 3 V VCC
• Broad VCC Operating Range: 1.65 V to 5.5 V
• Matches Performance of LCX Operated at 3.3 V VCC
• Power Down High−Impedance Inputs / Outputs
• Over−Voltage Tolerance Inputs
Facilitate 5 V to 3 V Translation
• Proprietary Noise / EMI Reduction Circuitry
• Ultra−Small MicroPak™ Packages
• Space−Saving SC−74A and SC−88A Packages
• These Devices are Pb−Free, Halogen
Free/BFR Free and are RoHS Compliant
