Bus Buffer/Line Driver with 3-State Output, 74LVC1G125GV Replace SN74LVC1G125.
74LVC1G125GV 74LVC1G125GV.pdf
FEATURES

• Wide Supply Voltage Range: 1.65V to 5.5V

• High Noise Immunity

• ±24mA Output Drive at VCC = 3.0V

• CMOS Low Power Consumption

• Inputs Accept Voltages Up to 5V

• Direct Interface with TTL Levels

• -40℃ to +125℃ Operating Temperature Range

• Available in a Green SC70-5 Package

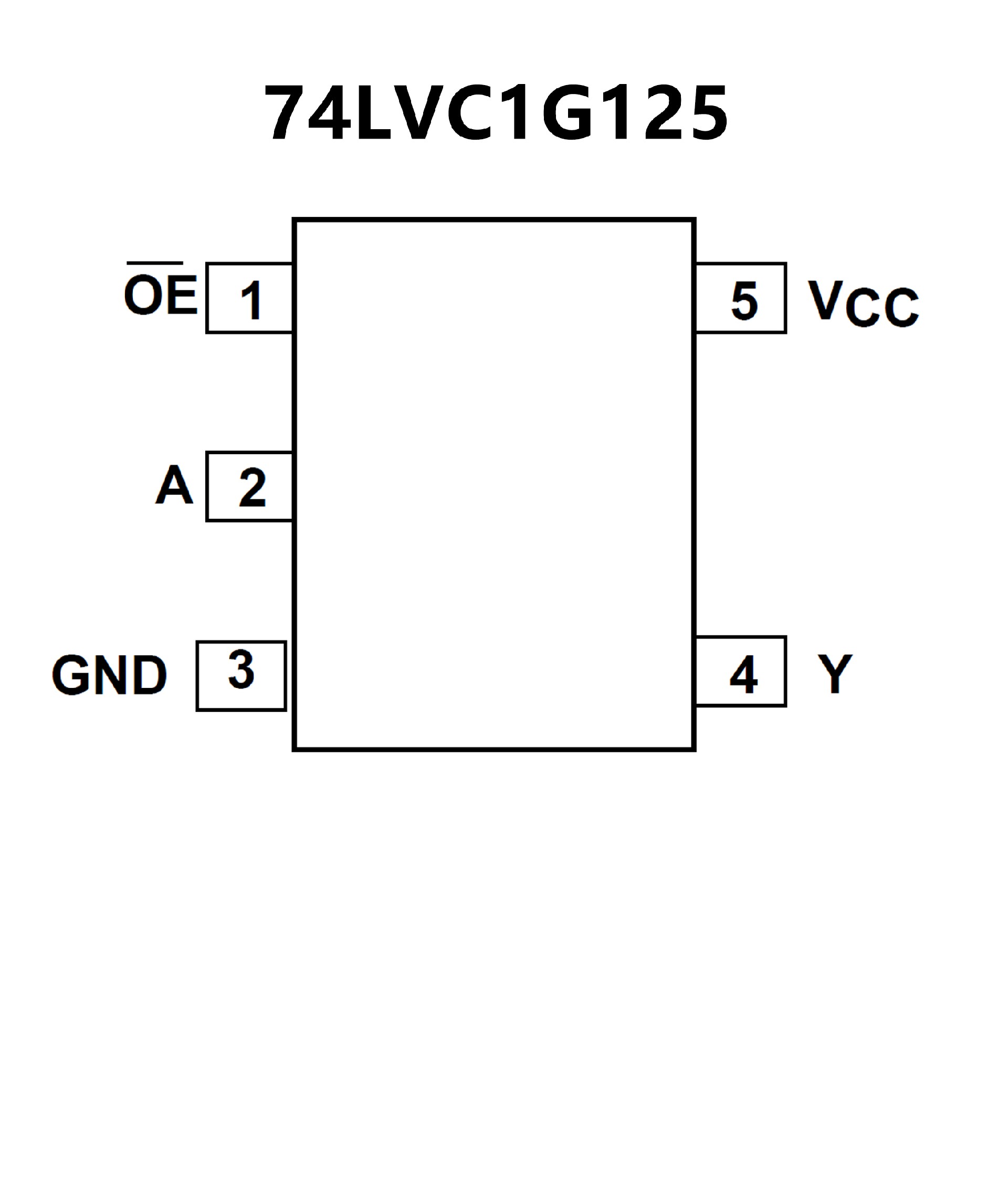

PIN CONFIGUTION
优势替代
SN74LVC1G125 SN74LVC1G125.pdf

No.12278

FEATURES

• Available in the Ultra Small 0.64-mm2

 Package (DPW) With 0.5-mm Pitch

• Supports 5-V VCC Operation

• Inputs Accept Voltages to 5.5 V

• Provides Down Translation to VCC

  Max tpd of 3.7 ns at 3.3 V

• Low Power Consumption, 10-μA Max ICC

• ±24-mA Output Drive at 3.3 V

• Ioff Supports Live Insertion,

  Partial-Power-Down Mode, and

  Back-Drive Protection

• Latch-Up Performance Exceeds 100 mA

  Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

  2000-V Human-Body Model (A114-A)

  200-V Machine Model (A115-A)

  1000-V Charged-Device Model (C101)

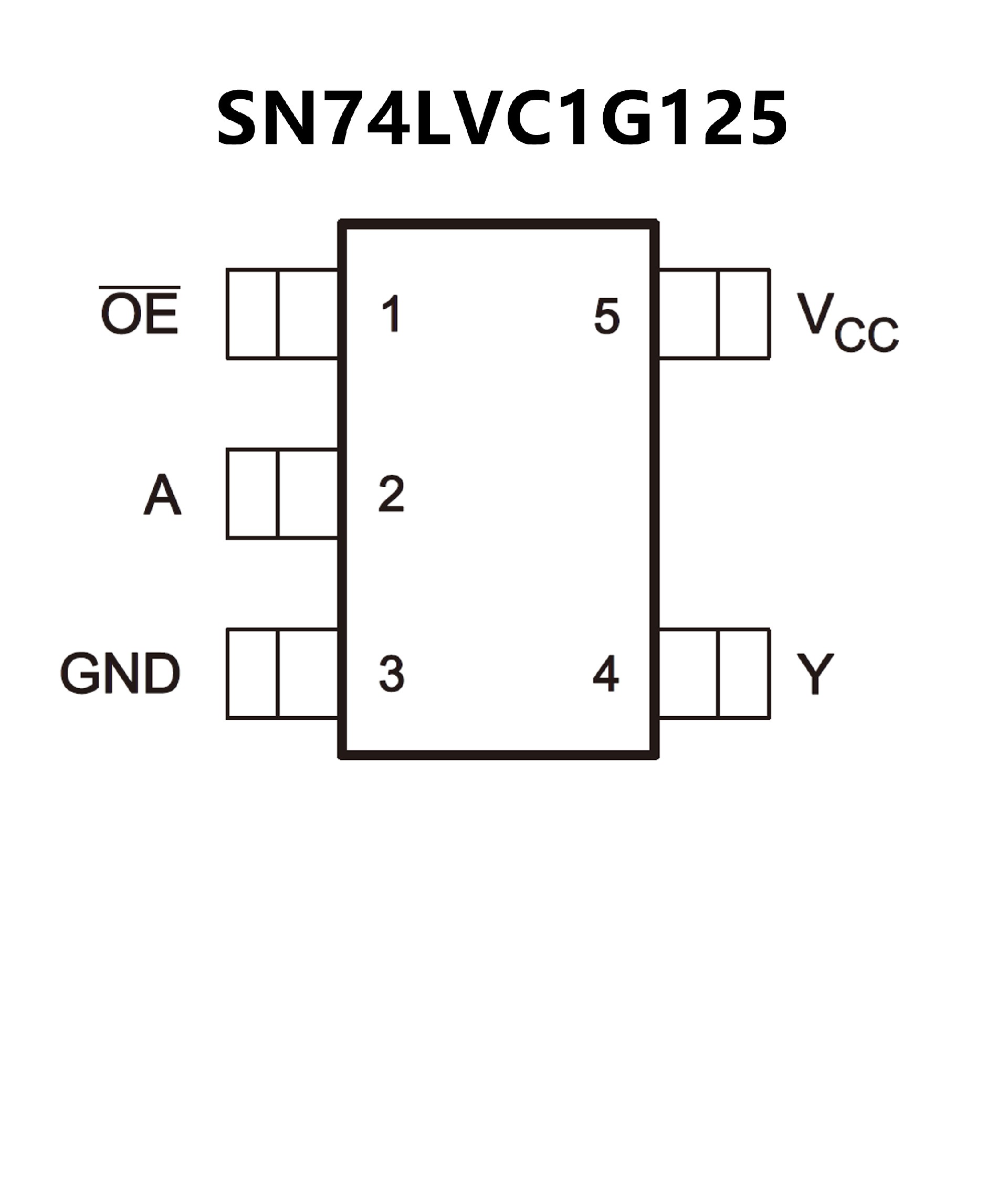

PIN CONFIGUTION
