Bus Buffer/Line Driverwith 3-State Output, 74LVC1G125 Replace 74LVC1G125GV.
74LVC1G125 74LVC1G125.pdf
FEATURES

 Wide Supply Voltage Range: 1.65V to 5.5V

 High Noise Immunity

 ±24mA Output Drive at VCC = 3.0V

 CMOS Low Power Consumption

 Inputs Accept Voltages Up to 5V

 Direct Interface with TTL Levels

 -40℃ to +125℃ Operating Temperature Range

 Available in a Green SC70-5 Package

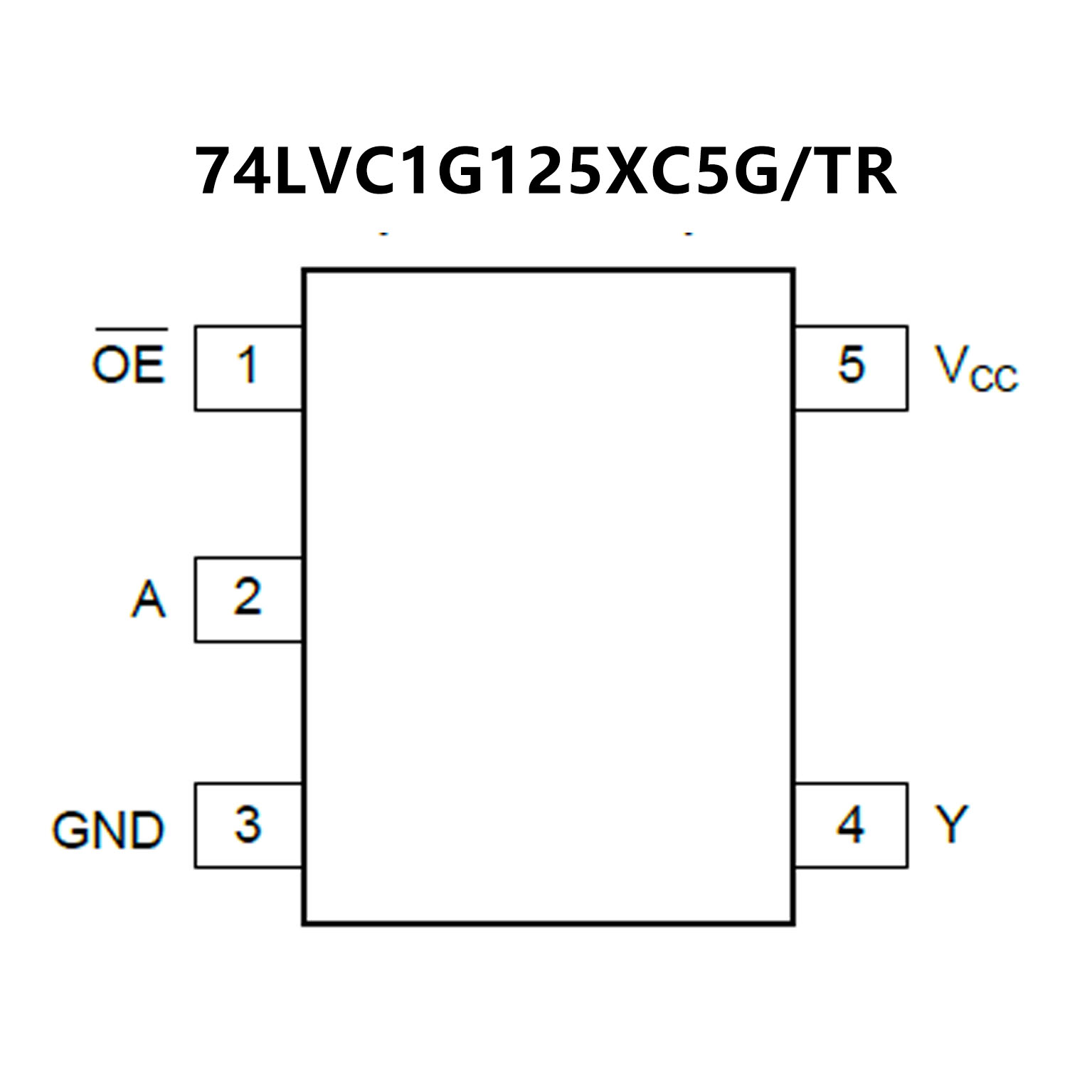

PIN CONFIGUTION
优势替代
74LVC1G125GV 74LVC1G125GV.pdf

No.11916

FEATURES

•  Wide supply voltage range from 1.65 V to 5.5 V

•  Overvoltage tolerant inputs to 5.5 V

•  High noise immunity • CMOS low power consumption

•  IOFF circuitry provides partial Power-down mode operation

•  ±24 mA output drive (VCC = 3.0 V)

•  Latch-up performance exceeds 250 mA

•  Direct interface with TTL levels

•  Complies with JEDEC standards:

   JESD8-7 (1.65 V to 1.95 V)

   JESD8-5 (2.3 V to 2.7 V)

   JESD8C (2.7 V to 3.6 V)

   JESD36 (4.5 V to 5.5 V)

• ESD protection:

    HBM JESD22-A114F exceeds 2000 V

    MM JESD22-A115-A exceeds 200 V

• Multiple package options

•  Specified from -40 °C to +85 °C and -40 °C to +125 °C

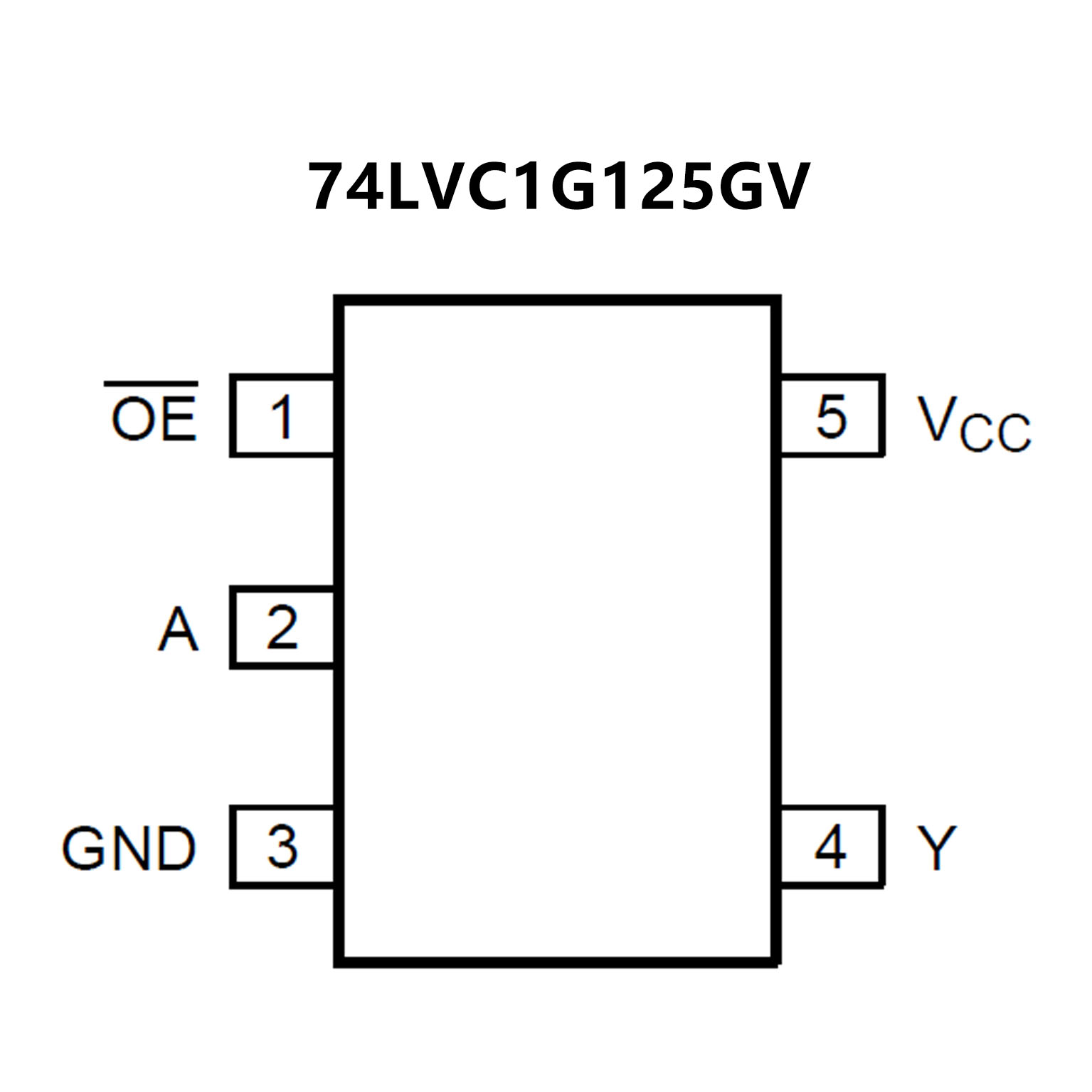

PIN CONFIGUTION
