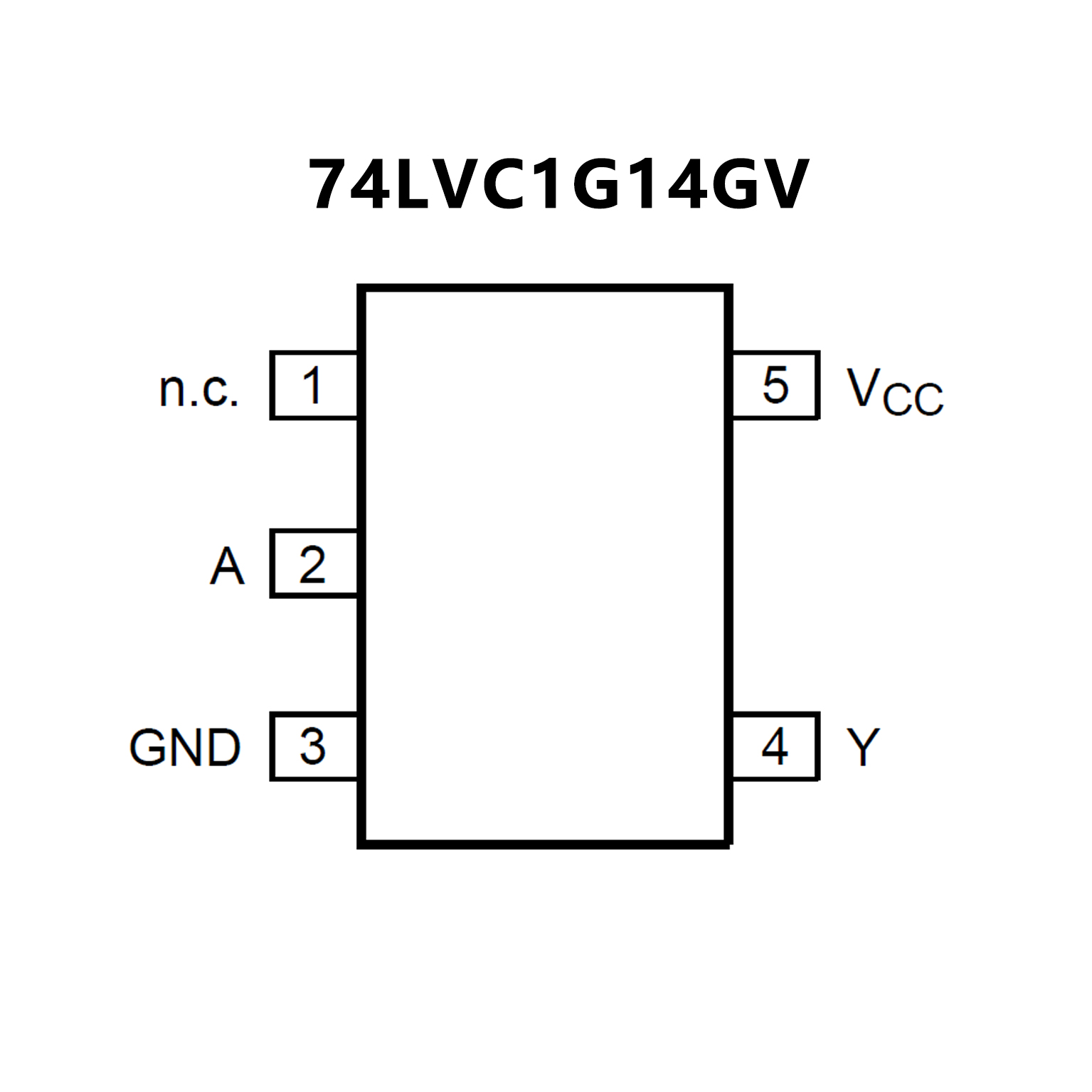

• Wide supply voltage range from 1.65 V to 5.5 V

• Overvoltage tolerant inputs to 5.5 V

• High noise immunity

• CMOS low power dissipation

• IOFF circuitry provides partial Power-down mode operation

• ±24 mA output drive (VCC = 3.0 V)

• Latch-up performance exceeds 250 mA

• Direct interface with TTL levels

• Unlimited rise and fall times

• Complies with JEDEC standard:

• JESD8-7 (1.65 V to 1.95 V)

• JESD8-5 (2.3 V to 2.7 V)

• JESD8C (2.7 V to 3.6 V)

• JESD36 (4.5 V to 5.5 V)

• ESD protection:

• HBM: ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 2000 V

• MM: JESD22-A115-A exceeds 200 V

• Multiple package options

• Specified from -40 °C to +85 °C and -40 °C to +125 °C.
