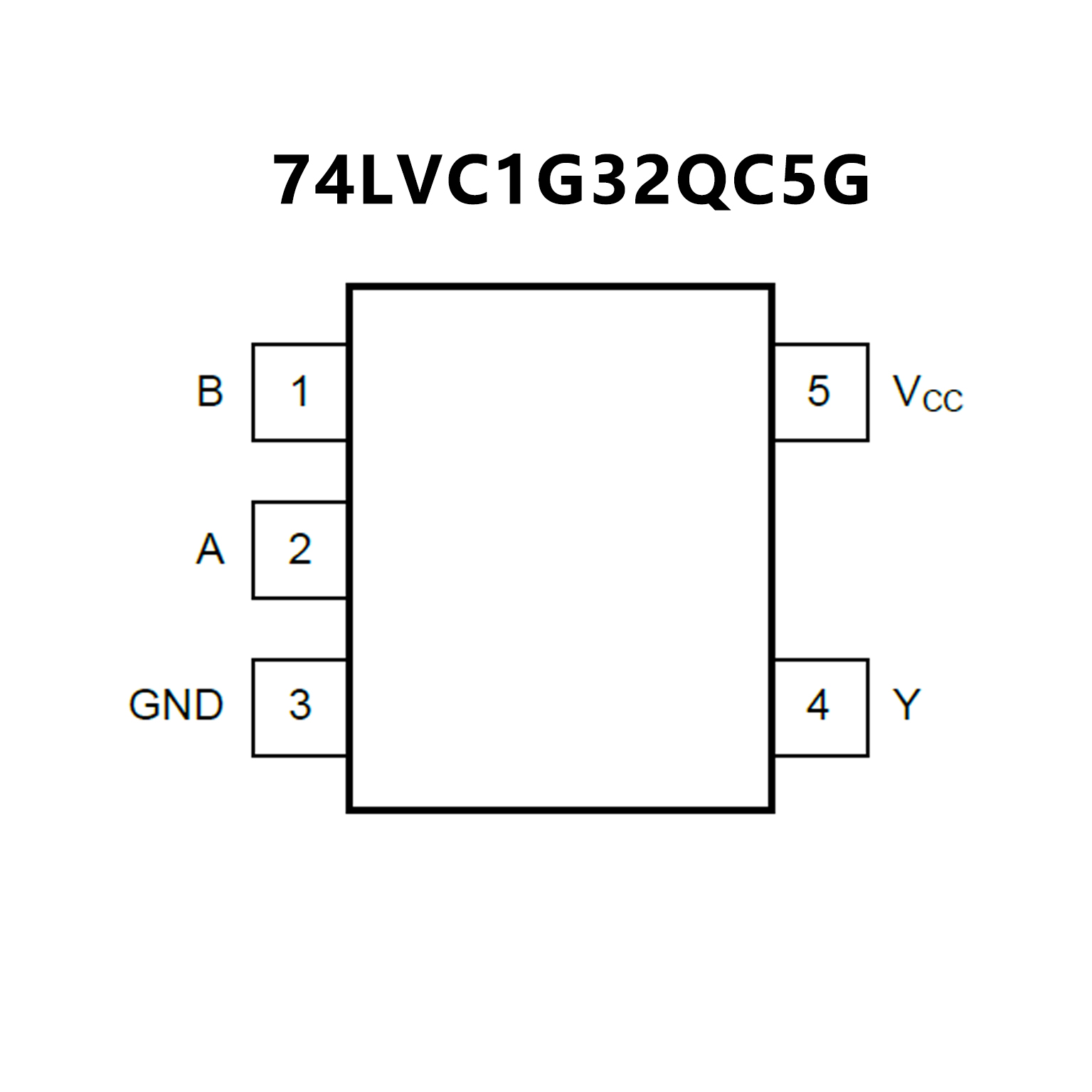

74LVC1G32Q.pdf• AEC-Q100 (Grade 1) Qualified for Automotive Applications
TA = -40℃ to +125℃
• Wide Supply Voltage Range: 1.65V to 5.5V
• Inputs Accept Voltages up to 5.5V
• +24mA/-24mA Output Current at VCC = 3.0V
• CMOS Low Power Consumption
• High Noise Immunity
• Direct Interface with TTL Levels
• Complies with JEDEC Standards:
JESD8-7 (1.65V to 1.95V)
JESD8-5 (2.3V to 2.7V)
JESD8-B/JESD36 (2.7V to 3.6V)
• Latch-up Performance Exceeds 250mA
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-5 Package

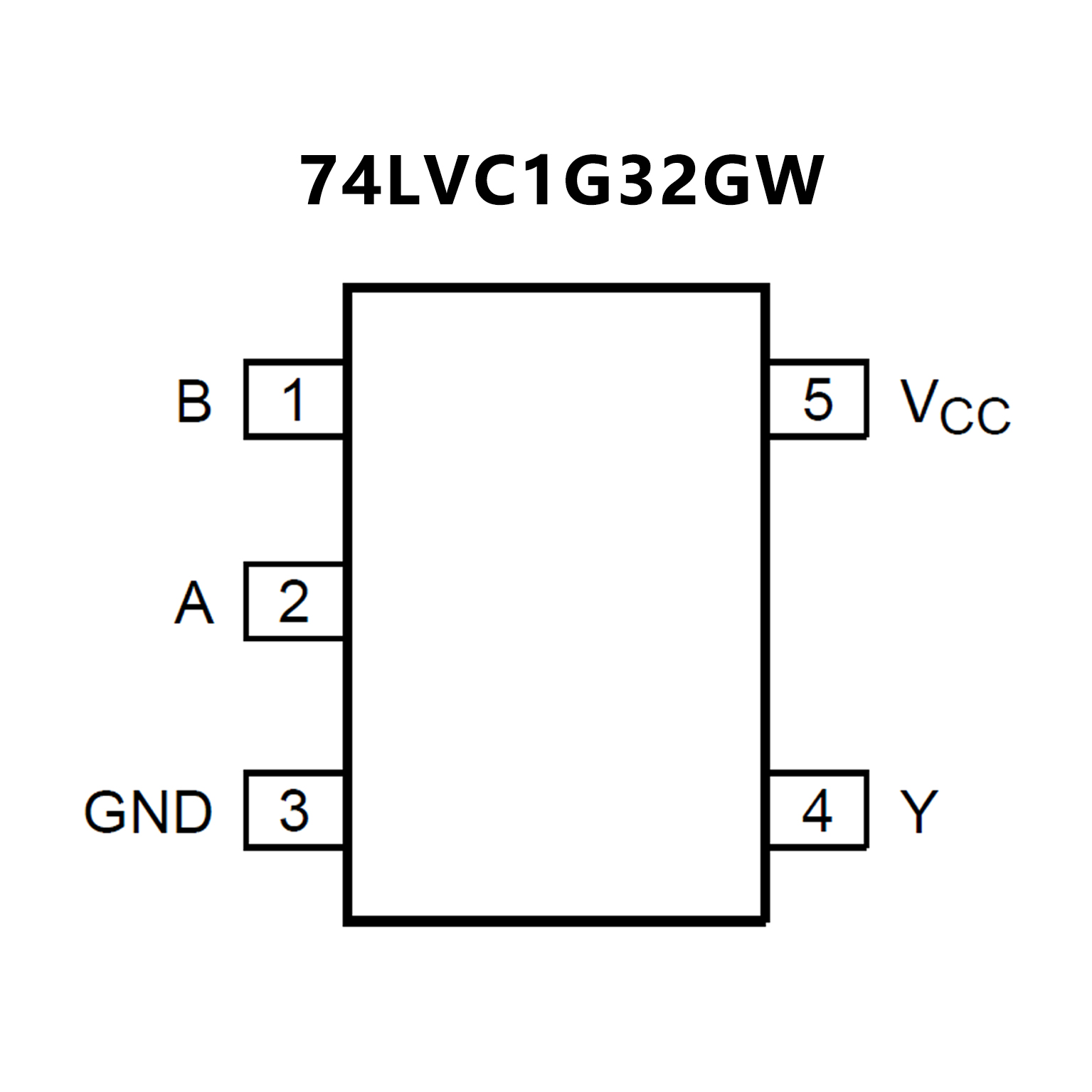

• Automotive product qualification
in accordance with AEC-Q100 (Grade 1)
• Specified from -40 °C to +85 °C
and from -40 °C to +125 °C
• Wide supply voltage range from 1.65 V to 5.5 V
• Overvoltage tolerant inputs to 5.5 V
• High noise immunity
• CMOS low power dissipation
• IOFF circuitry provides partial
Power-down mode operation
• ±24 mA output drive (VCC = 3.0 V)
• Latch-up performance exceeds 250 mA
• Direct interface with TTL levels
• Complies with JEDEC standard:
• JESD8-7 (1.65 V to 1.95 V)
• JESD8-5 (2.3 V to 2.7 V)
• JESD8-B/JESD36 (2.7 V to 3.6 V)
• ESD protection:
• MIL-STD-883, method 3015 exceeds 2000 V
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
• Multiple package options
