Single 2-Input OR Gate,74LVC1G32XC5G Replace TC7SH32FU.
74LVC1G32XC5G
74LVC1G32XC5G.pdf
74LVC1G32XC5G.pdfFEATURES
• Wide Supply Voltage Range: 1.65V to 5.5V
• High Noise Immunity
• ±24mA Output Drive at VCC = 3.0V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Inputs Accept Voltages up to 5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-5 Package

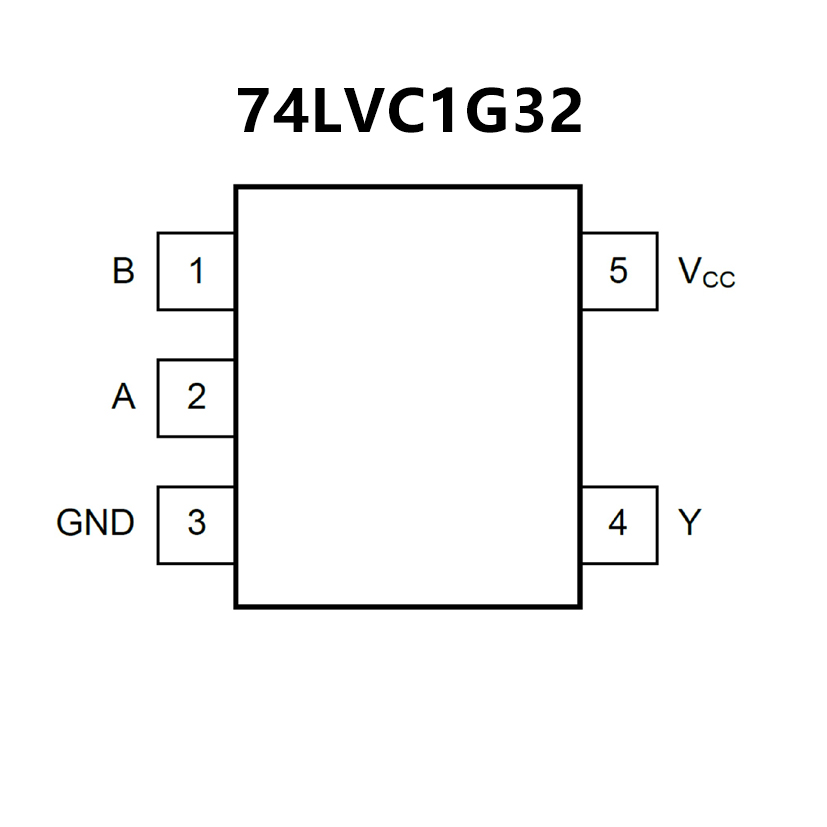

PIN CONFIGUTION
优势替代
FEATURES
• AEC-Q100 (Rev. H) (Note 1)
• Wide operating temperature range:
Topr = -40 to 125 (Note 2)
• High speed operation: tpd =
3.8 ns (typ.) (VCC = 5.0 V, CL = 15 pF)
• Low power dissipation:
ICC = 2.0 μA (max) (Ta = 25 )
• High noise immunity: VNIH =
VNIL = 28 % VCC (min)
• 5.5 V tolerant inputs
• Wide operating voltage range:
VCC = 2.0 to 5.5 V

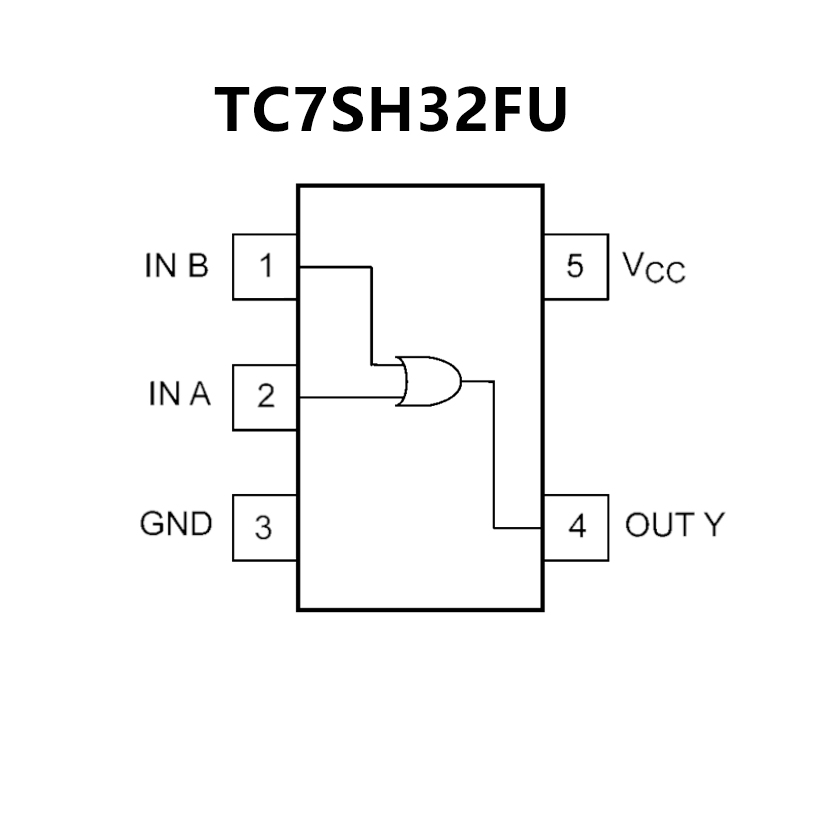

PIN CONFIGUTION
