Single 2-Input OR Gate,74LVC1G32XN5G Replace SN74AHC1G32.
74LVC1G32XN5G
74LVC1G32XN5G.pdf
74LVC1G32XN5G.pdfFEATURES
• Wide Supply Voltage Range: 1.65V to 5.5V
• High Noise Immunity
• ±24mA Output Drive at VCC = 3.0V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Inputs Accept Voltages up to 5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-5 Package

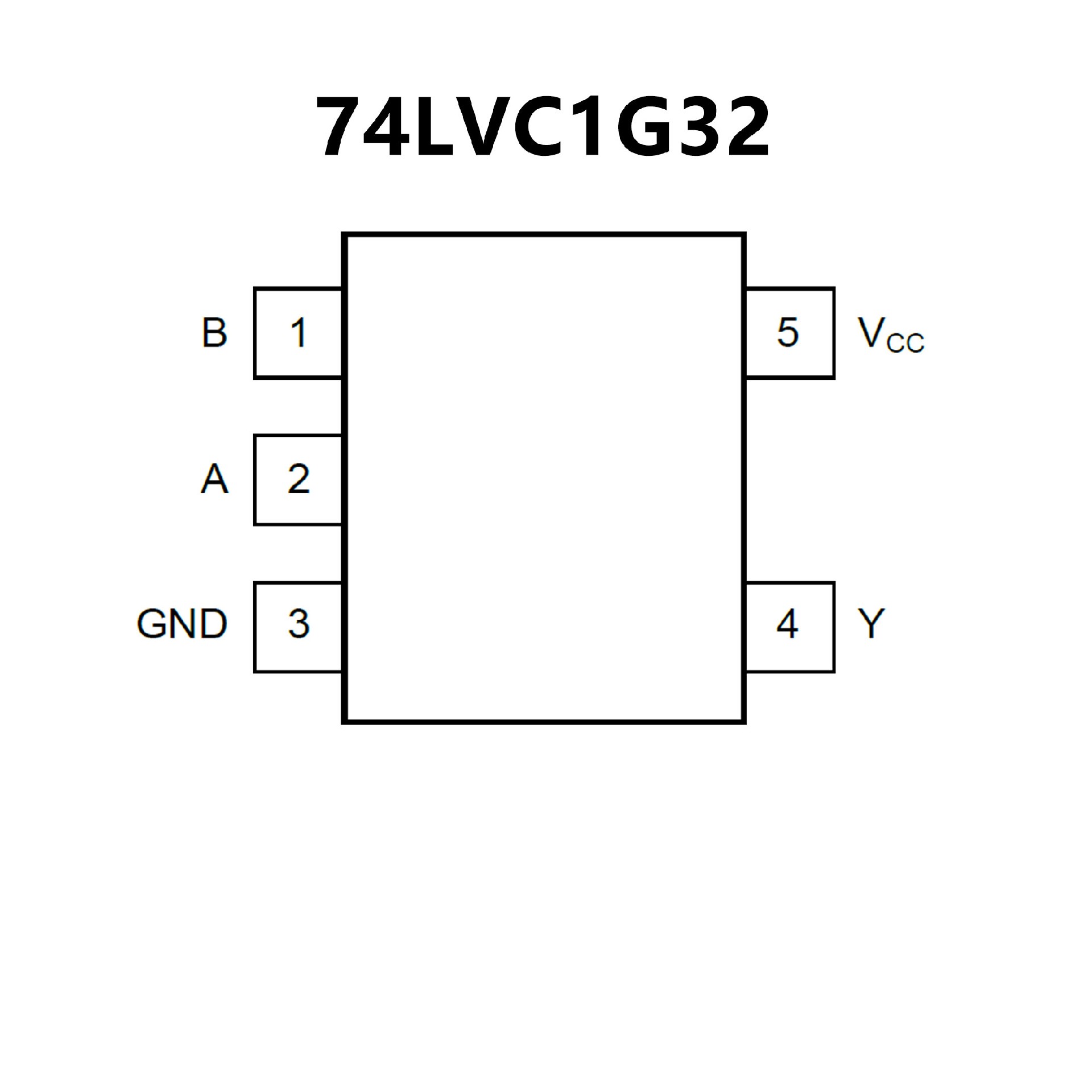

PIN CONFIGUTION
优势替代
FEATURES
• Operating Range of 2 V to 5.5 V
• Max tpd of 6.5 ns at 5 V
• Low Power Consumption, 10-μA Max ICC
• ±8-mA Output Drive at 5 V
• Schmitt-Trigger Action at All Inputs Makes the
Circuit Tolerant for Slower Input Rise and Fall
Time
• Latch-Up Performance Exceeds 250 mA Per
JESD 17

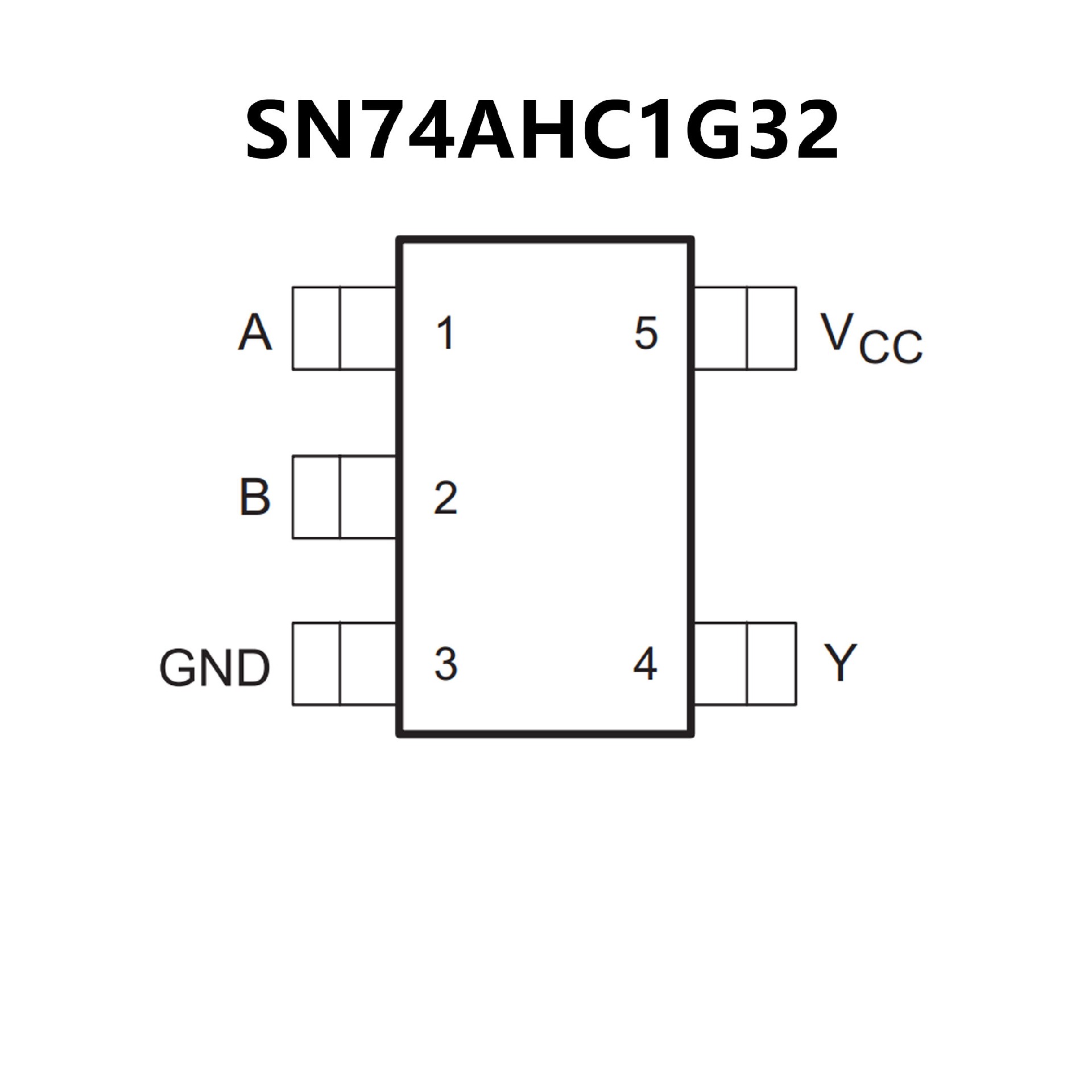

PIN CONFIGUTION
