Single Positive Edge Triggered D Type Flip Flop with Clear and Preset, 74LVC1G74XVS8G P2P SN74LVC1G74
74LVC1G74XVS8G
74LVC1G74XVS8G.pdf
74LVC1G74XVS8G.pdfFEATURES
• Wide Supply Voltage Range: 1.65V to 5.5V
• Inputs Accept Voltages Higher than the Supply
Voltage
• +32mA/-32mA Output Current
• Outputs in High-Impedance State when VCC = 0V
• -40℃ to +125℃ Operating Temperature Range
• Available in Green VSSOP-8, XTDFN-1.4×1-8L
and MSOP-8(S) Packages

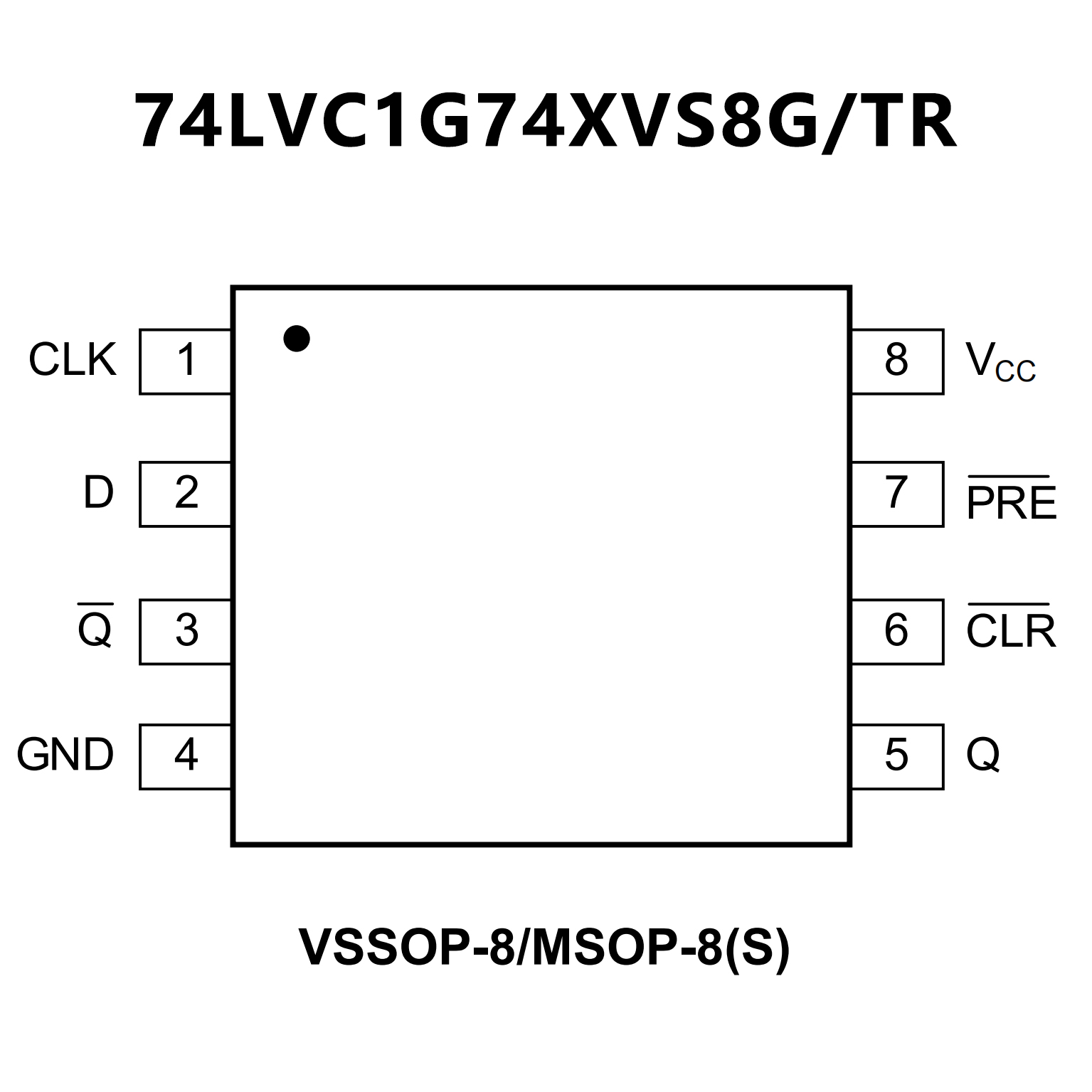

PIN CONFIGUTION
优势替代
FEATURES
• Available in the Texas Instruments
NanoFree™ package
• Supports 5-V VCC operation
• Inputs accept voltages to 5.5-V
• Supports down translation to VCC
• Maximum tpd of 5.9-ns at 3.3-V
• Low power consumption, 10-µA maximum ICC
• ±24-mA output drive at 3.3-V
• Typical VOLP (output ground bounce)
0.8-V at VCC = 3.3-V, TA = 25°C
• Typical VOHV (output VOH undershoot)
2-V at VCC = 3.3 V, TA = 25°C
• Ioff supports live insertion, partial-
power-down mode, and back-drive protection
• Latch-up performance exceeds 100 mA
per JESD 78, class II
• ESD protection exceeds JESD 22
2000-V human-body model
200-V machine model
1000-V charged-device model

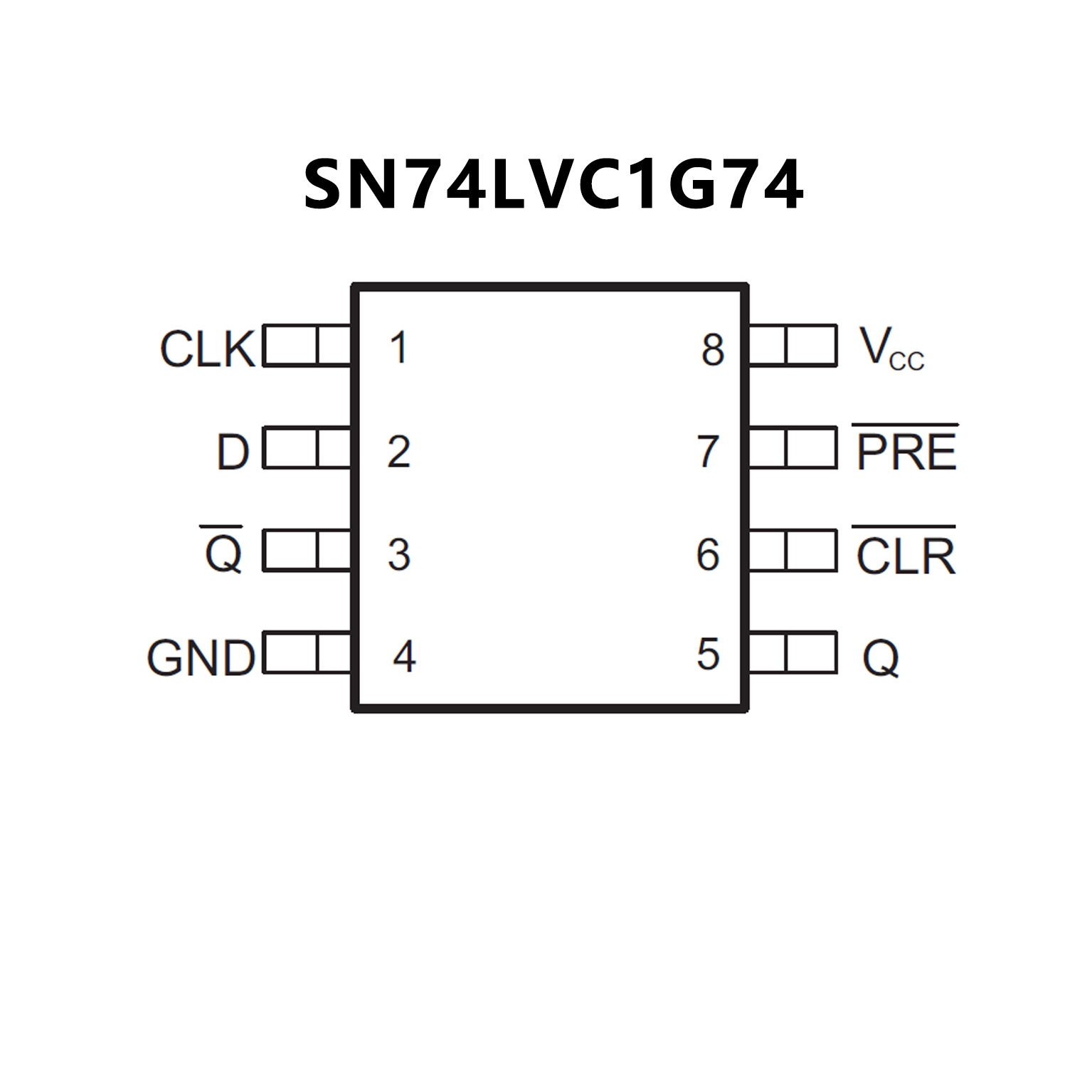

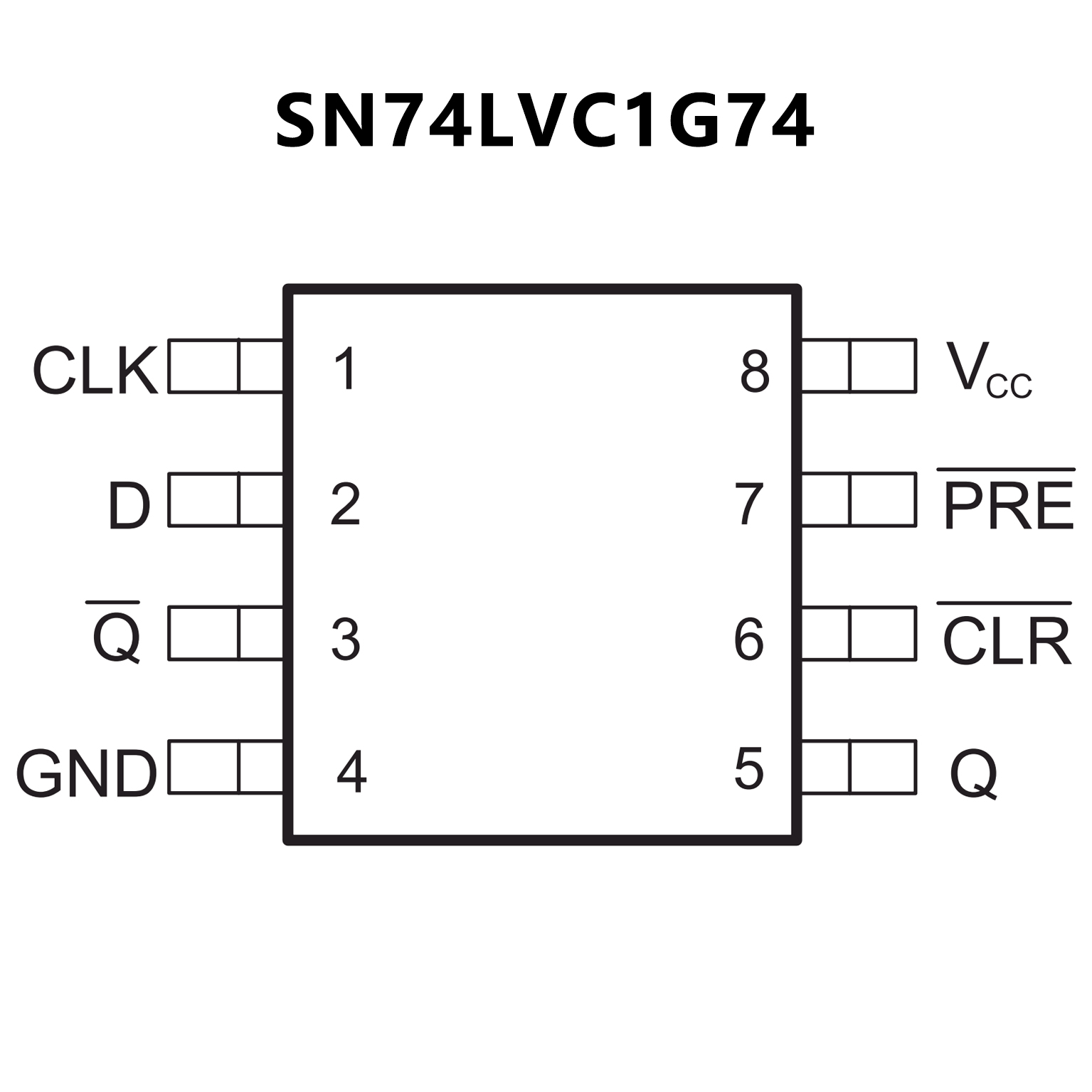

PIN CONFIGUTION
