Dual Inverter,74LVC2G04XC6G Replace SN74AUP2G04.
74LVC2G04XC6G
74LVC2G04XC6G.pdf
74LVC2G04XC6G.pdfFEATURES
• 5V Tolerant Inputs for Interfacing with 5V Logic
• Wide Supply Voltage Range: 1.65V to 5.5V
• High Noise Immunity
• ±24mA Output Drive at VCC = 3.0V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Inputs Accept Voltages up to 5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-6 Package

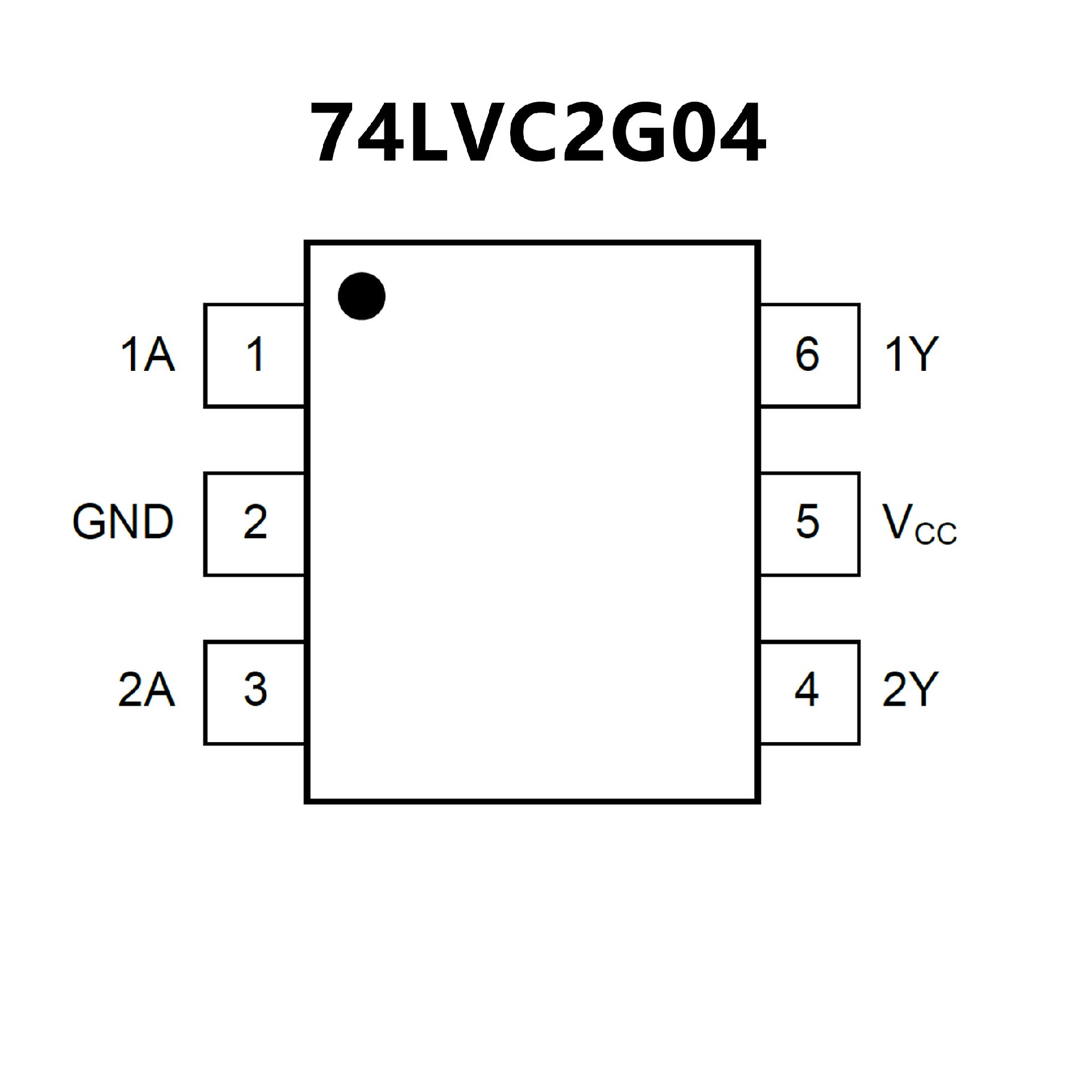

PIN CONFIGUTION
优势替代
FEATURES
• Available in the Texas Instruments NanoStar™ Package
• Low Static-Power Consumption:
ICC = 0.9 mA Max
• Low Dynamic-Power Consumption:
Cpd = 4.3 pF Typ at 3.3 V
• Low Input Capacitance: Ci = 1.5 pF Typ
• Low Noise: Overshoot and Undershoot
<10% of VCC
• Ioff Supports Partial-Power-Down Mode Operation
• Wide Operating VCC Range of 0.8 V to 3.6 V

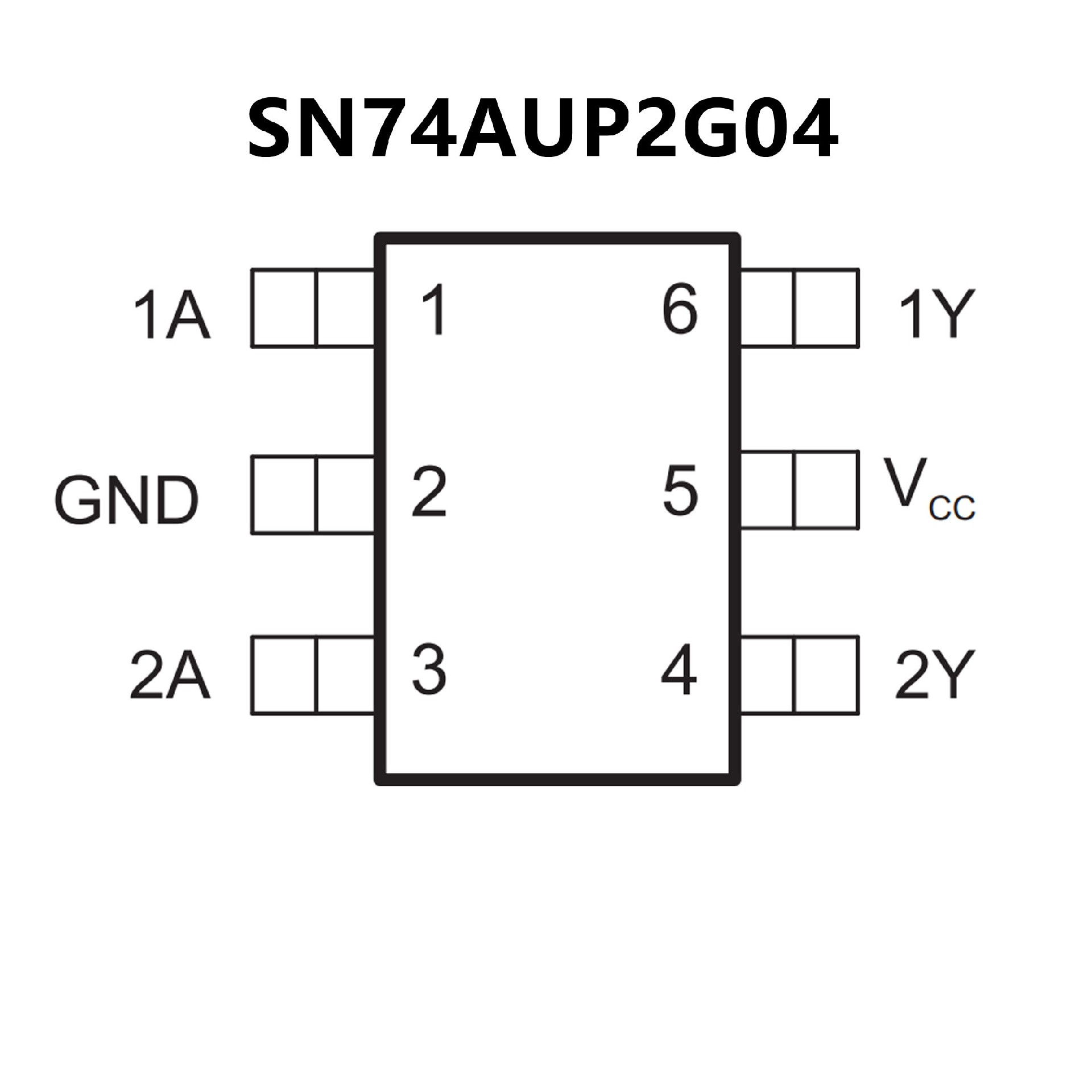

PIN CONFIGUTION
