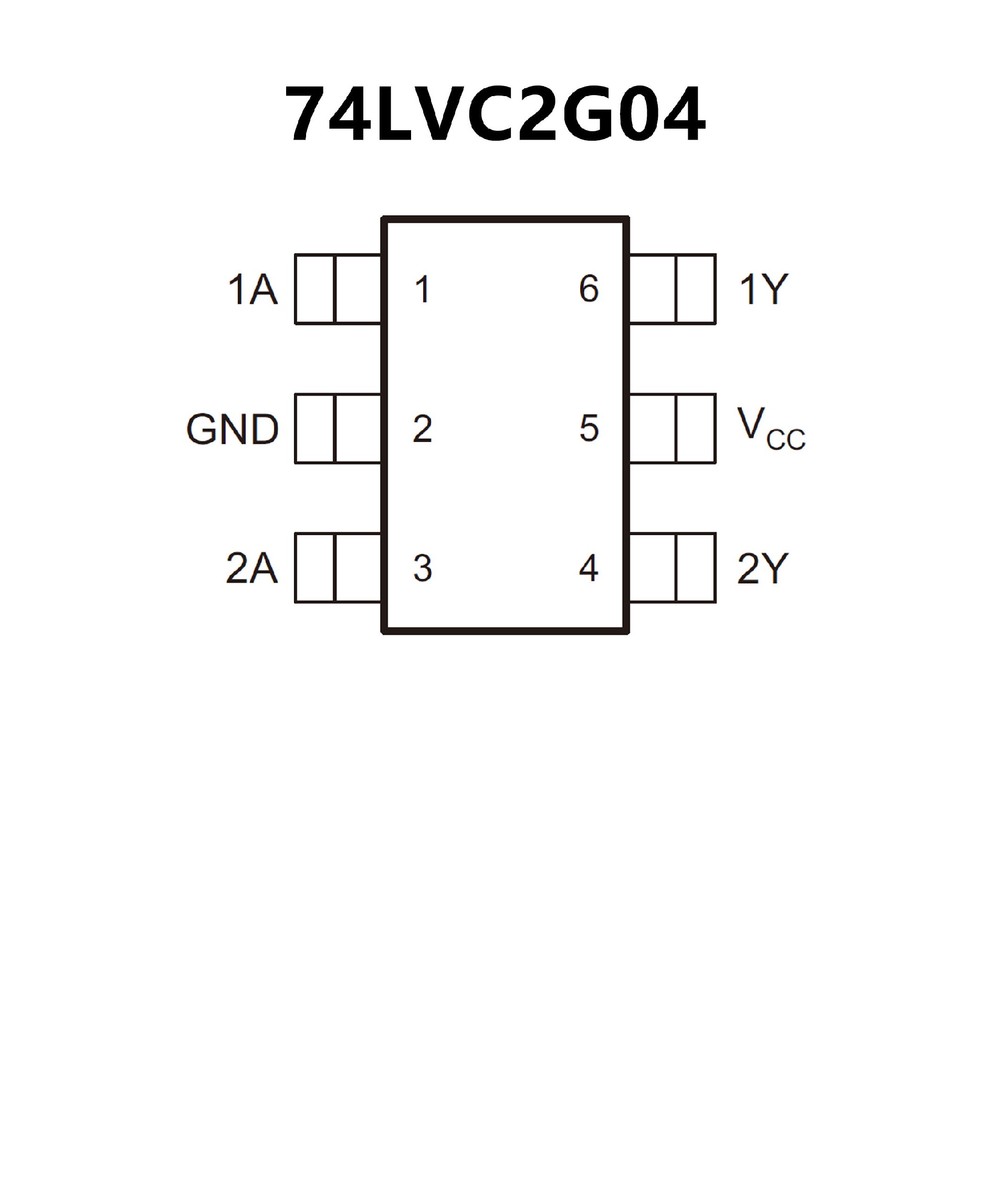

74LVC2G04.pdf• 5V Tolerant Inputs for Interfacing with 5V Logic
• Wide Supply Voltage Range: 1.65V to 5.5V
• High Noise Immunity
• ±24mA Output Drive at VCC = 3.0V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Inputs Accept Voltages up to 5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-6 Package

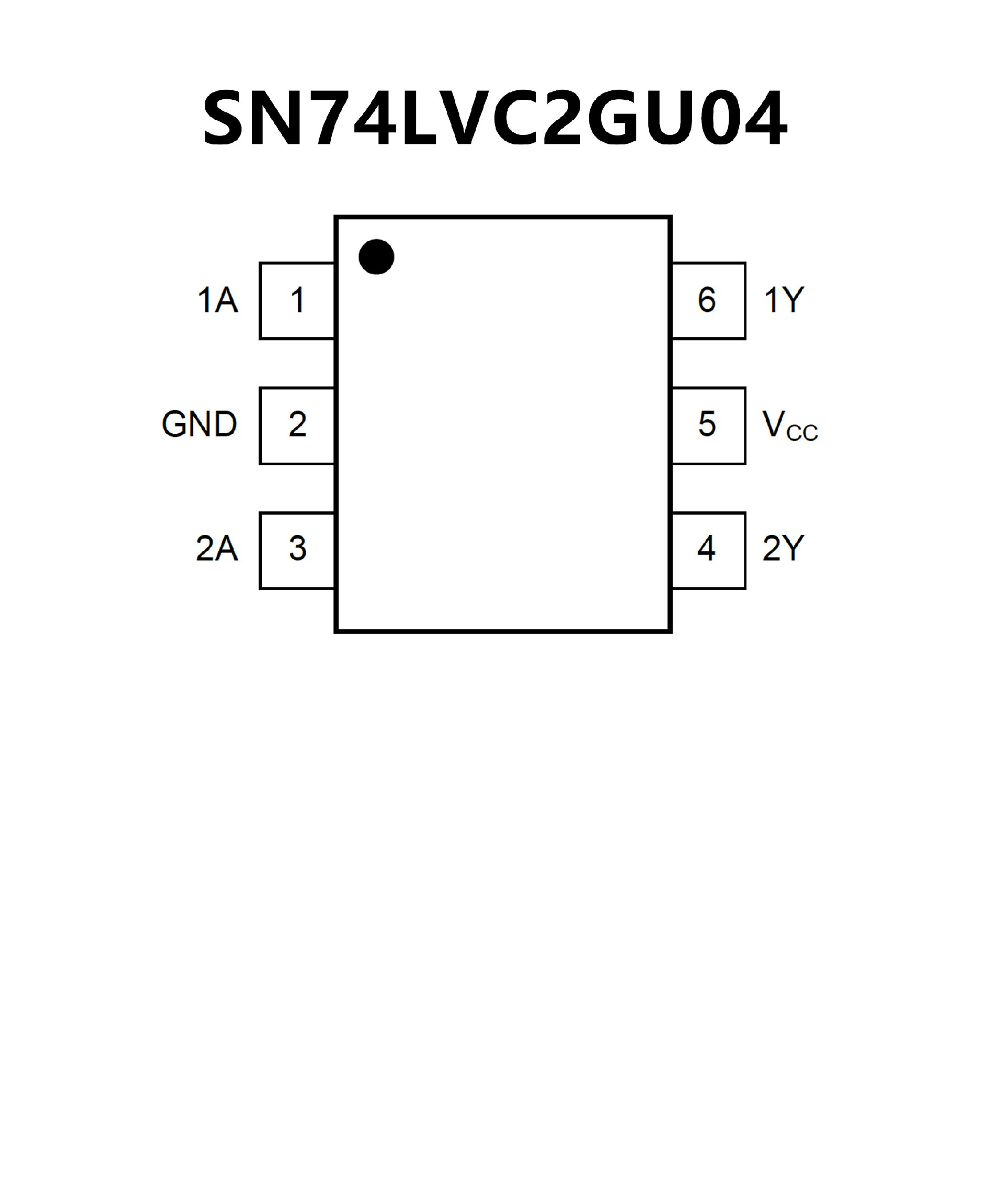

• Available in the Texas Instruments NanoFree™
Package operation.
Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 3.7 ns at 3.3 V
• Low Power Consumption, 10-µA Max I
• ±24-mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce)
<0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot)
>2 V at VCC = 3.3 V, TA = 25°C
• Ioff Supports Live Insertion, Partial-Power-
Down Mode, and Back-Drive Protection
• Can Be Used as a Down Translator to
Translate Inputs From a Max of 5.5 V Down to
the VCC Level
• Unbuffered Outputs
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
• ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
