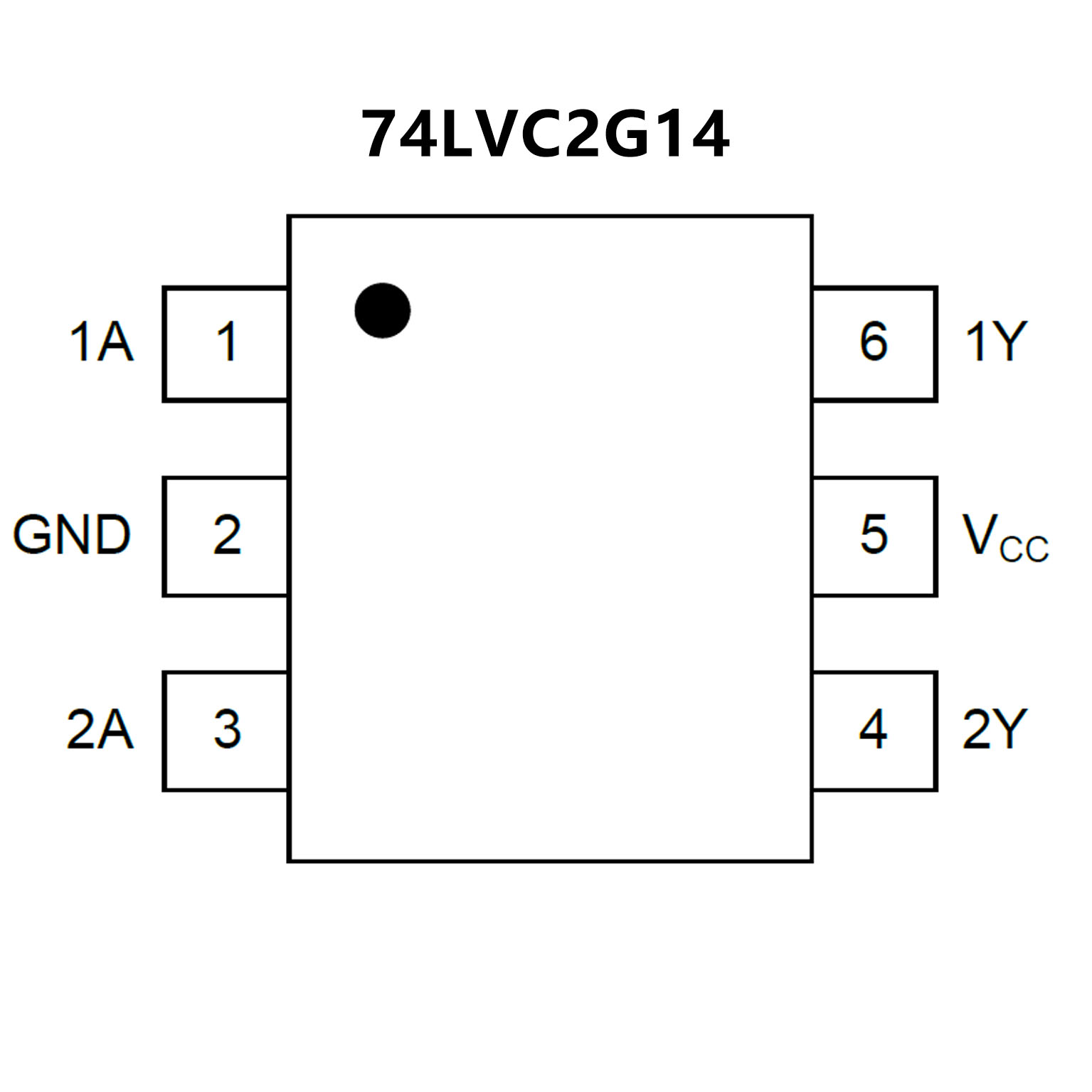

74LVC2G14.pdf• Wide Supply Voltage Range: 1.65V to 5.5V
• 5V Tolerant Inputs for Interfacing with 5V Logic
• High Noise Immunity
• ±24mA Output Drive at VCC = 3.0V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Unlimited Rise and Fall Times
• Inputs Accept Voltages up to 5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-6 Package
• Wide supply voltage range from 2.0 V to 6.0 V
• Input levels:
• For 74HC2G14: CMOS level

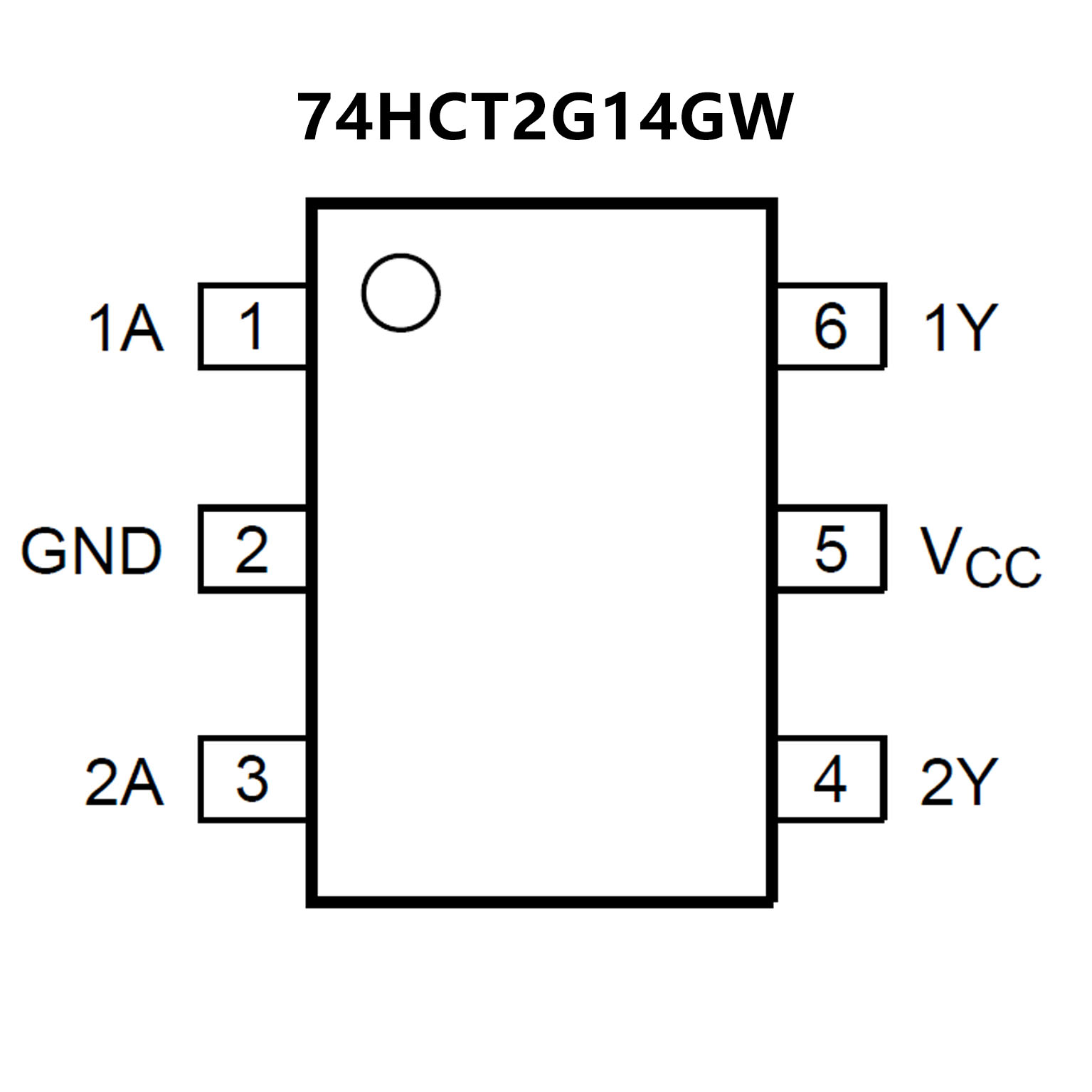

• For 74HCT2G14: TTL level
• High noise immunity
• CMOS low power dissipation
• Balanced propagation delays
• Unlimited input rise and fall times
• Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
• Complies with JEDEC standards
JESD8C (2.7 V to 3.6 V)
JESD7A (2.0 V to 6.0 V)
• ESD protection:
HBM JESD22-A114E exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
• Specified from -40 °C to +85 °C and -40 °C to +125 °C
