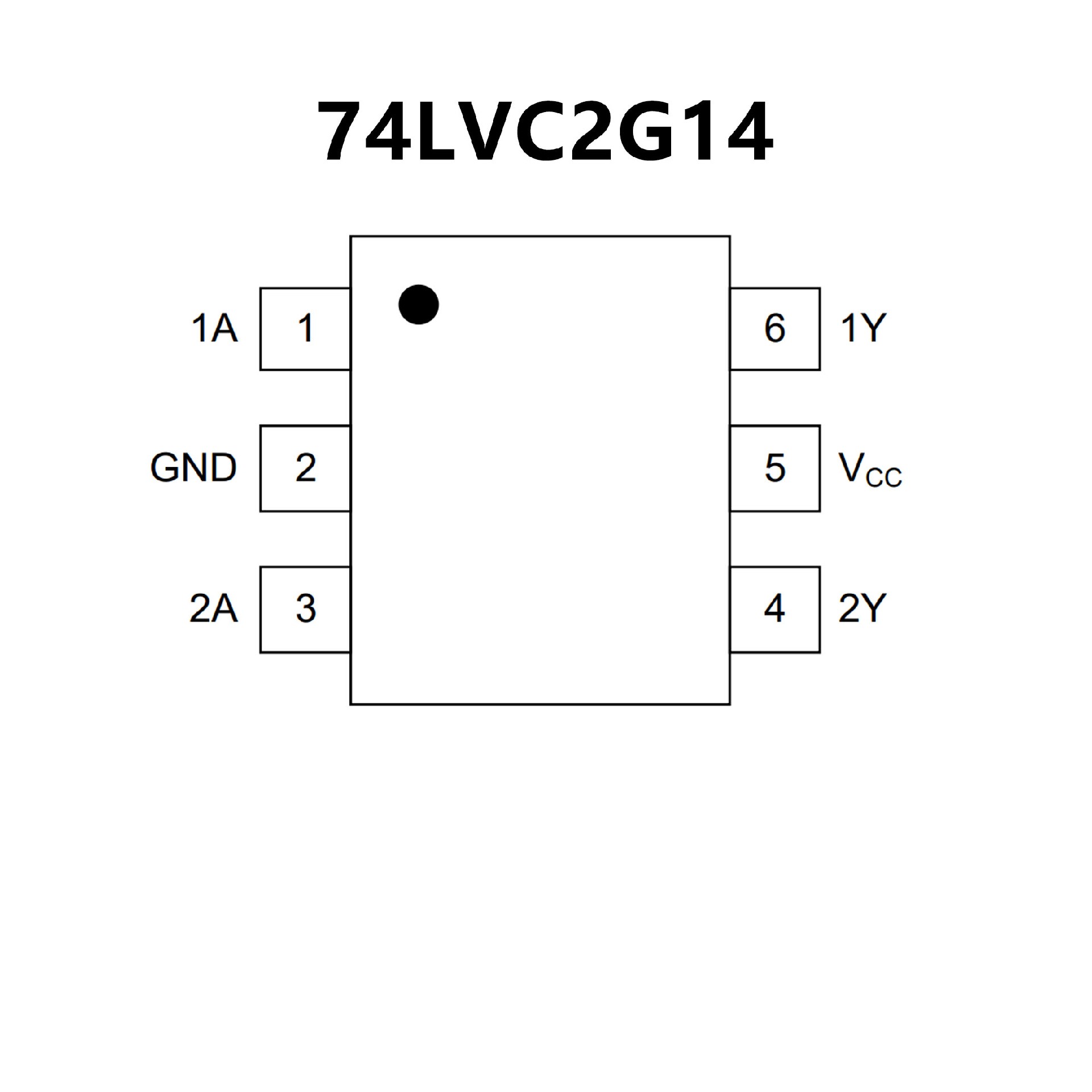

74LVC2G14.pdf• Wide Supply Voltage Range: 1.65V to 5.5V
• 5V Tolerant Inputs for Interfacing with 5V Logic
• High Noise Immunity
• ±24mA Output Drive at VCC = 3.0V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Unlimited Rise and Fall Times
• Inputs Accept Voltages up to 5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-6 Package

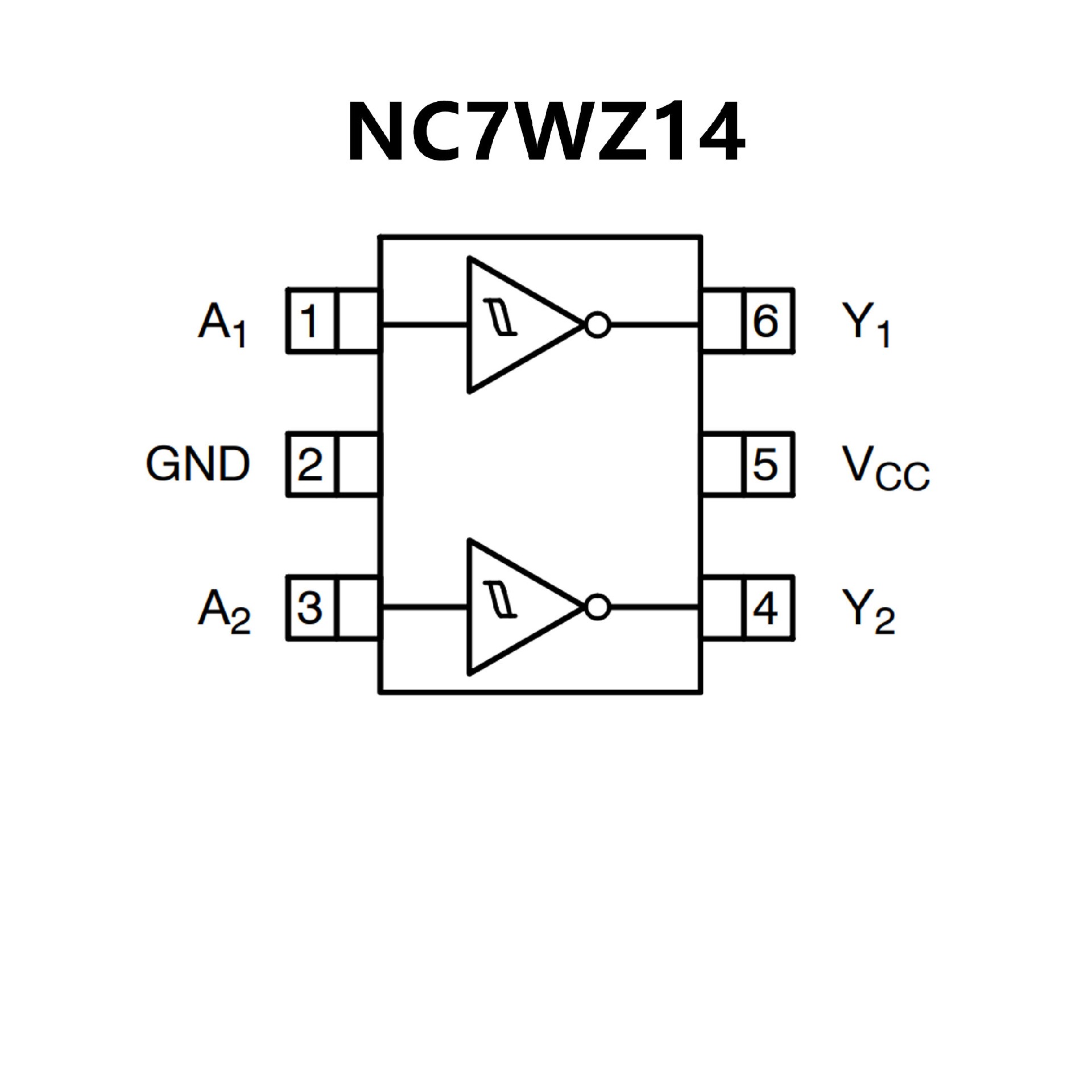

• Ultra High−Speed: tPD = 3.2 ns
(Typical) into 50 pF at 5 V
• High Output Drive: ±24 mA at 3 V VCC
• Broad VCC Operating Range: 1.65 V to 5.5 V
• Matches Performance of LCX
when Operated at 3.3 V VCC
• Power Down High Impedance Inputs / Outputs
• Over−Voltage Tolerance Inputs
Facilitate 5 V to 3 V Translation
• Proprietary Noise / EMI Reduction Circuitry
• Ultra−Small MicroPak™ Packages
• Space−Saving SC−88 Package
• These Devices are Pb−Free, Halogen
Free/BFR Free and are RoHSCompliant
