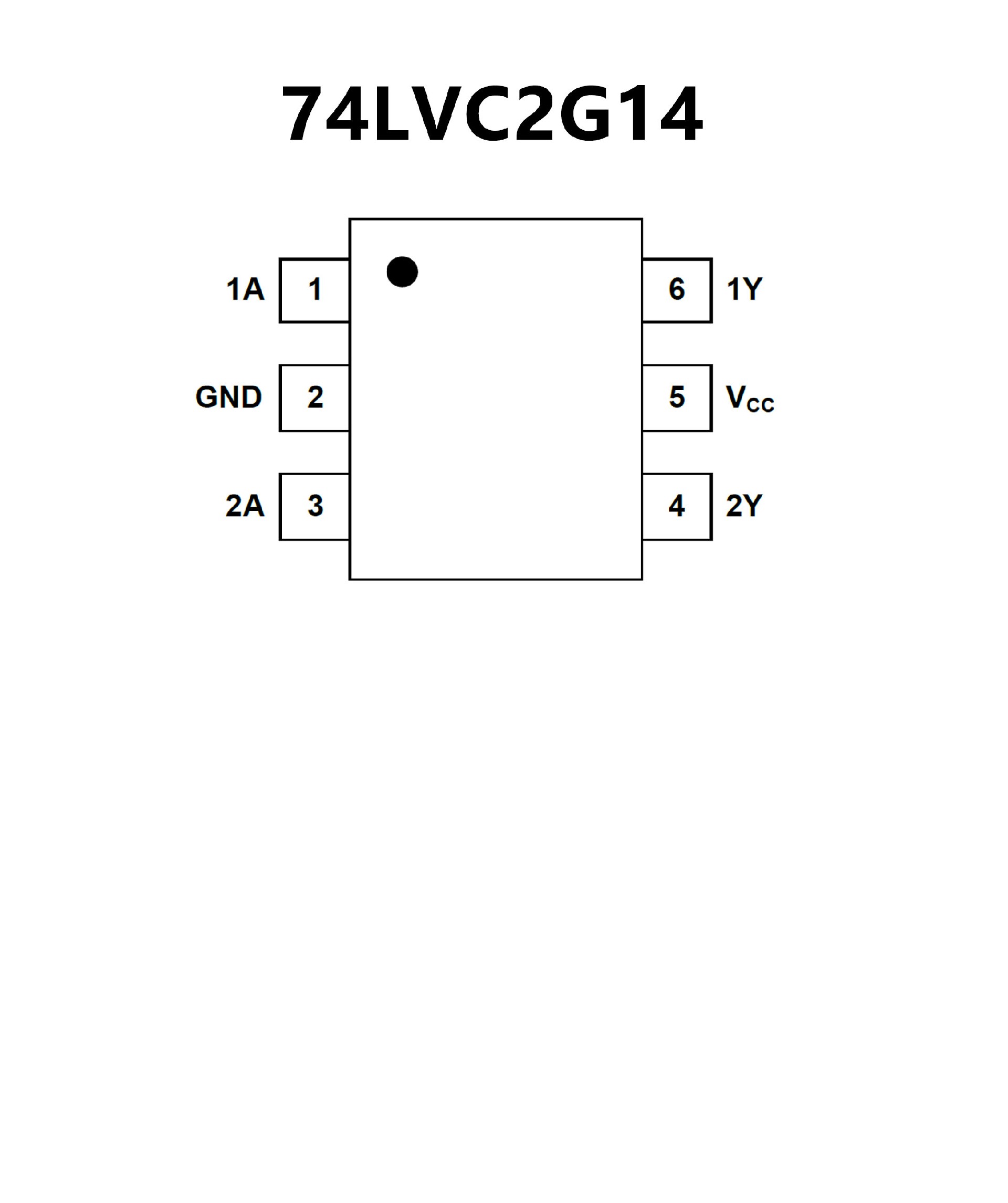

74LVC2G14.pdf• Wide Supply Voltage Range: 1.65V to 5.5V
• 5V Tolerant Inputs for Interfacing with 5V Logic
• High Noise Immunity
• ±24mA Output Drive at VCC = 3.0V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Unlimited Rise and Fall Times
• Inputs Accept Voltages up to 5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-6 Package

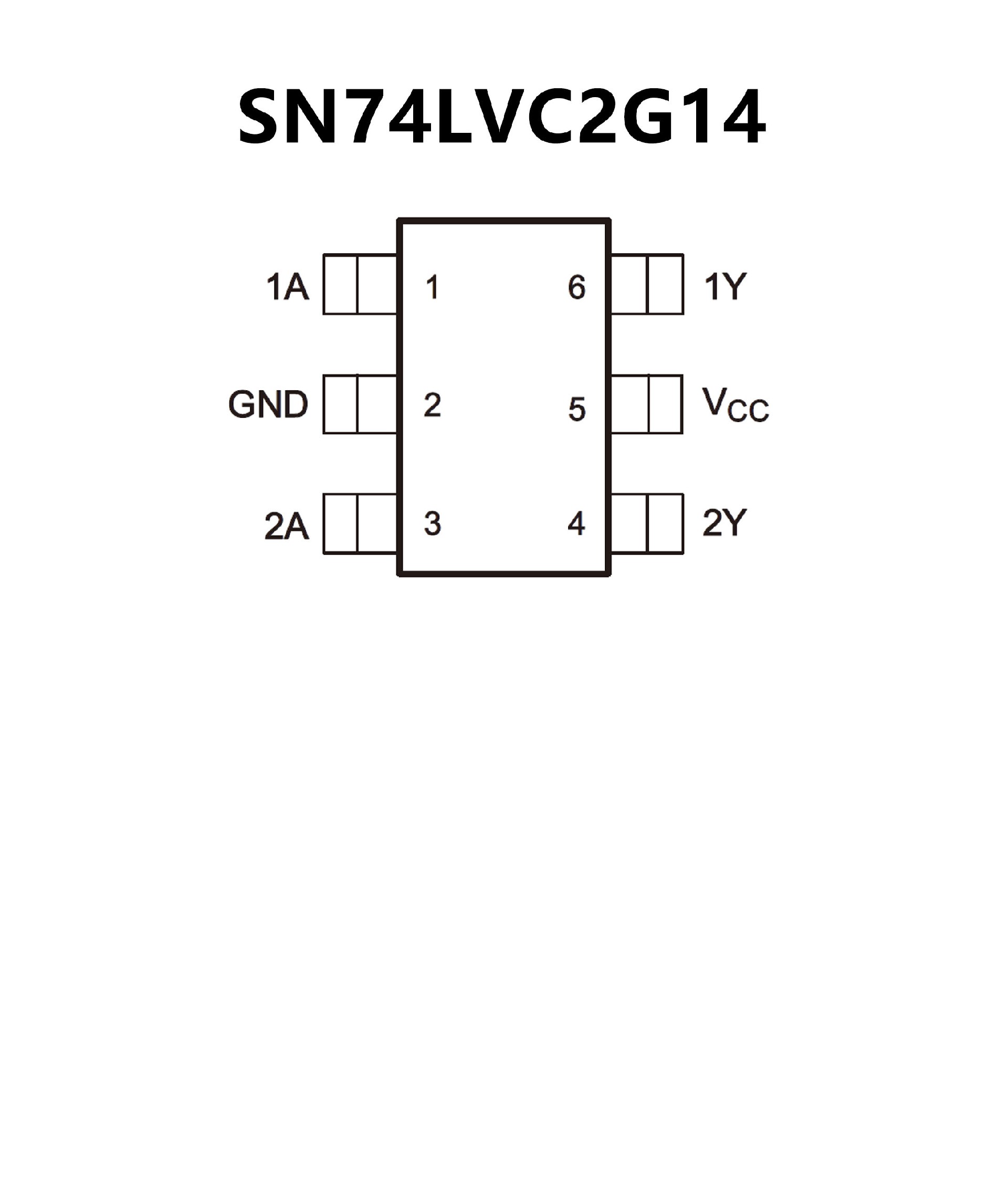

• Available in the TI NanoFree Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 5.4 ns at 3.3 V
• Low-Power Consumption, 10-μA Maximum ICC
• ±24-mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce)
<0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot)
2 V at VCC = 3.3 V, TA = 25°C
• Ioff Supports Live Insertion, Partial-Power-Down
Mode, and Back-Drive Protection
• Support Translation Down
(5 V to 3.3 V; 3.3 V to 1.8 V)
• Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
