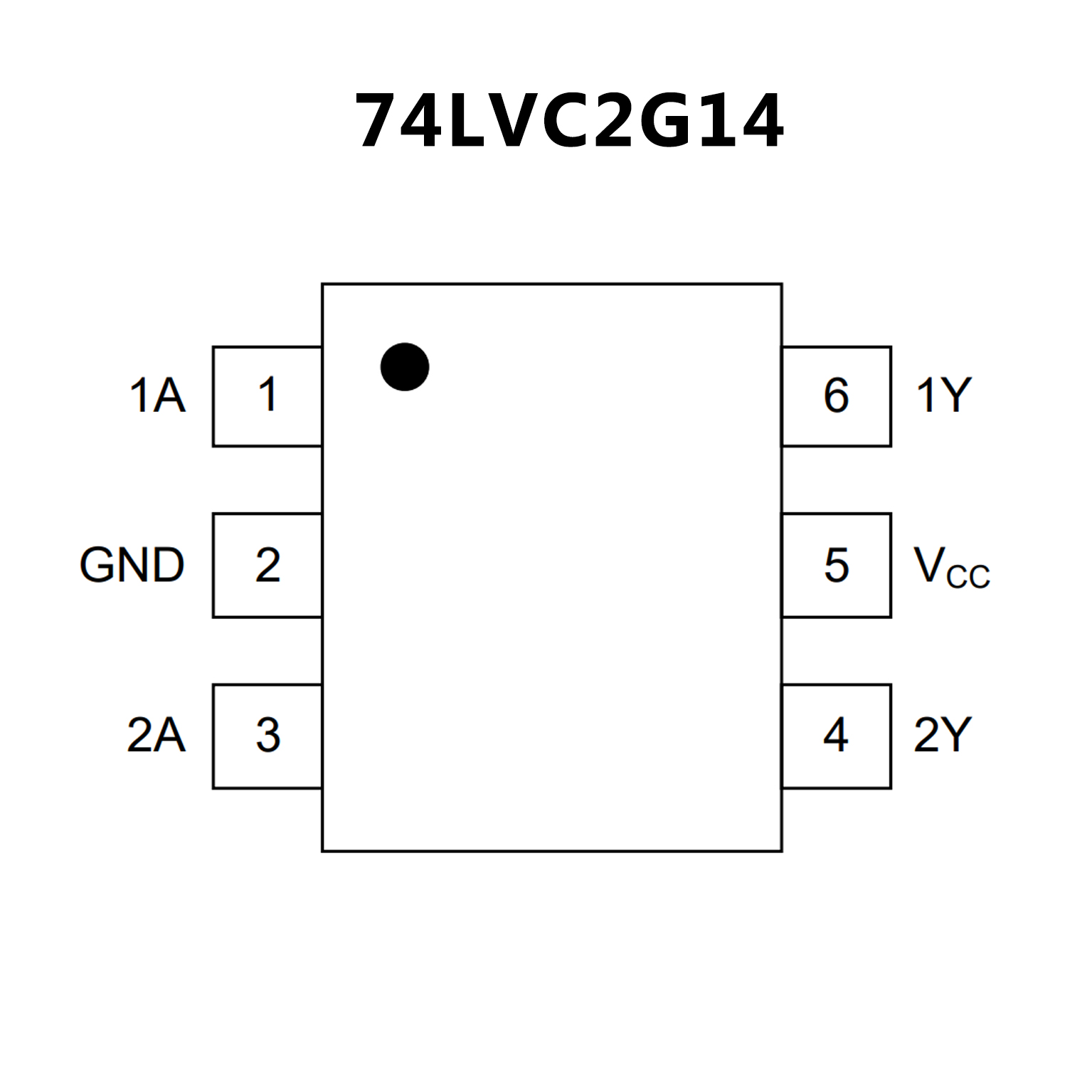

74LVC2G14.pdf• Wide Supply Voltage Range: 1.65V to 5.5V
• 5V Tolerant Inputs for Interfacing with 5V Logic
• High Noise Immunity
• ±24mA Output Drive at VCC = 3.0V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• Unlimited Rise and Fall Times
• Inputs Accept Voltages up to 5V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SC70-6 Package

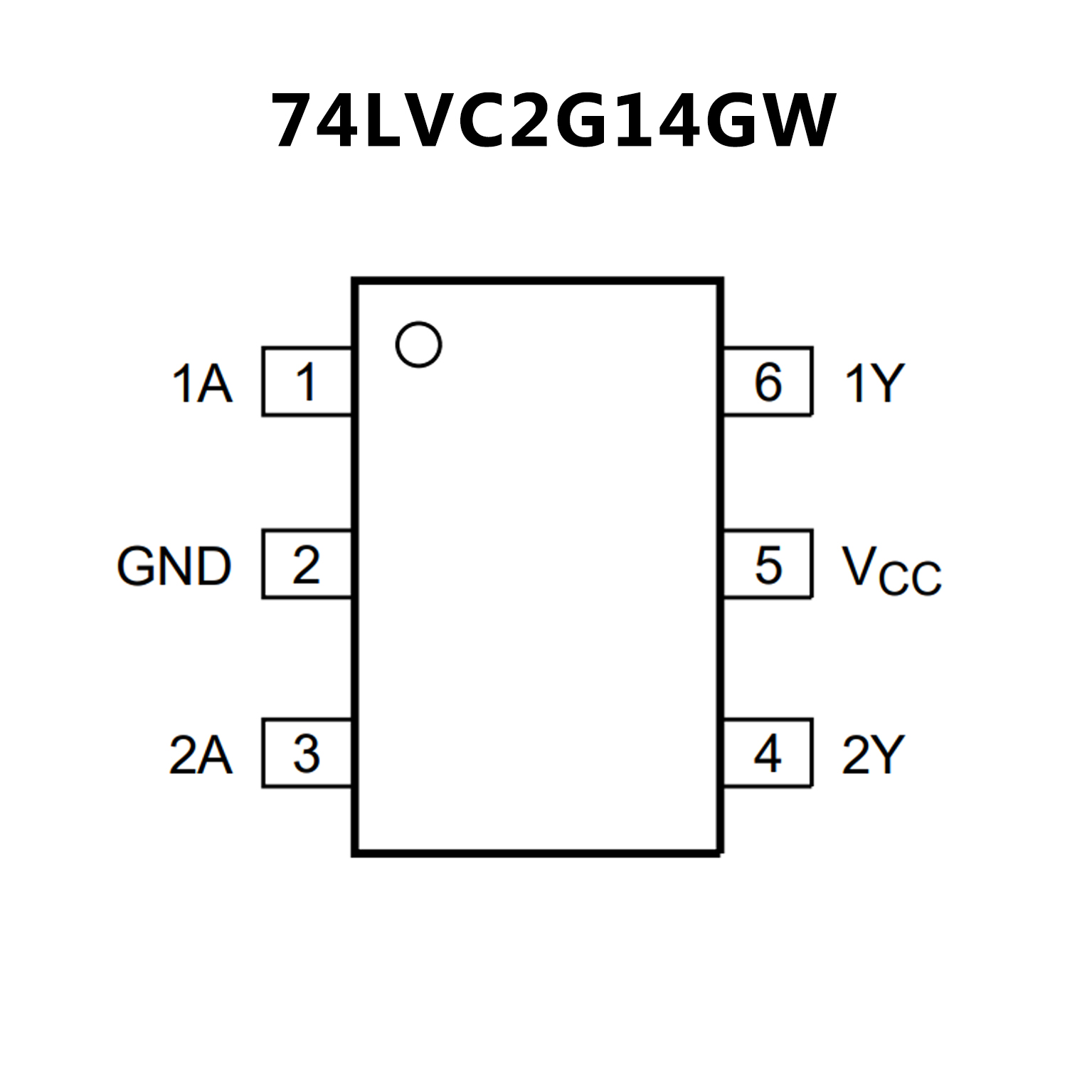

•Wide supply voltage range from 1.65 V to 5.5 V
• High noise immunity
• ±24 mA output drive (VCC = 3.0 V)
• CMOS low power dissipation
• Direct interface with TTL levels
• Unlimited rise and fall times
• Overvoltage tolerant inputs to 5.5 V
• IOFF circuitry provides partial Power-down mode operation
• Latch-up performance exceeds 250 mA
• Complies with JEDEC standard:
JESD8-7 (1.65 V to 1.95 V)
JESD8-5 (2.3 V to 2.7 V)
JESD8C (2.7 V to 3.6 V)
JESD36 (4.5 V to 5.5 V)
• ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 °C to +85 °C and -40 °C to +125 °C.
